Removal

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage Compartment): REMOVAL

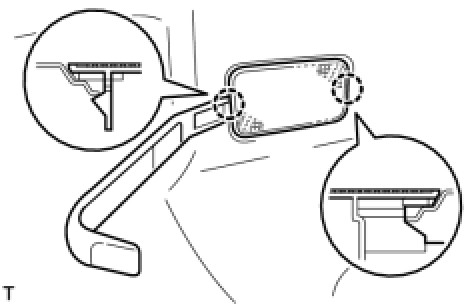

1. REMOVE ROOM LIGHT ASSEMBLY





(a) Using a moulding remover, disengage the 2 claws and remove the room light.

(b) Disconnect the connector.

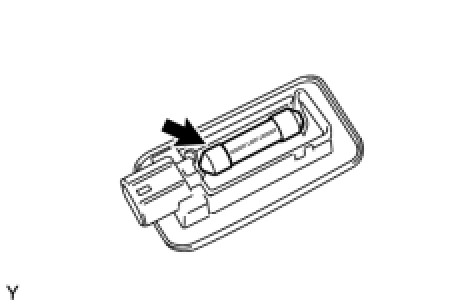

2. REMOVE NO. 2 ROOM LIGHT BULB

(a) Remove No. 2 room light bulb.
