Initialization

METER: METER / GAUGE SYSTEM: INITIALIZATION

1. MAINTENANCE REQUIRED REMINDER RESETTING PROCEDURE (for U.S.A.)

HINT

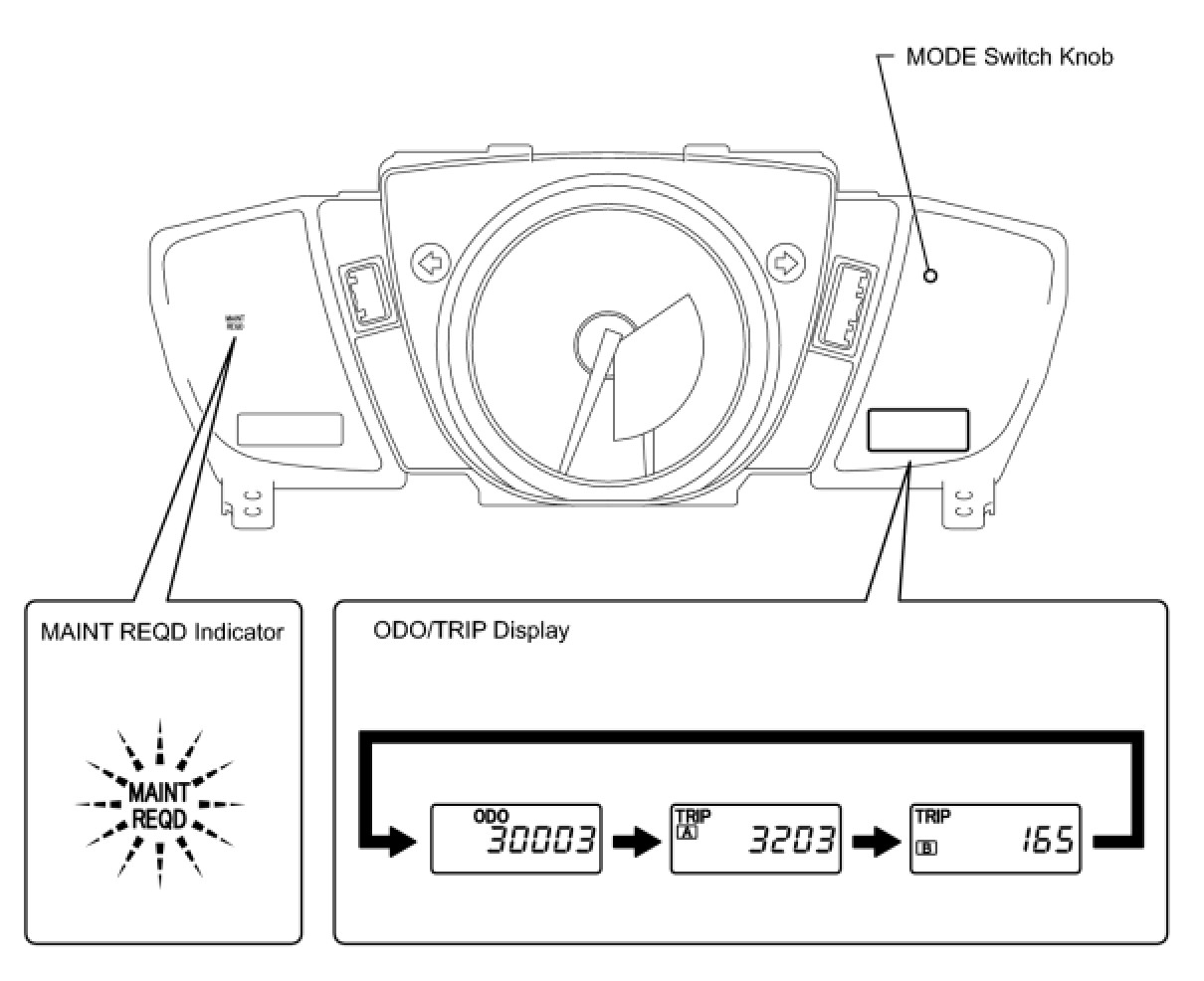

The trip meter reset knob is located on the upper right side of the combination meter assembly.

(a) Turn the ignition switch to ON.





(b) Press the MODE switch knob on the upper right side of the combination meter until the odometer displays "TRIP A".

(c) Turn the ignition switch off.

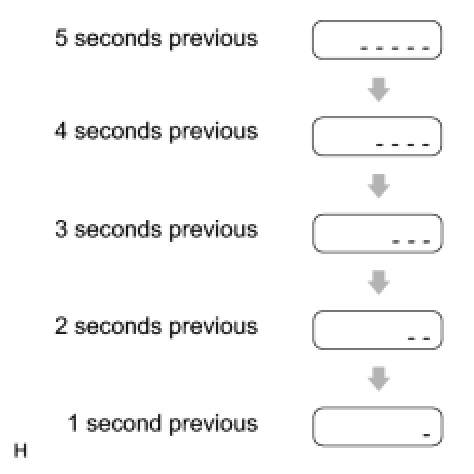

(d) Turn the ignition switch to ON while pressing and holding the MODE switch knob. The LCD counts down by the dashes for 5 seconds, as shown in the illustration, to complete the reset procedure.





(e) Release the MODE switch knob.

(f) After the reset procedure is complete, the LCD displays "000000" for 1 second. The LCD displays the odometer.

HINT
If the maintenance required reminder light was on before performing this reset procedure, the reminder light goes off at this point.

(g) Turn the ignition switch off.
