Parking Brake Warning Switch: Testing and Inspection

PARKING BRAKE: PARKING BRAKE SWITCH: INSPECTION

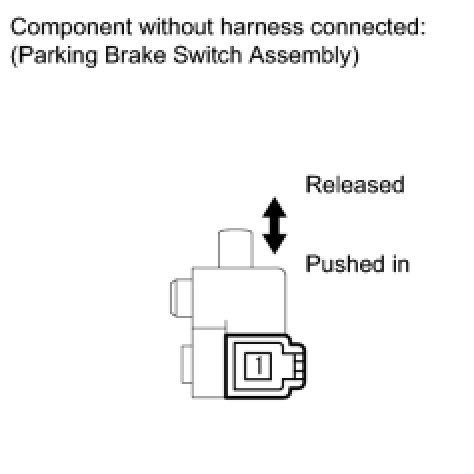

1. INSPECT PARKING BRAKE SWITCH ASSEMBLY

(a) Check the resistance.





(1) Measure the resistance according to the value(s) in the table below.

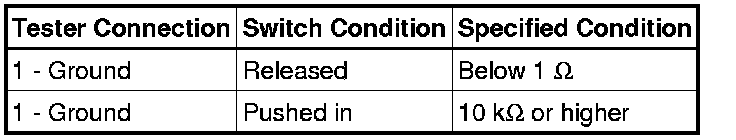

Standard resistance:





If the result is not as specified, replace the parking brake switch.
