Installation

METER: COMBINATION METER: INSTALLATION

1. INSTALL COMBINATION METER ASSEMBLY





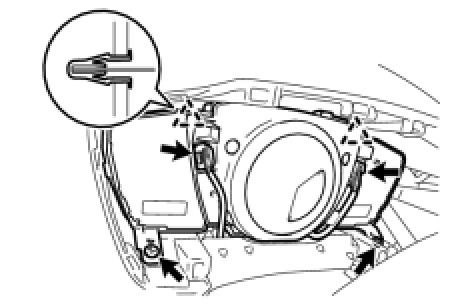

(a) Engage the 2 clips and install the combination meter.

(b) Install the 2 screws and connect the 2 connectors.

2. INSTALL INSTRUMENT CLUSTER FINISH PANEL

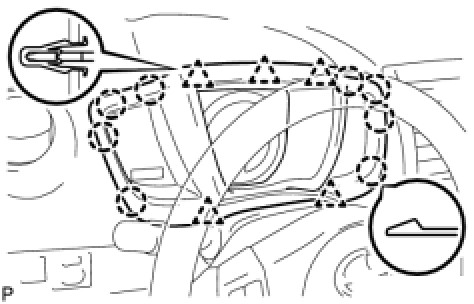

(a) Engage the 8 claws and the 5 clips and install the cluster finish panel.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
