Scion
>>
2012
>>
xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Description and Operation
>>
Meter / Gauge System
>>
System Diagram
System Diagram

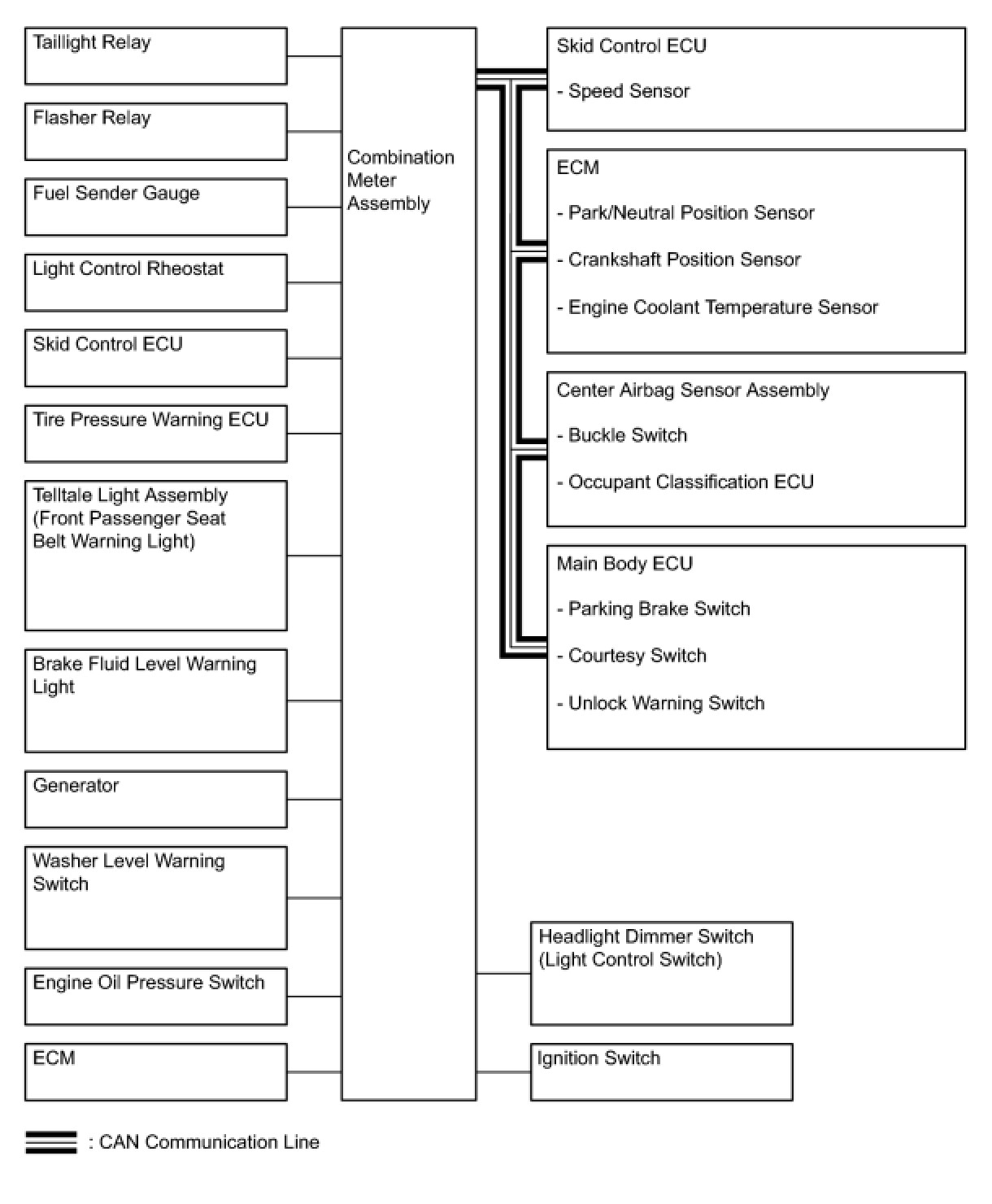

METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM
