Front Installation

AIR CONDITIONING: FRONT BLOWER RESISTOR: INSTALLATION

1. INSTALL FRONT BLOWER RESISTOR

(a) Install the blower resistor with the 2 screws.





(b) Connect the connector.

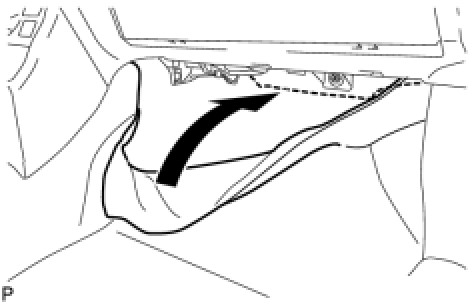

(c) Install the floor carpet.





2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
