Auxiliary Cabin Heater Housing: Testing and Inspection

AIR CONDITIONING: PTC HEATER ASSEMBLY: INSPECTION

1. INSPECT PTC HEATER ASSEMBLY

(a) Disconnect the connector from the PTC heater.

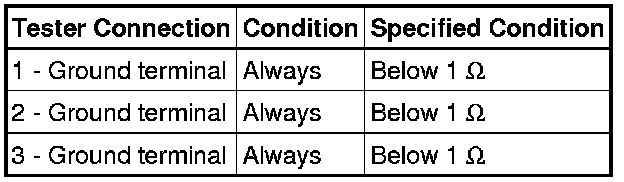

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the PTC heater assembly.
