Water Pump: Testing and Inspection

2ZR-FE COOLING: WATER PUMP: ON-VEHICLE INSPECTION

1. REMOVE ENGINE UNDER COVER RH

2. REMOVE NO. 2 CYLINDER HEAD COVER Removal

3. REMOVE FAN & GENERATOR V BELT Removal

4. INSPECT ENGINE WATER PUMP ASSEMBLY

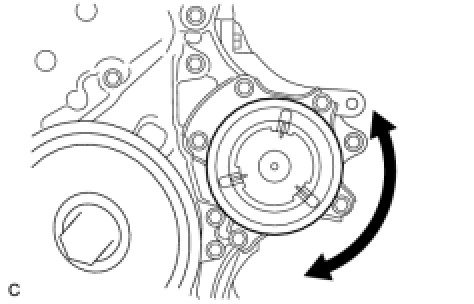

(a) Turn the pulley and check that the water pump bearing moves smoothly and quietly.





If necessary, replace the engine water pump assembly.

(b) Make sure that there are no drops of coolant on the water pump housing.

If necessary, replace the engine water pump assembly.

5. INSTALL FAN & GENERATOR V BELT Installation

6. ADJUST FAN & GENERATOR V BELT Installation

7. INSPECT FAN & GENERATOR V BELT Installation

8. INSTALL NO. 2 CYLINDER HEAD COVER Installation

9. INSTALL ENGINE UNDER COVER RH
