32-35 - Instrument Panel J/B Assembly Inner Circuit

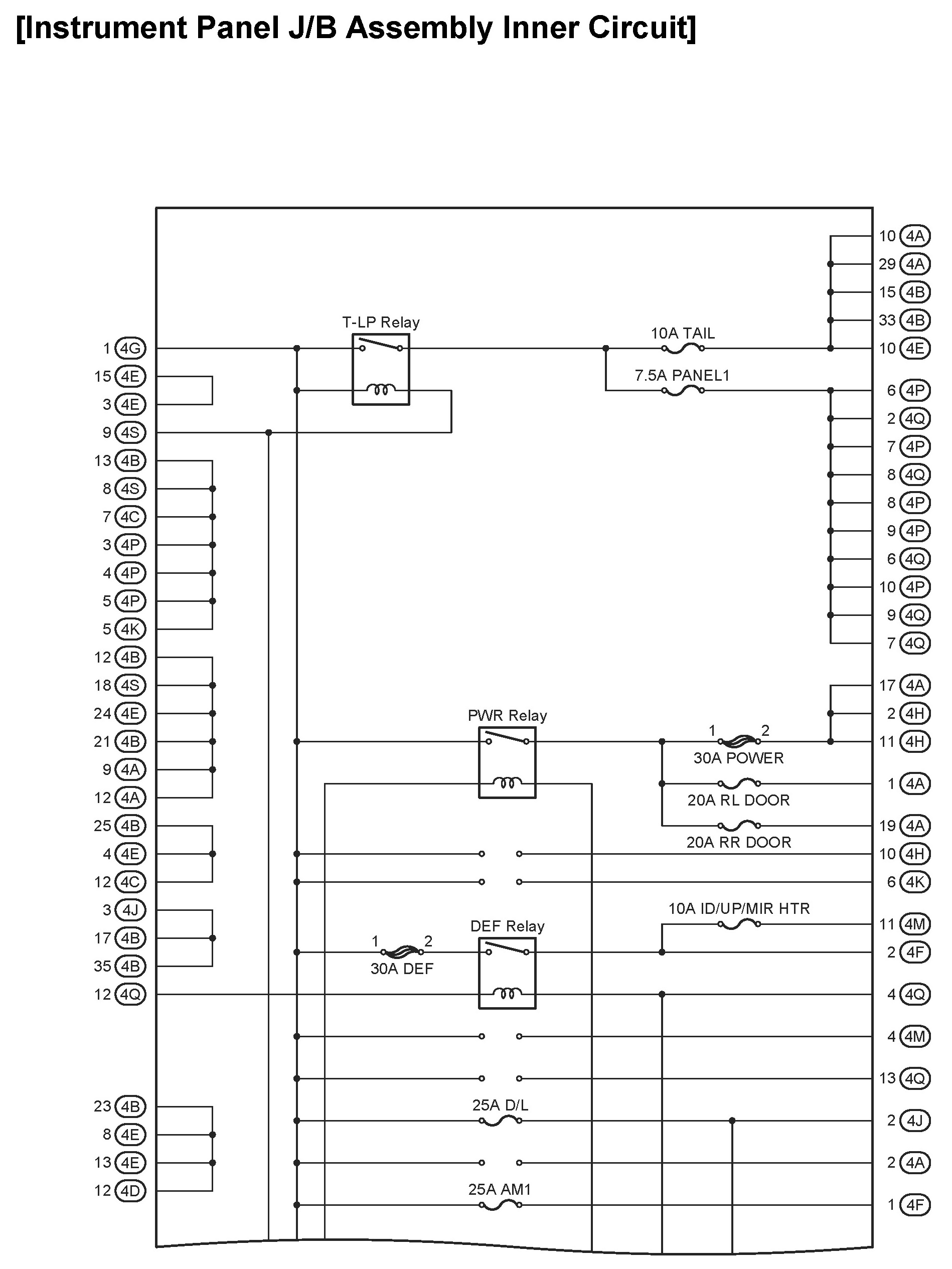

32 - Instrument Panel J/B Assembly Inner Circuit:

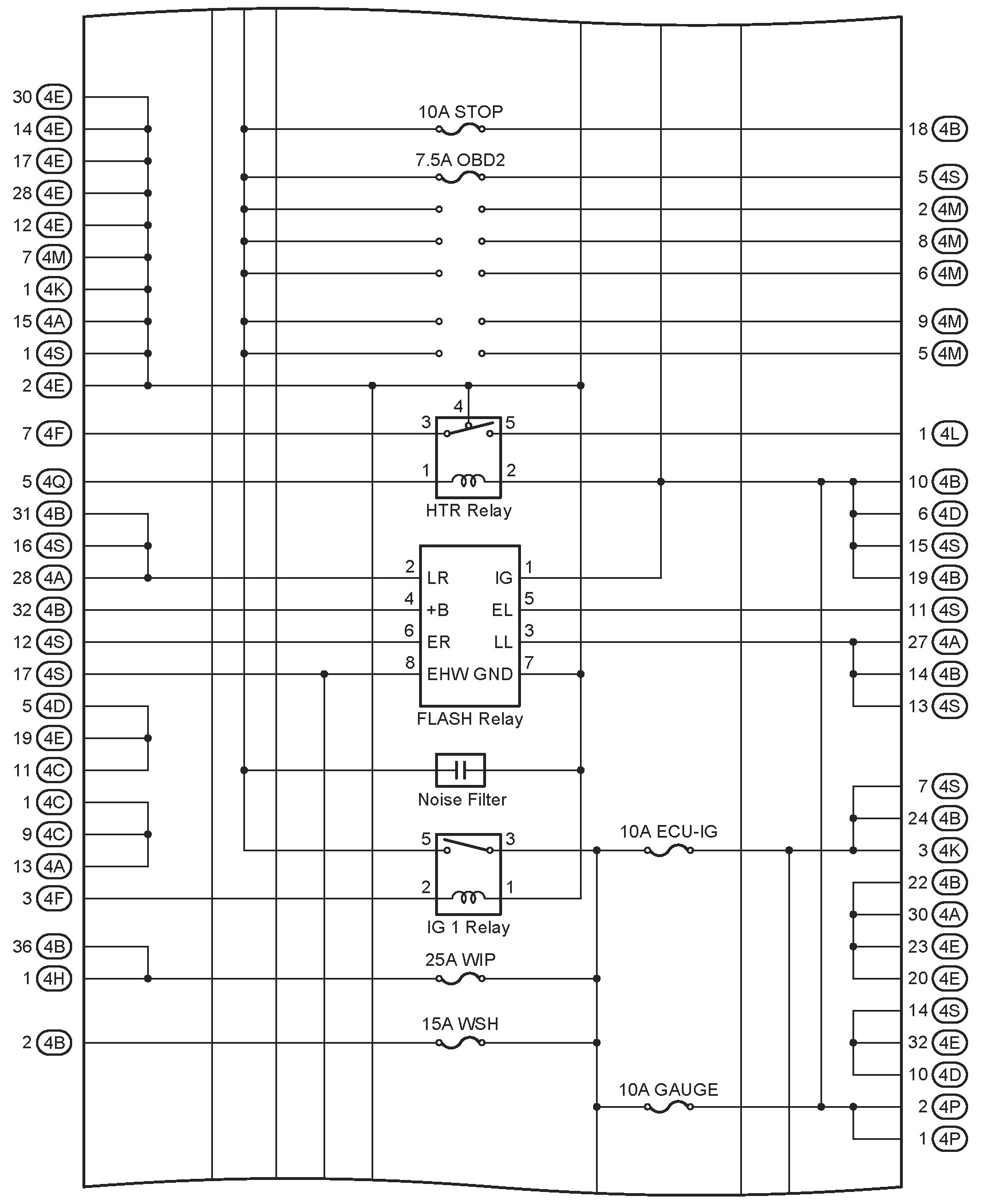

33 - Instrument Panel J/B Assembly Inner Circuit:

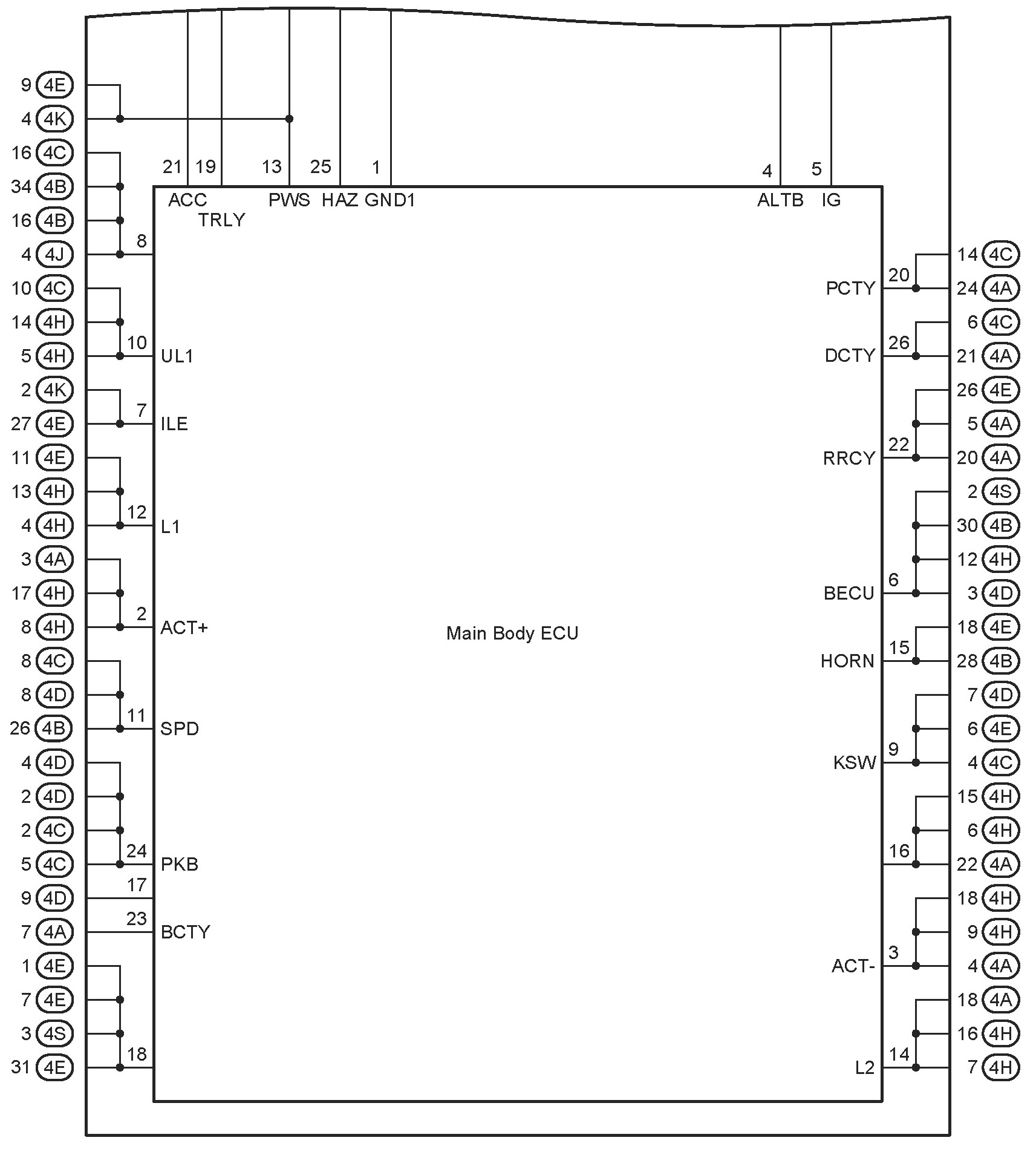

34 - Instrument Panel J/B Assembly Inner Circuit:

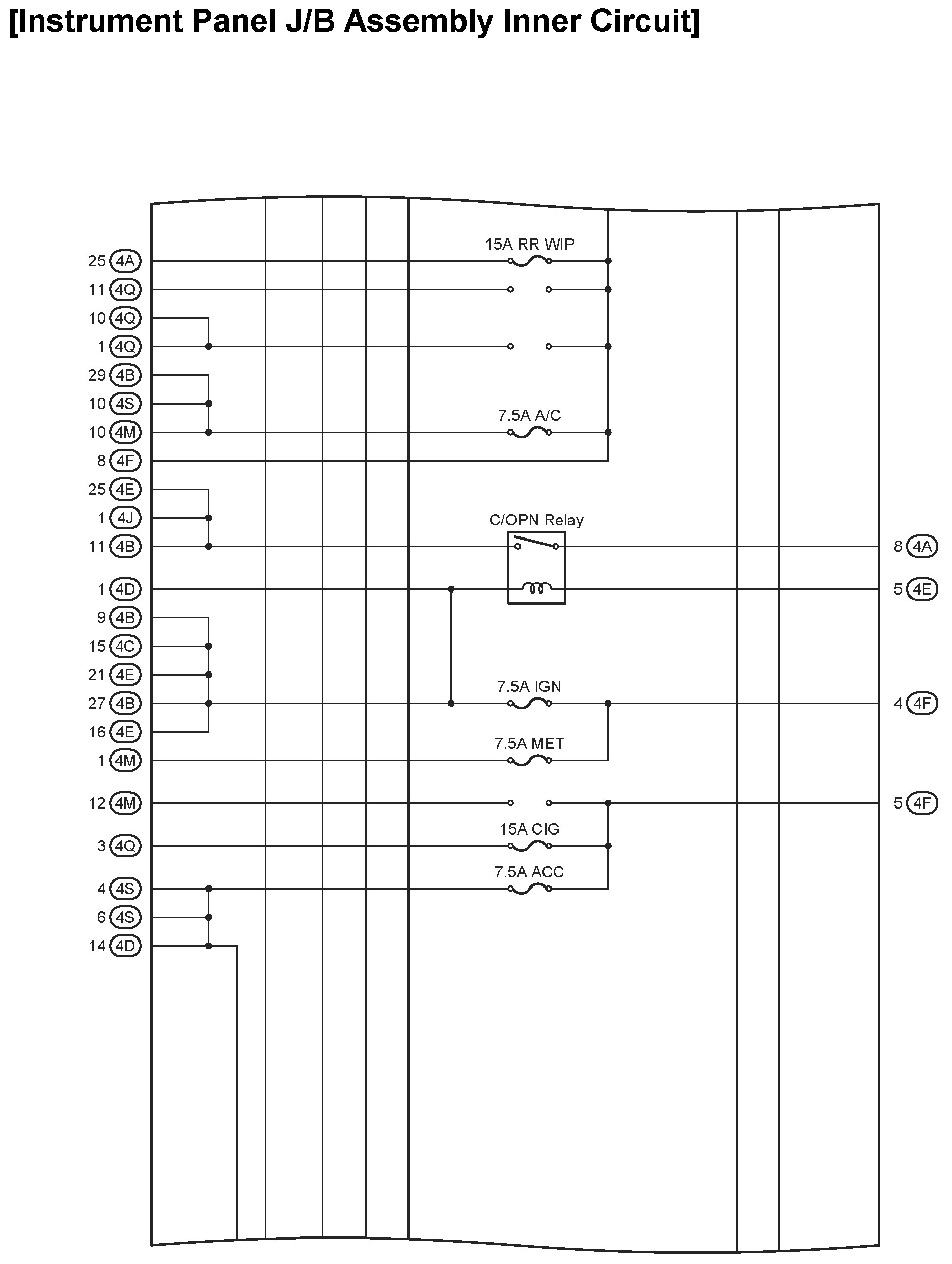

35 - Instrument Panel J/B Assembly Inner Circuit:
