24-25 - Engine Room R/B Assembly and Engine Room J/B Assembly Inner Circuit

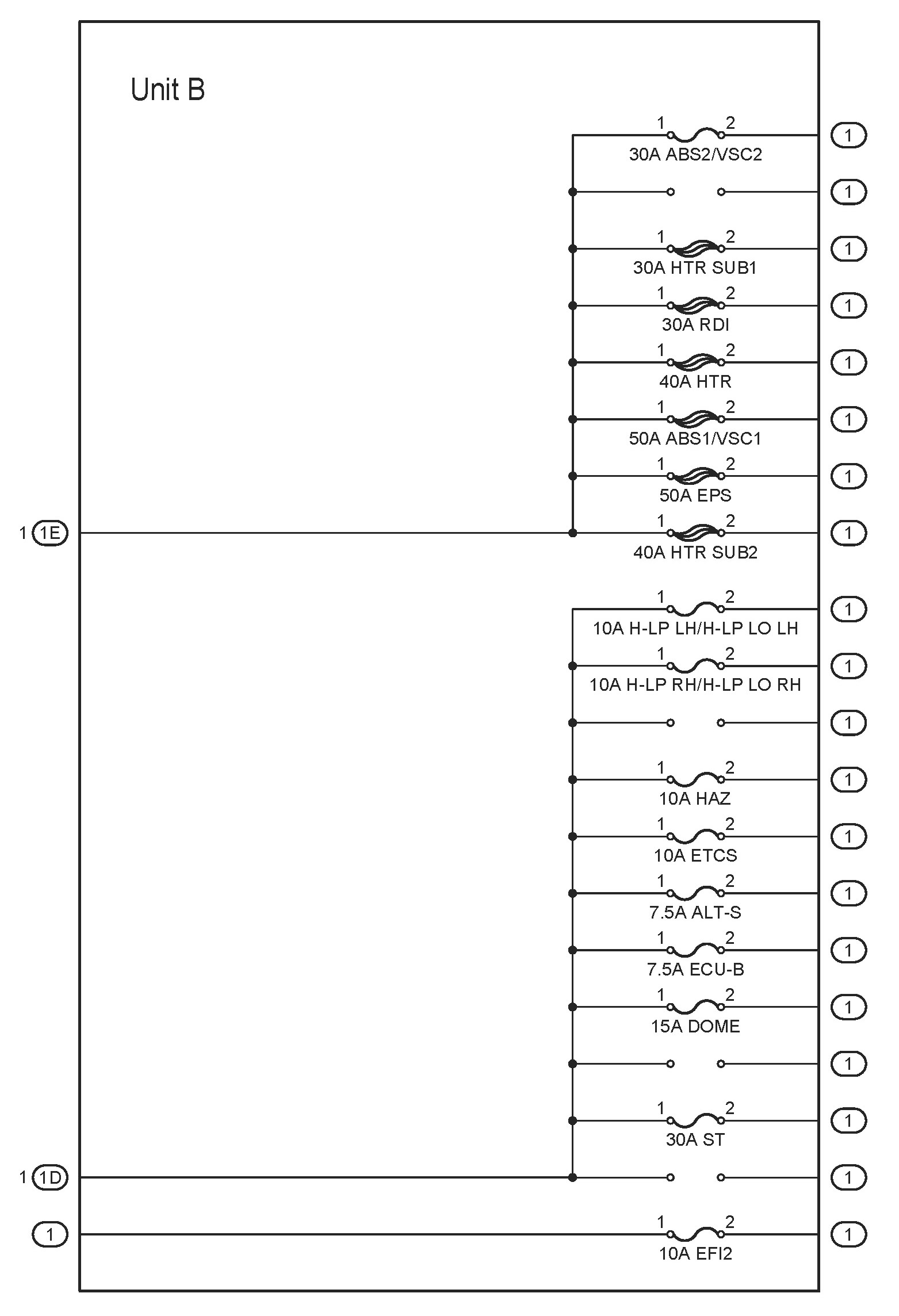

24 - Engine Room R/B Assembly and Engine Room J/B Assembly Inner Circuit:

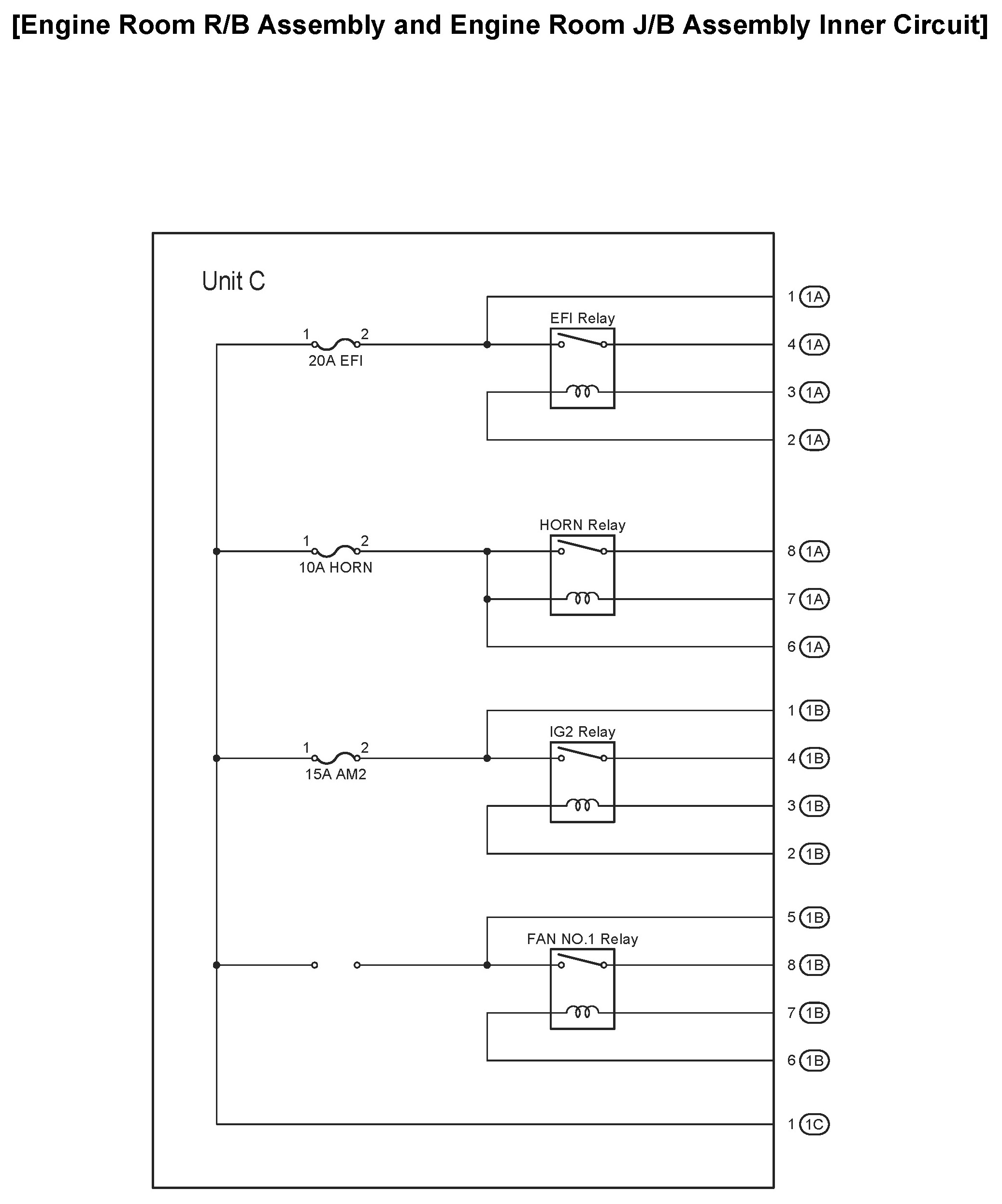

25 - Engine Room R/B Assembly and Engine Room J/B Assembly Inner Circuit:
