Home >> Scion >> 2012 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

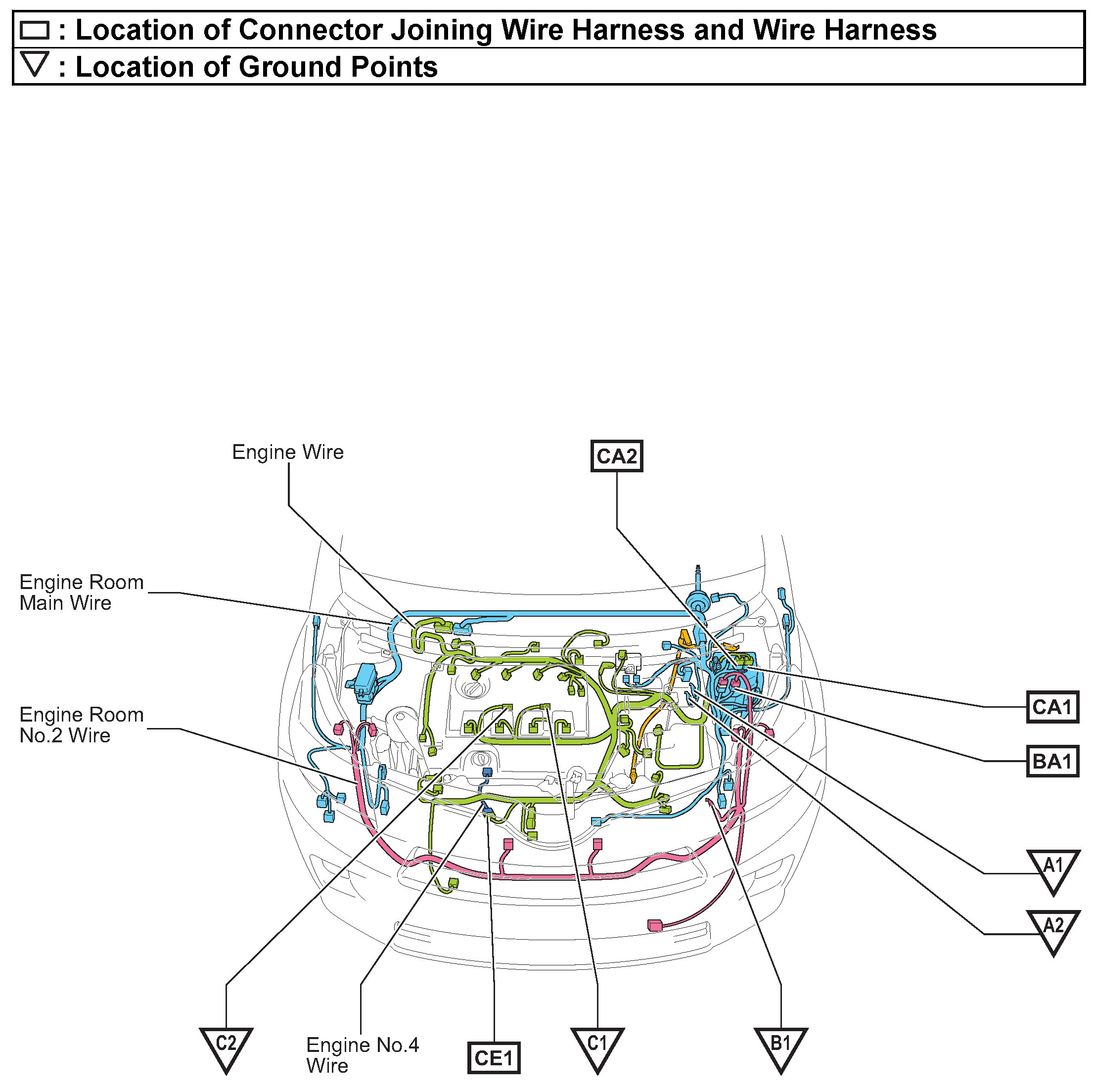

52 - A1-C2, BA1-CE1:

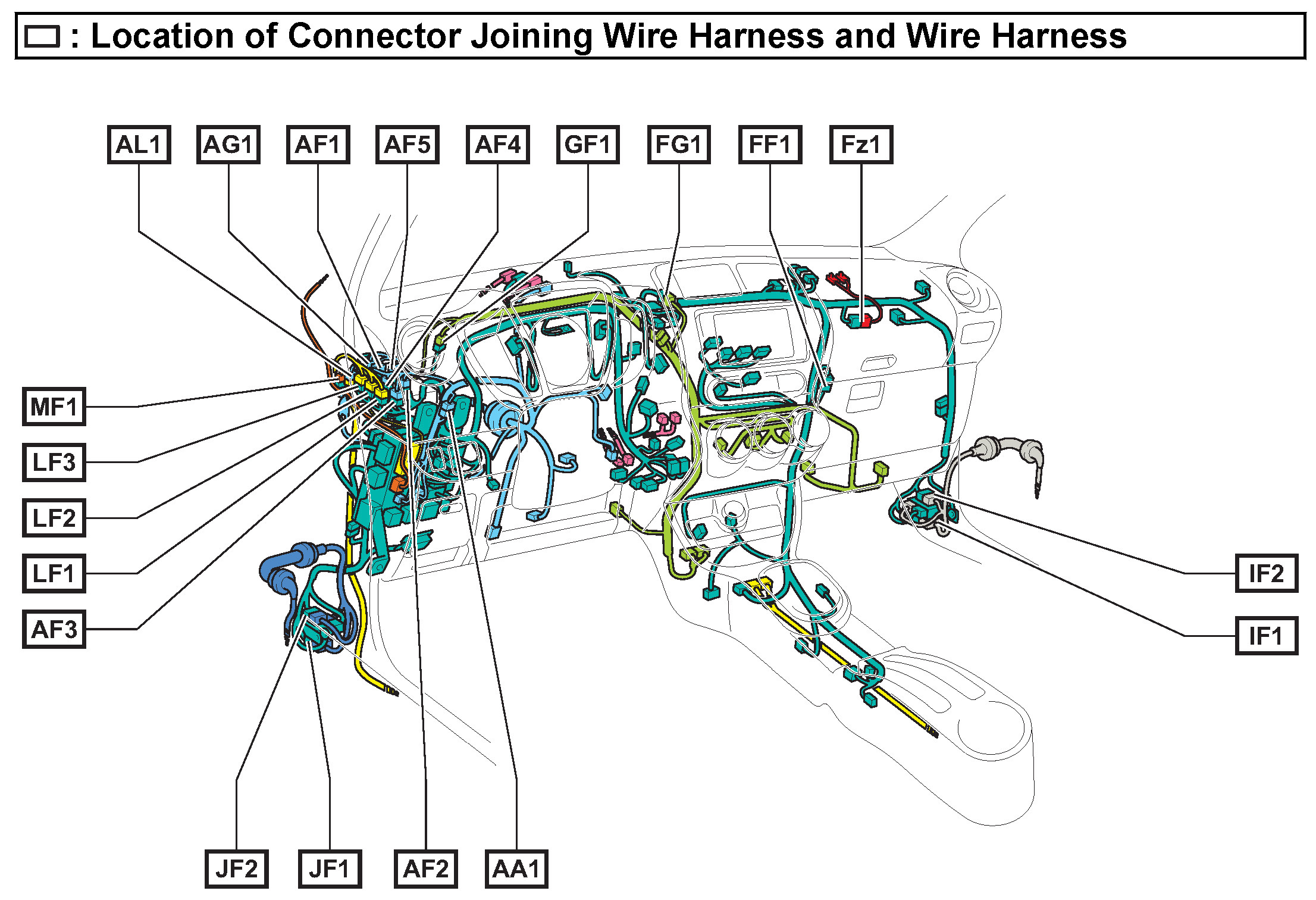

53 - AA1-MF1:

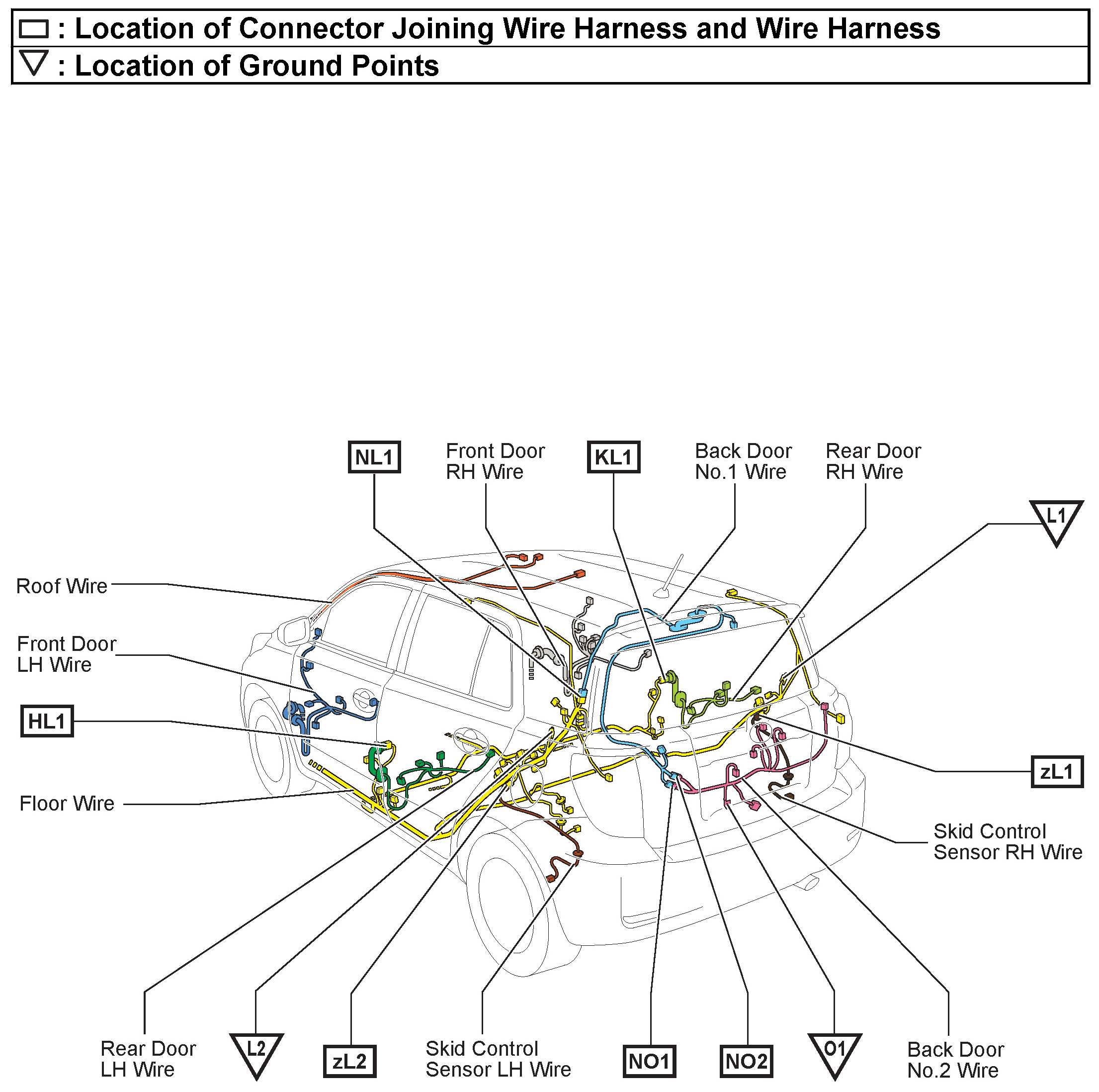

54 - L1-O1, HL1-zL2:

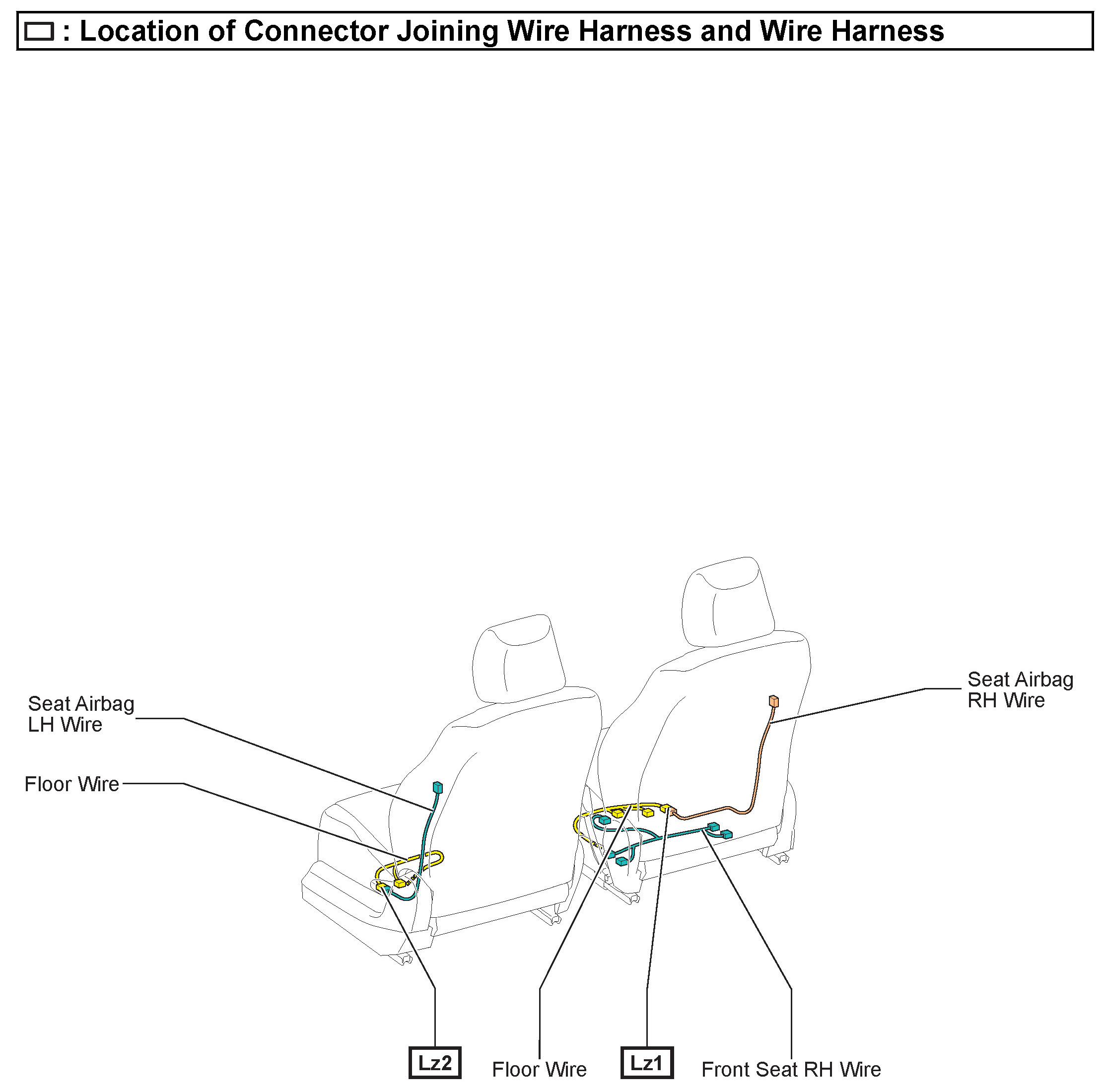

55 - Lz1-Lz2:
