48-49 - Position of Parts In Body
48-49 - Position of Parts In Body

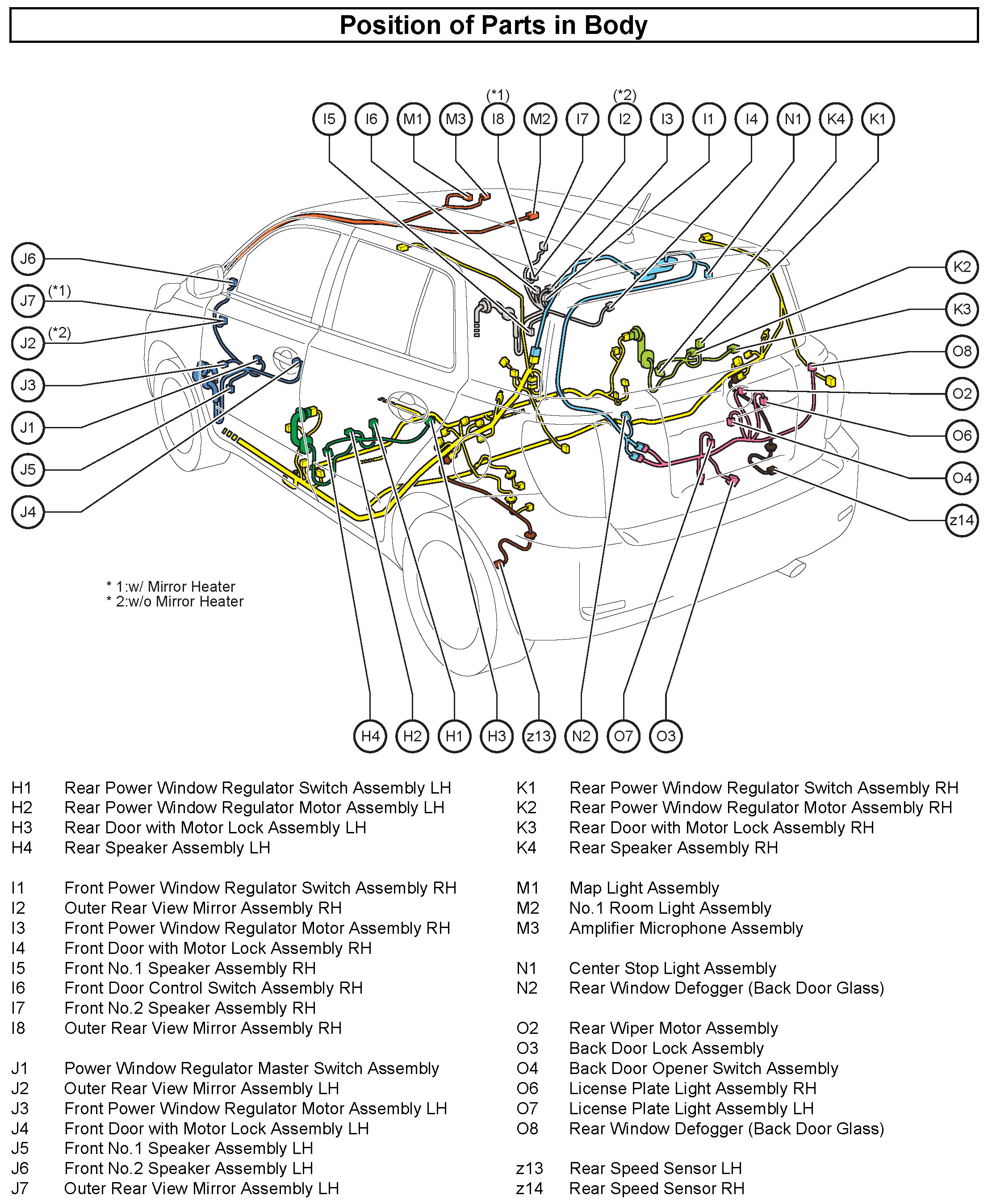

48 - Position of Parts in Body:

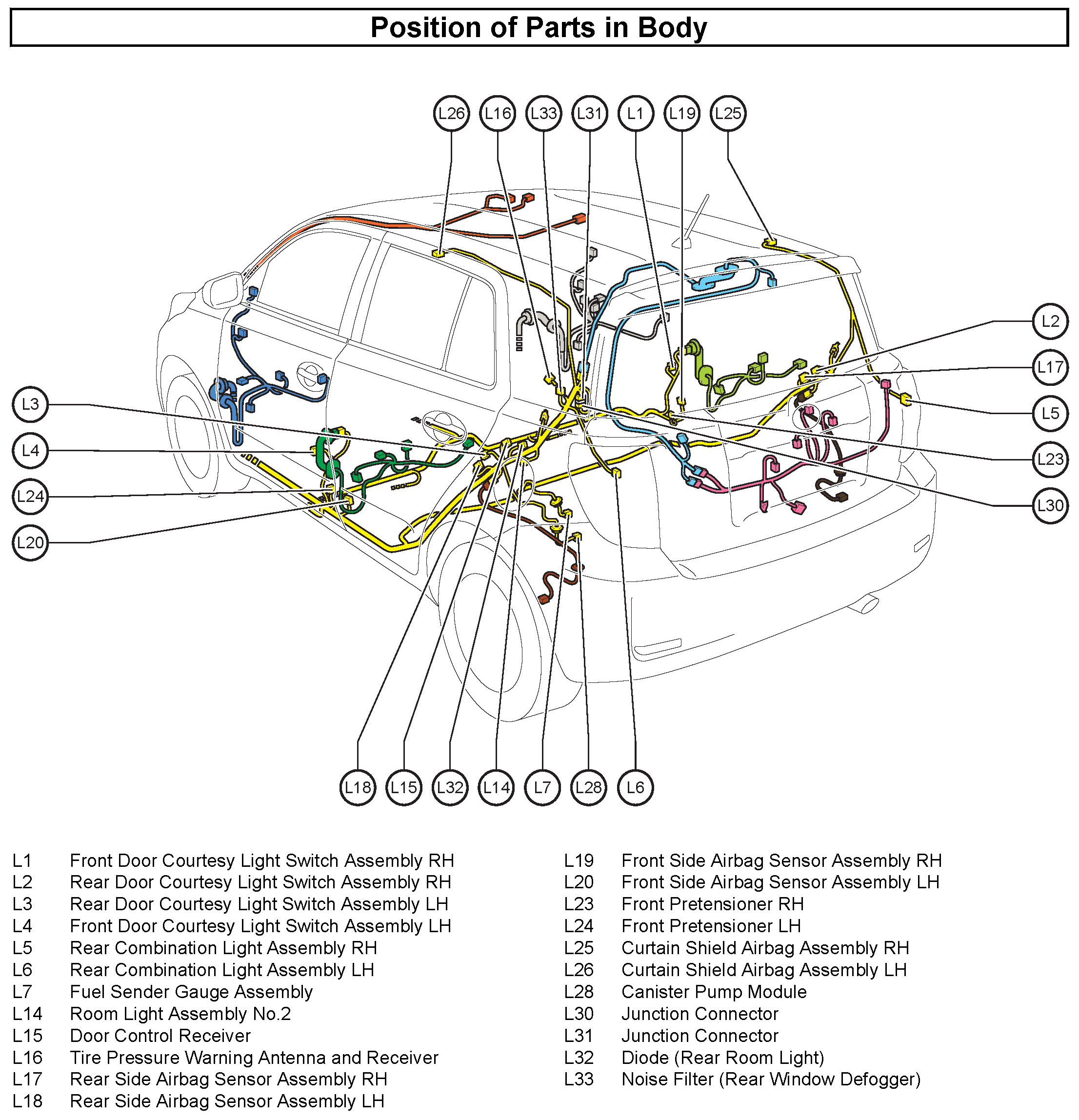

49 - Position of Parts in Body:
