46-47 - Position of Parts In Instrument Panel

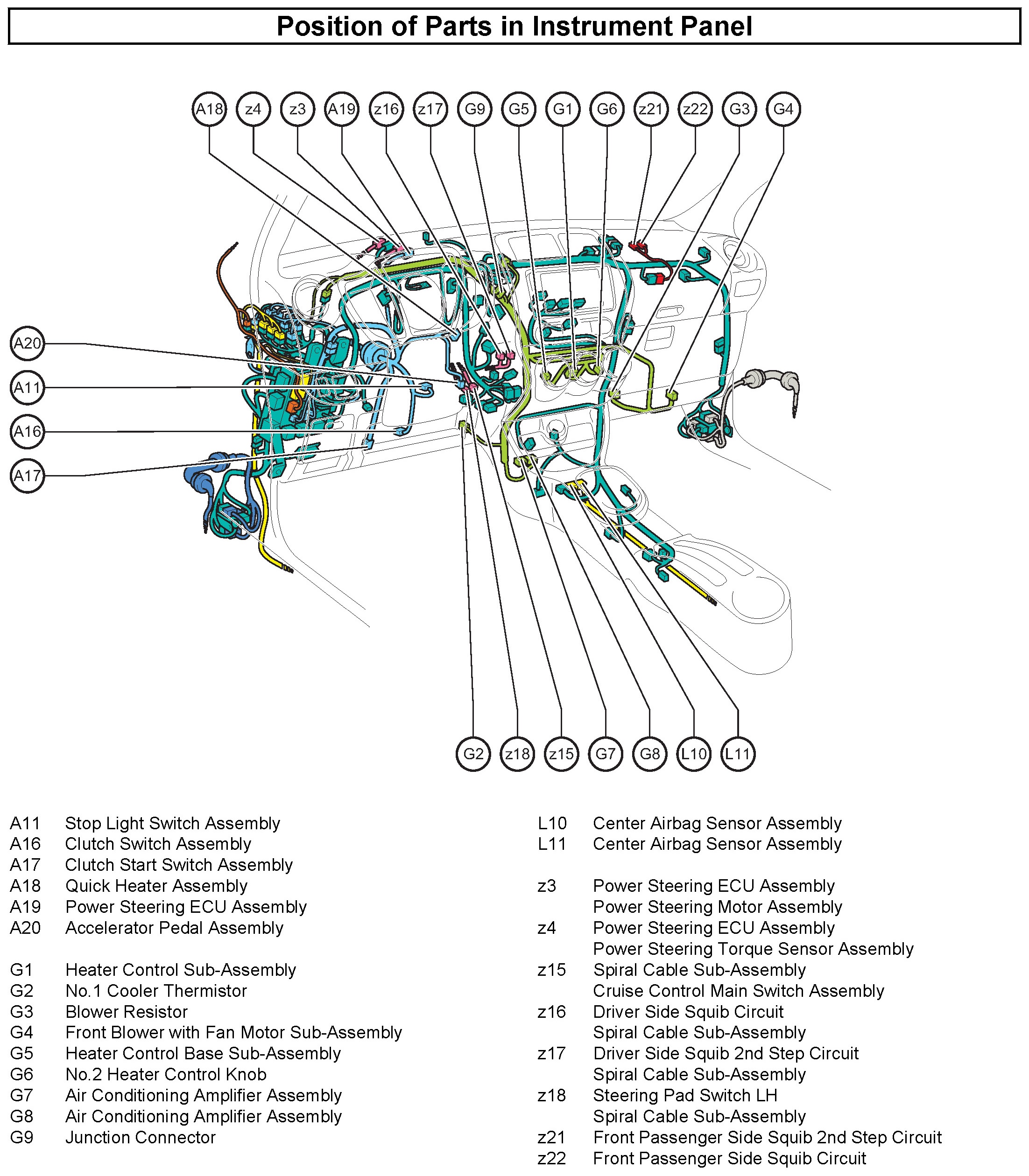

46 - Position of Parts in Instrument Panel:

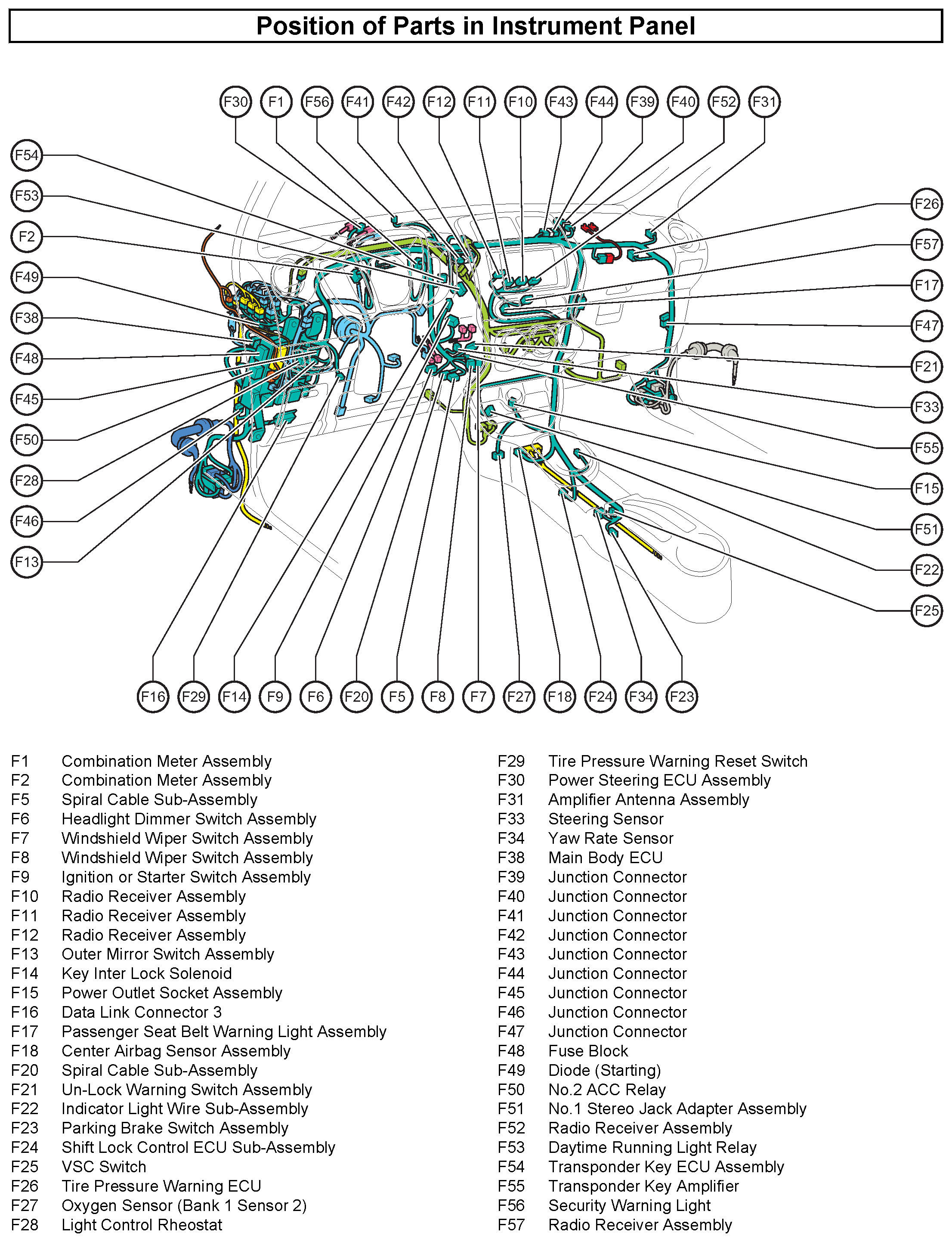

47 - Position of Parts in Instrument Panel:
