System Diagram

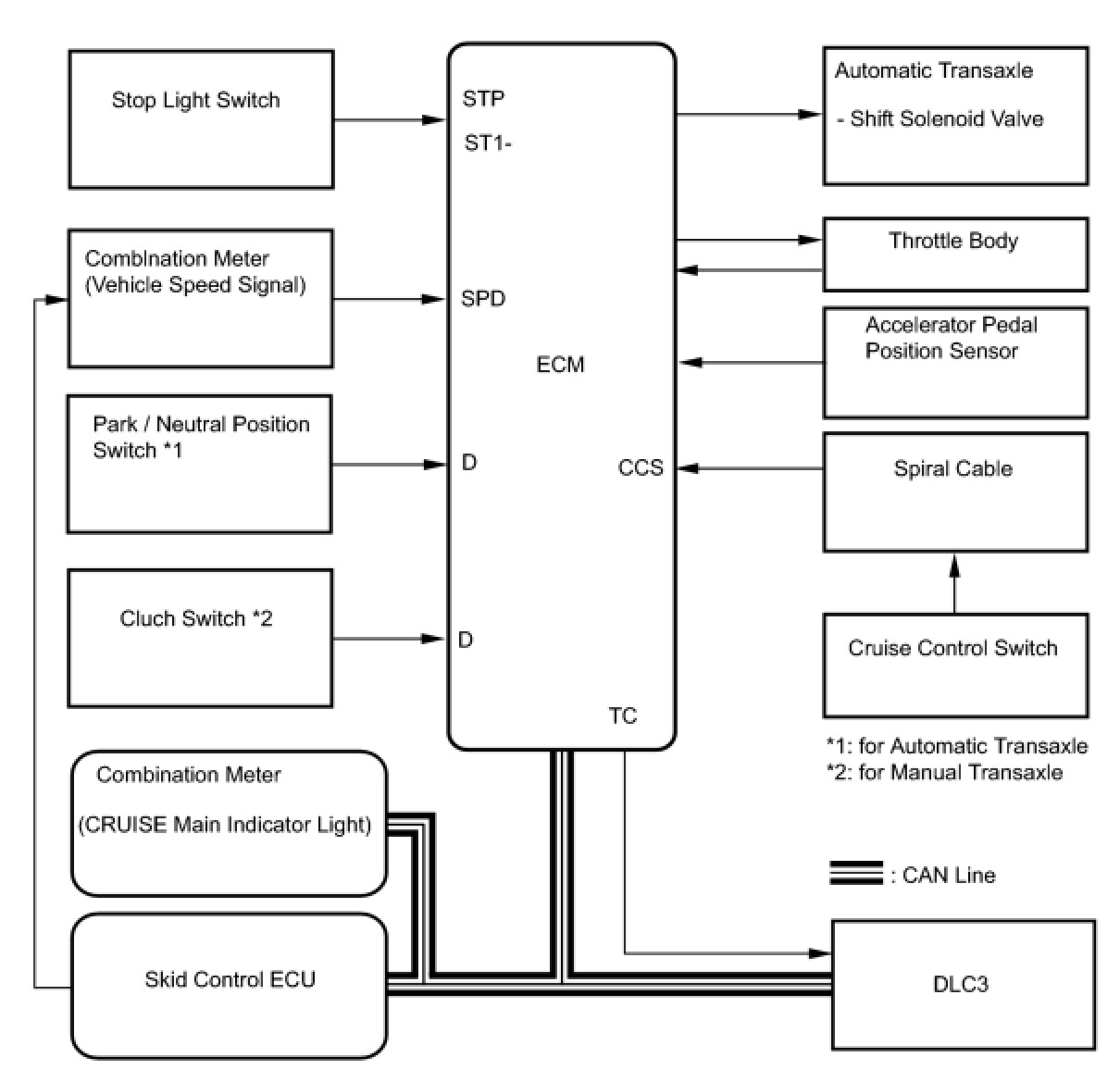

System Diagram
CRUISE CONTROL
: CRUISE CONTROL SYSTEM: SYSTEM DIAGRAM

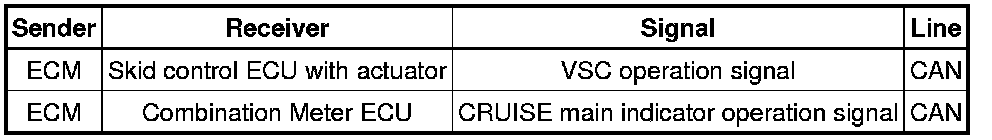

Communication Table:
