Installation

BRAKE: REAR BRAKE FLEXIBLE HOSE: INSTALLATION

1. INSTALL REAR BRAKE FLEXIBLE HOSE

(a) Install the flexible hose with 2 new clips onto the axle beam.

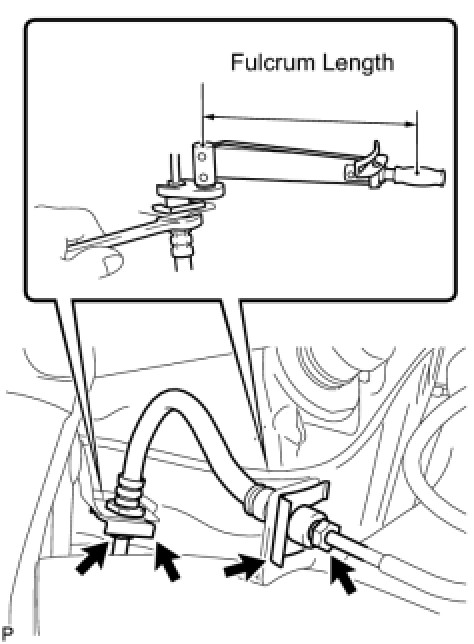

(b) Using a union nut wrench, install the 2 brake tubes onto the flexible hose while holding the flexible hose with a wrench.

without union nut wrench - Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

with union nut wrench - Torque : 14 Nm (144 kgf-cm, 10 ft-lbf)

NOTICE:
* This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) Service Precautions.
* This torque value is effective when the union nut wrench is parallel to a torque wrench.

2. FILL RESERVOIR WITH BRAKE FLUID Service and Repair

3. BLEED MASTER CYLINDER Service and Repair

4. BLEED BRAKE LINE Service and Repair

5. BLEED BRAKE ACTUATOR Service and Repair

6. CHECK FLUID LEVEL IN RESERVOIR Service and Repair

7. INSPECT FOR BRAKE FLUID LEAK

8. INSTALL REAR WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)
