BRAKE: FRONT BRAKE FLEXIBLE HOSE: INSTALLATION

1. INSTALL FRONT BRAKE FLEXIBLE HOSE

(a) Install the flexible hose with a new union bolt and a new gasket.





Torque : 30 Nm (310 kgf-cm, 22 ft-lbf)

HINT
Install the flexible hose lock securely into the lock hole in the disc brake cylinder.

(b) Install the flexible hose and speed sensor with the bolt.

Torque : 29 Nm (300 kgf-cm, 22 ft-lbf)

NOTICE:
Install the flexible hose and speed sensor without twisting them.

(c) Install the flexible hose with a new clip.

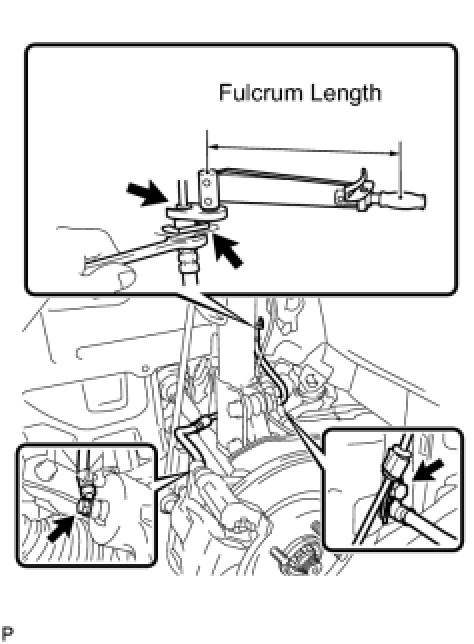

(d) Using a union nut wrench, install the brake tube to the flexible hose while holding the flexible hose with a wrench.

without union nut wrench - Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

with union nut wrench - Torque : 14 Nm (144 kgf-cm, 10 ft-lbf)

NOTICE:
* This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) Service Precautions.
* This torque value is effective when the union nut wrench is parallel to a torque wrench.

2. FILL RESERVOIR WITH BRAKE FLUID Service and Repair

3. BLEED MASTER CYLINDER Service and Repair

4. BLEED BRAKE LINE Service and Repair

5. BLEED BRAKE ACTUATOR Service and Repair

6. CHECK FLUID LEVEL IN RESERVOIR Service and Repair

7. INSPECT FOR BRAKE FLUID LEAK

8. INSTALL FRONT WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)
