VSC Off Indicator Light Does Not Come On

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: VSC OFF Indicator Light does not Come ON
- VSC OFF Indicator Light does not Come ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN communication.

Pressing the VSC OFF switch turns off traction control and pressing and holding this switch turns off traction and VSC controls. If VSC control turns OFF, the VSC OFF indicator light will come on.

WIRING DIAGRAM

Refer to VSC OFF Indicator Light Remains ON VSC Off Indicator Light Remains On.

INSPECTION PROCEDURE

NOTICE:
* When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

(a) Check if the CAN communication system DTC is output Diagnosis System.

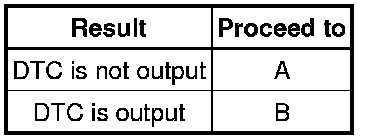

Result





B -- INSPECT CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch ON.

(c) Select the Data List on the Techstream Data List / Active Test.

ABS/VSC/TRAC

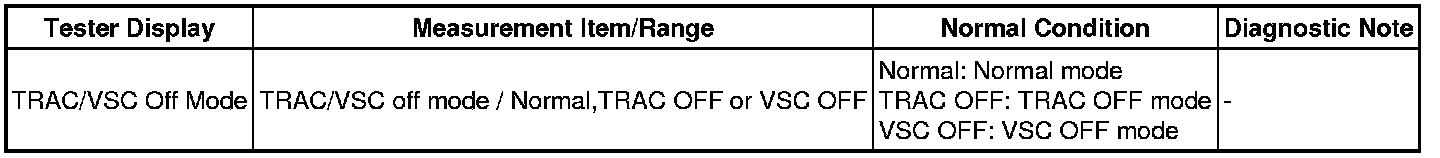

(d) Using the Techstream, check that the switch condition on the Techstream changes according to VSC OFF switch operation.

OK:

The Techstream display changes according to VSC OFF switch operation.

NG -- INSPECT VSC OFF SWITCH
OK -- Continue to next step.

3. INSPECT COMBINATION METER ASSEMBLY

(a) Connect a Techstream to the DLC3.

(b) Perform Active Test of the combination meter using the Techstream Meter / Gauge System.

OK:

The VSC OFF indicator light turns ON or OFF in accordance with the Techstream.

NG -- REPLACE COMBINATION METER ASSEMBLY Removal

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal

4. INSPECT VSC OFF SWITCH

(a) Turn the ignition switch off.

(b) Disconnect the VSC OFF switch connector.

(c) Measure the resistance according to the value(s) in the table below.

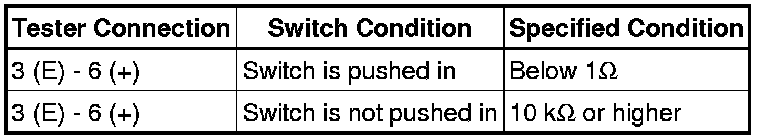

Standard Resistance:





Text in Illustration





NG -- REPLACE VSC OFF SWITCH Removal
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - VSC OFF SWITCH)

(a) Disconnect the skid control ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

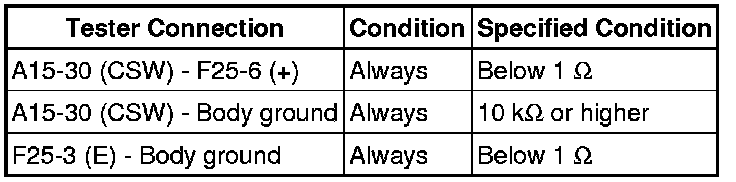

Standard Resistance:





HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
