Slip Indicator Light Does Not Come on

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: Slip Indicator Light does not Come ON
- Slip Indicator Light does not Come ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN communication.

WIRING DIAGRAM

Refer to Slip Indicator Light Remains ON Slip Indicator Light Remains on.

INSPECTION PROCEDURE

NOTICE:
* When replacing the brake actuator assembly, perform zero point calibration and store system information Programming and Relearning.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

(a) Check if the CAN communication system DTC is output Diagnosis System.

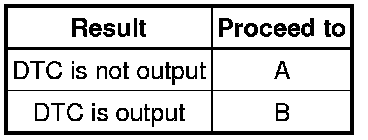

Result





B -- INSPECT CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM (SLIP INDICATOR LIGHT)

(a) Connect the Techstream to the DLC3.

(b) Start the engine.

(c) Select the Active Test on the Techstream Data List / Active Test.

ABS/VSC/TRAC





(d) Check that the slip indicator light on the combination meter turns on or off in accordance with the Techstream operation.

OK:

The slip indicator light turns on or off in accordance with the Techstream.

NG -- INSPECT COMBINATION METER ASSEMBLY

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal

3. INSPECT COMBINATION METER ASSEMBLY

(a) Turn the ignition switch off.

(b) Perform Active Test of the combination meter (meter CPU) using the Techstream Meter / Gauge System.

(c) Check the combination meter.

OK:

The slip indicator light turns ON or OFF in accordance with the Techstream.

NG -- REPLACE COMBINATION METER ASSEMBLY Removal

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
