Installation

MIRROR: OUTER REAR VIEW MIRROR GLASS: INSTALLATION

1. INSTALL OUTER MIRROR GLASS

(a) Connect the connector.

HINT
If the vehicle is equipped with mirror heater, connect the connector.

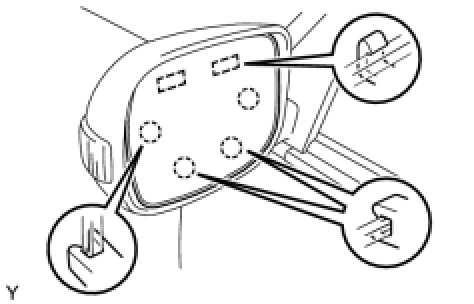

(b) Engage the 2 hooks on the upper part of the outer mirror glass to the outer rear view mirror.





(c) Engage the 4 claws on the lower part of the outer mirror glass to the outer rear view mirror.

(d) Remove the protective tape.
