Scion
>>
2012
>>
xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Service and Repair
>>
Components
Components
ENGINE
HOOD

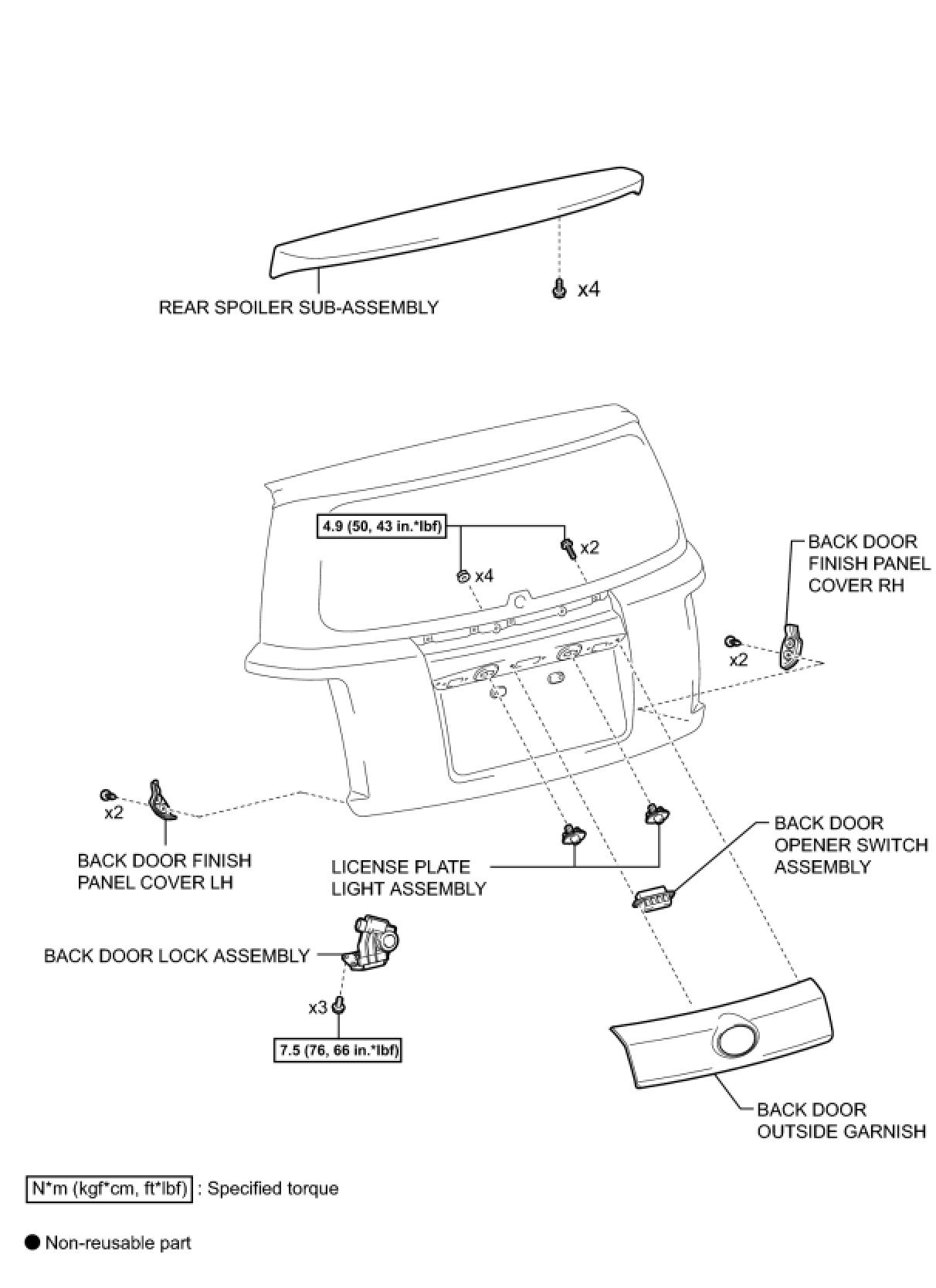

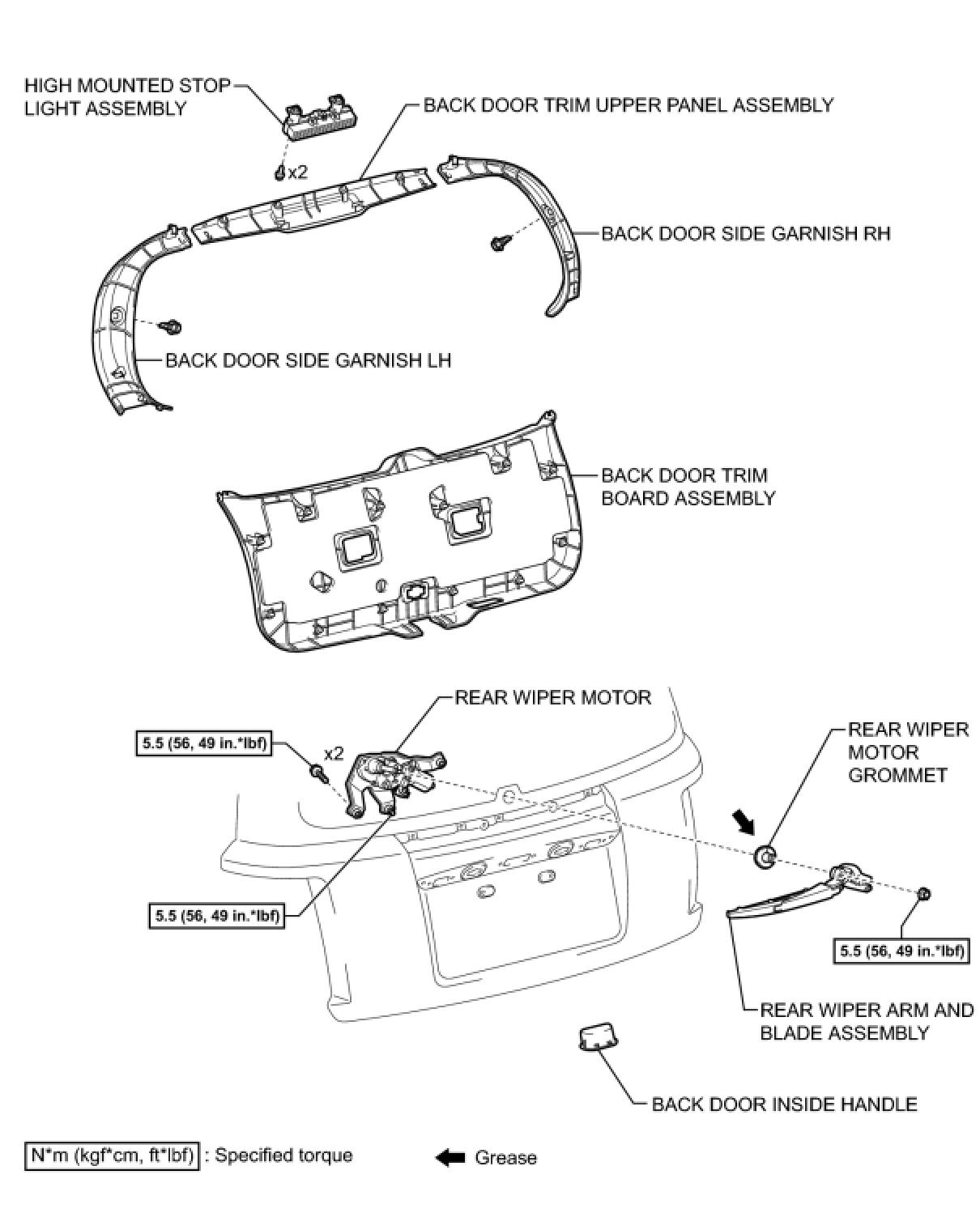

/ DOOR: BACK DOOR: COMPONENTS
