Installation

AUDIO / VISUAL: FRONT DOOR SPEAKER: INSTALLATION

HINT
The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

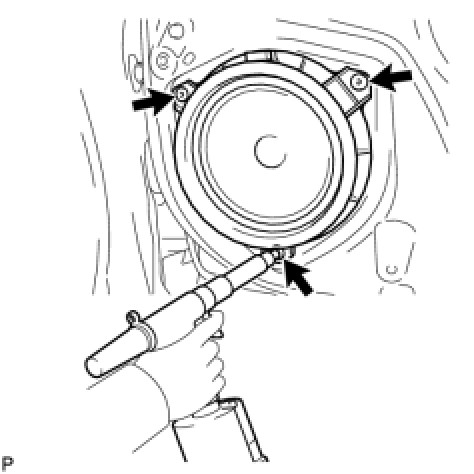

(a) Using an air riveter or hand riveter, install the front No. 1 speaker with 3 new strike rivets.





HINT
Install the new strike rivets in the order shown in the illustration.

NOTICE:





* Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
* Confirm that the rivets are seated properly against the speaker.

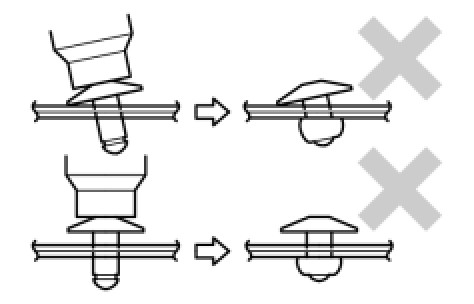

* Do not tilt the riveter when installing the rivet to the speaker.
* Do not leave any space between the rivet head and speaker.
* Do not leave any space between the speaker and door. Firmly hold together the 2 items while installing the rivet.






(b) Connect the connector.





2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly

3. INSTALL FRONT DOOR INSIDE HANDLE BEZEL Reassembly

4. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY





(a) Engage the 3 claws and install the front No. 2 speaker.

5. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH Reassembly

6. INSTALL FRONT DOOR ARMREST BASE UPPER PANEL Reassembly
