ECU Power Source Circuit

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: ECU Power Source Circuit
- ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the transponder key ECU assembly.

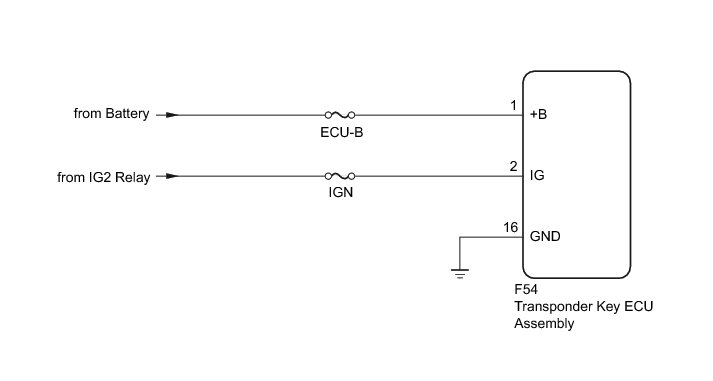

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* If the transponder key ECU assembly is replaced, register the key and ECU communication ID Programming and Relearning.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU ASSEMBLY - BATTERY AND BODY GROUND)

(a) Disconnect the F54 transponder key ECU assembly connector.





(b) Measure the voltage and resistance according to the value(s) in the table below.

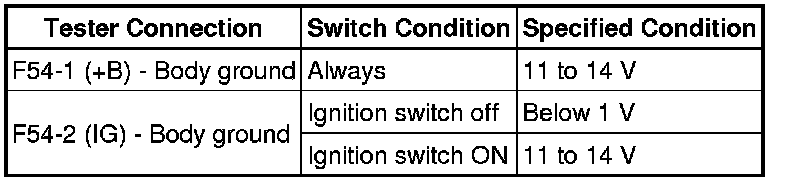

Standard Voltage:





Standard Resistance:





Text in Illustration





(c) Reconnect the transponder key ECU assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR, OR REPLACE FUSE

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures
