Home >> Scion >> 2012 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Transmitter >> Locations

Keyless Entry Transmitter: Locations

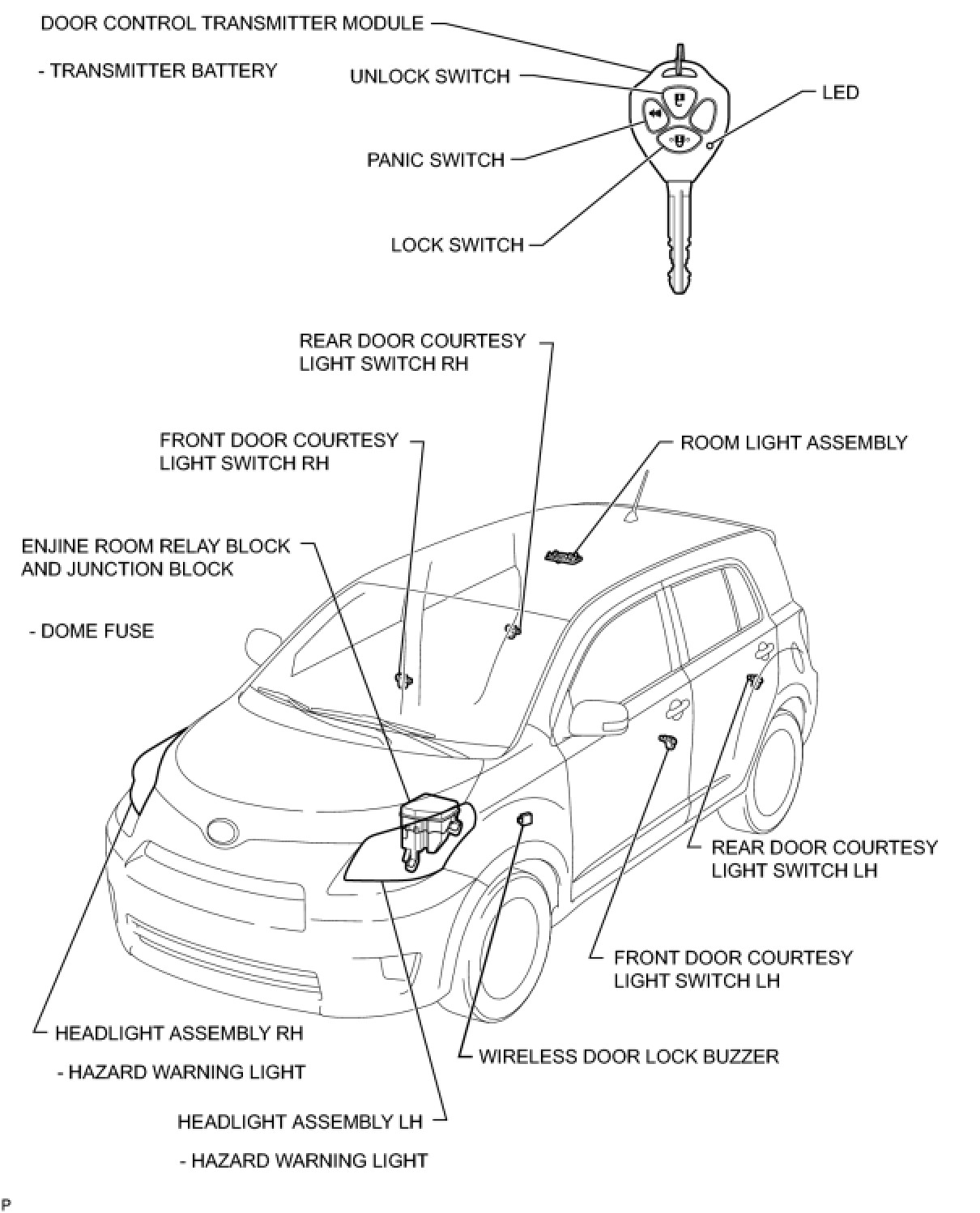

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: PARTS LOCATION
