SFI System





2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
Parameters listed in the chart may be different from your readings depending on the type of instrument and other factors.

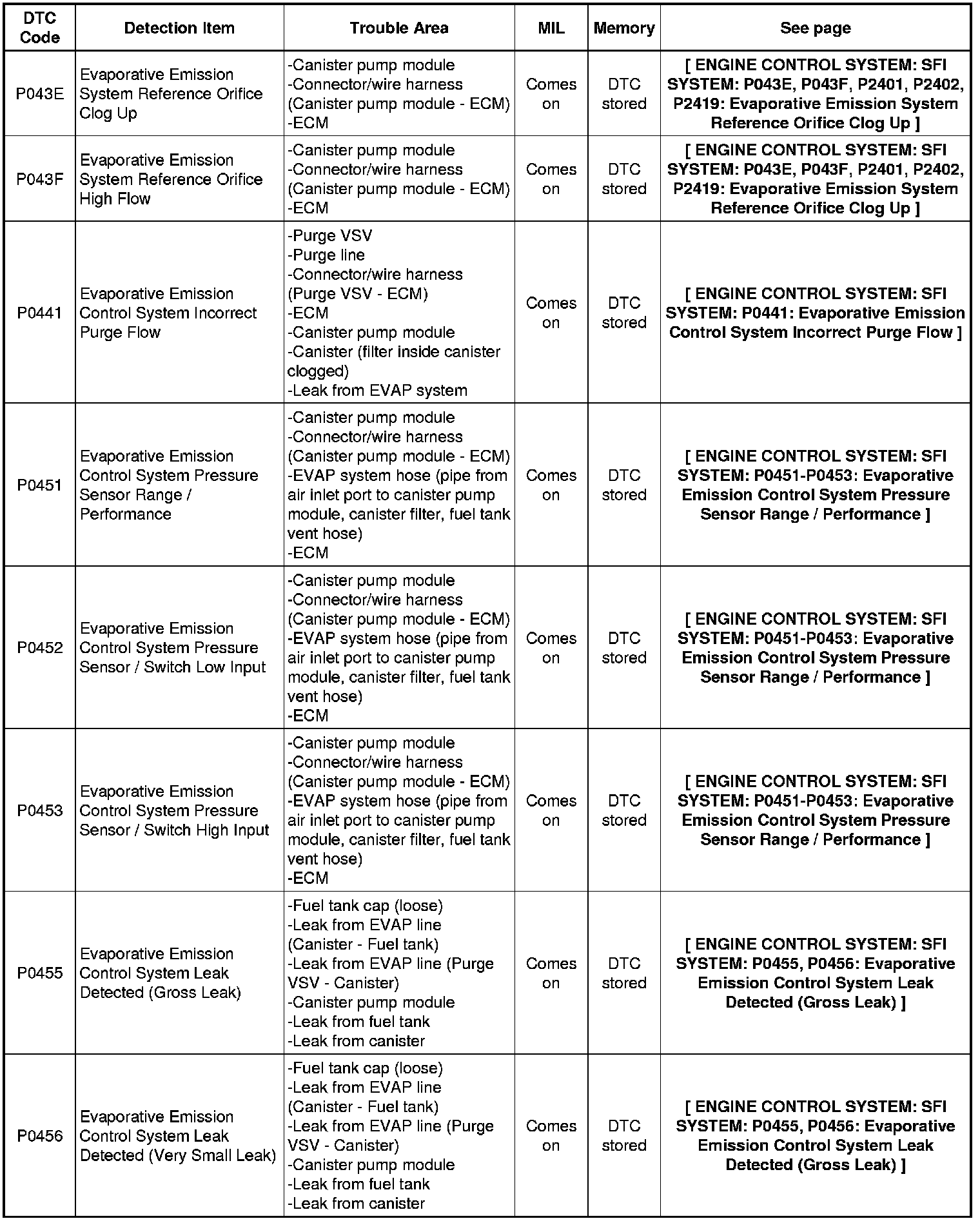

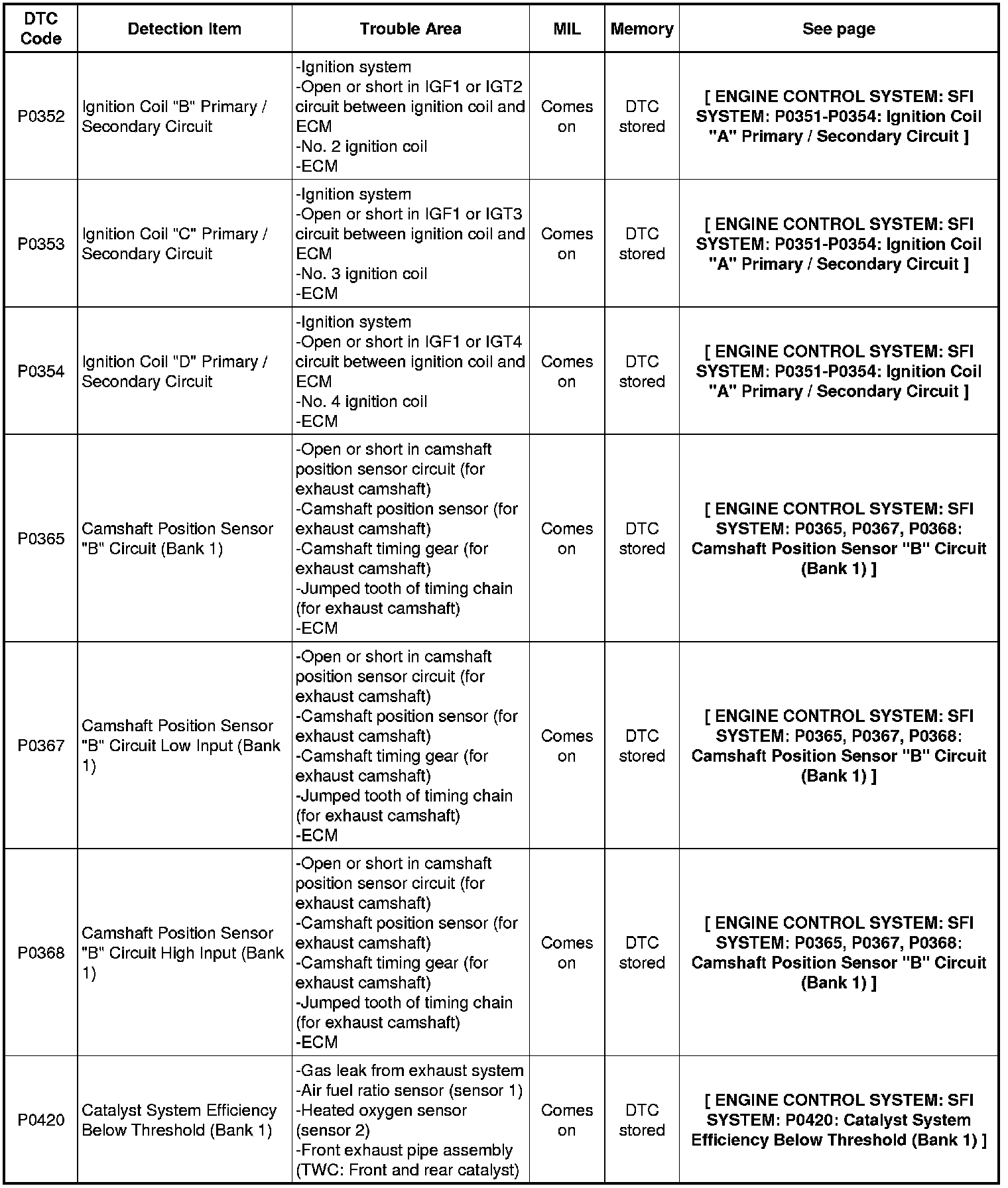

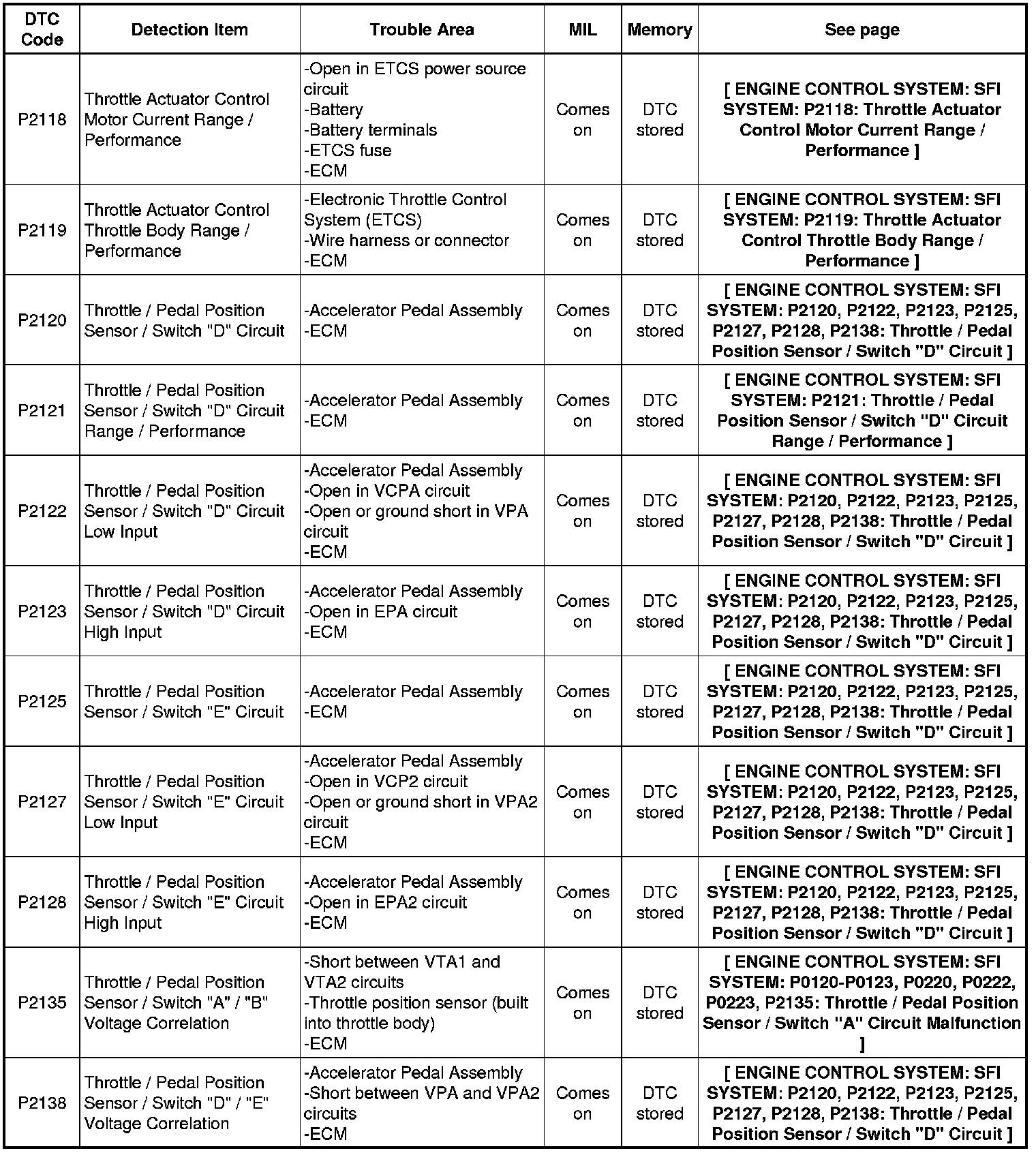

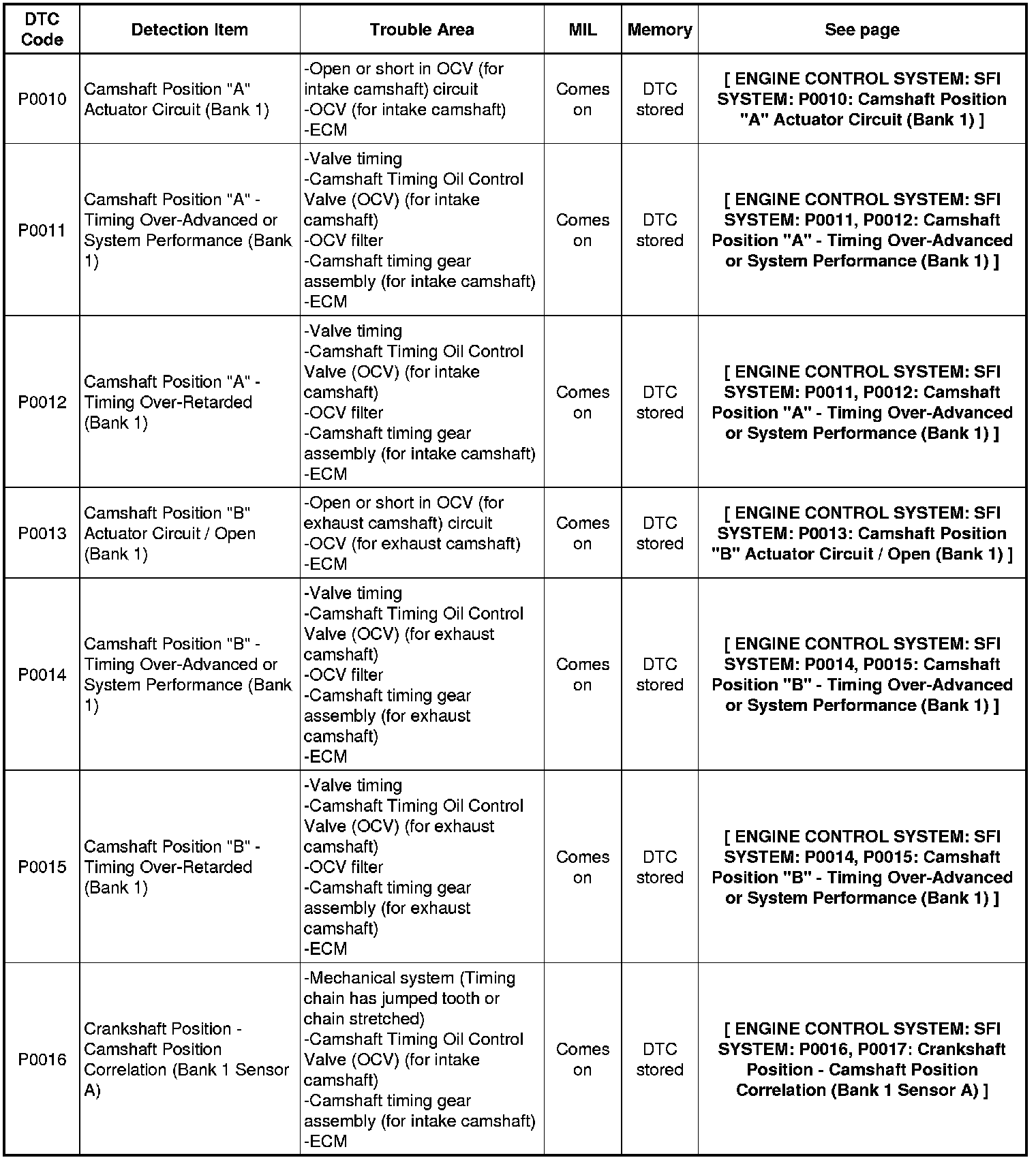

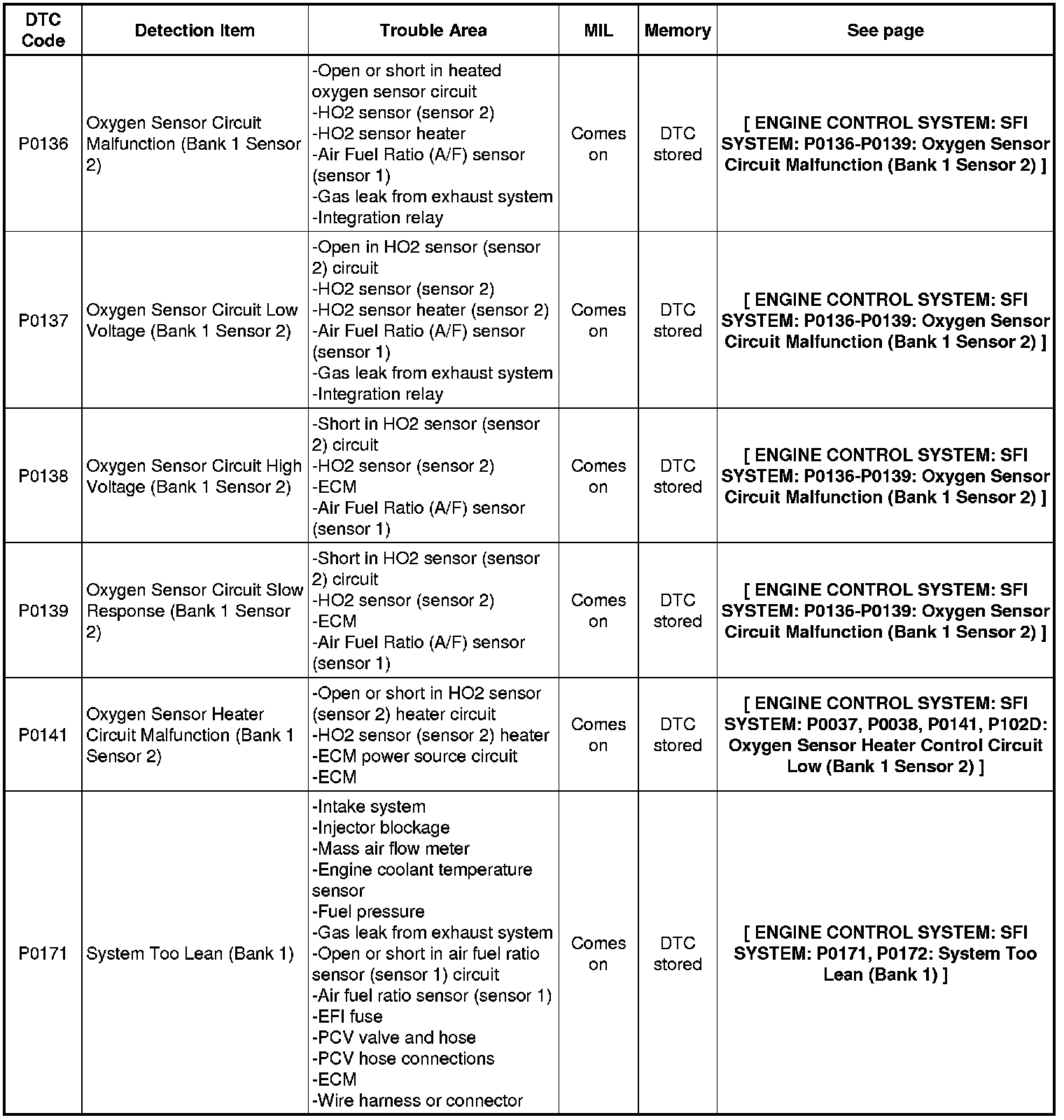

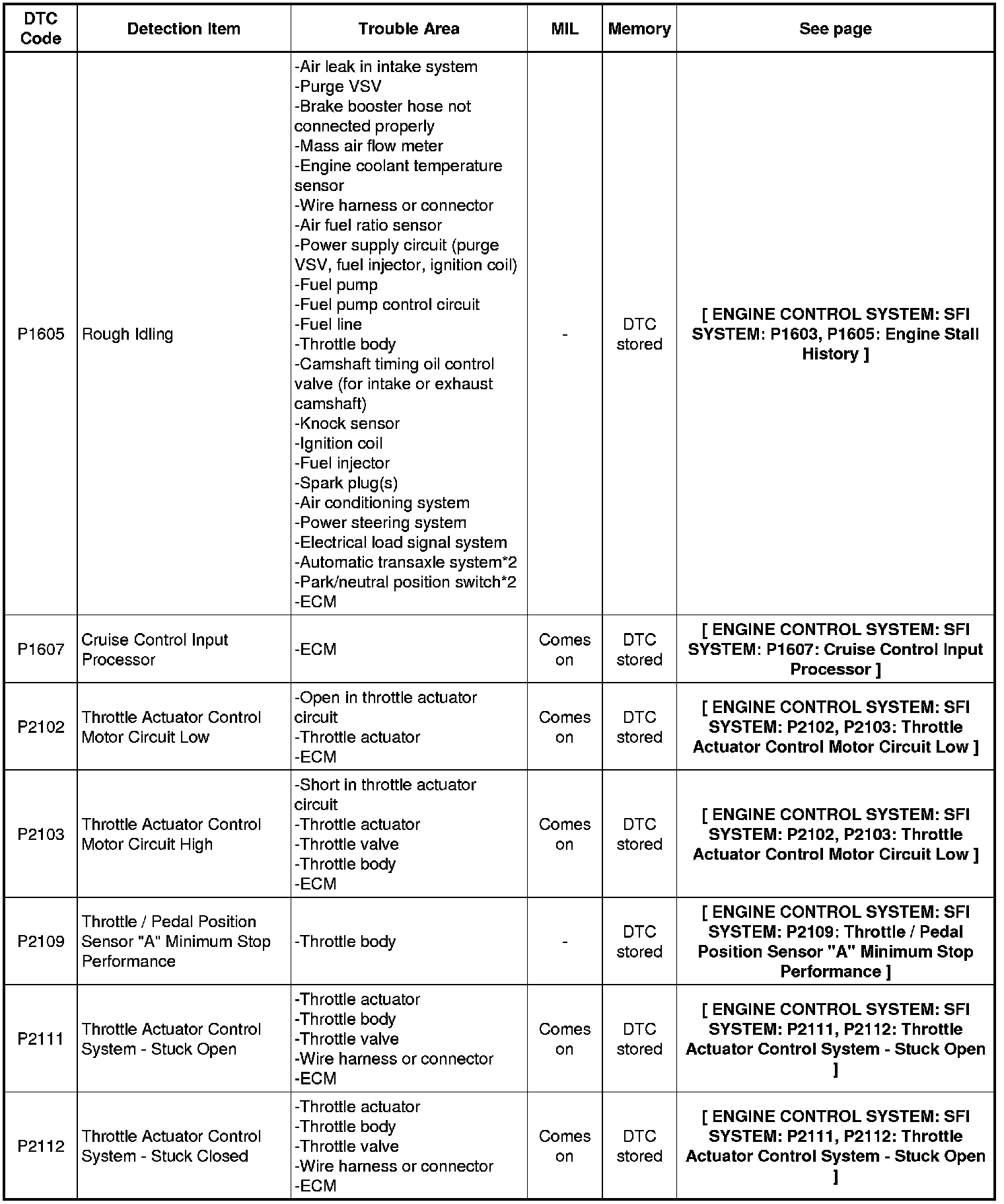

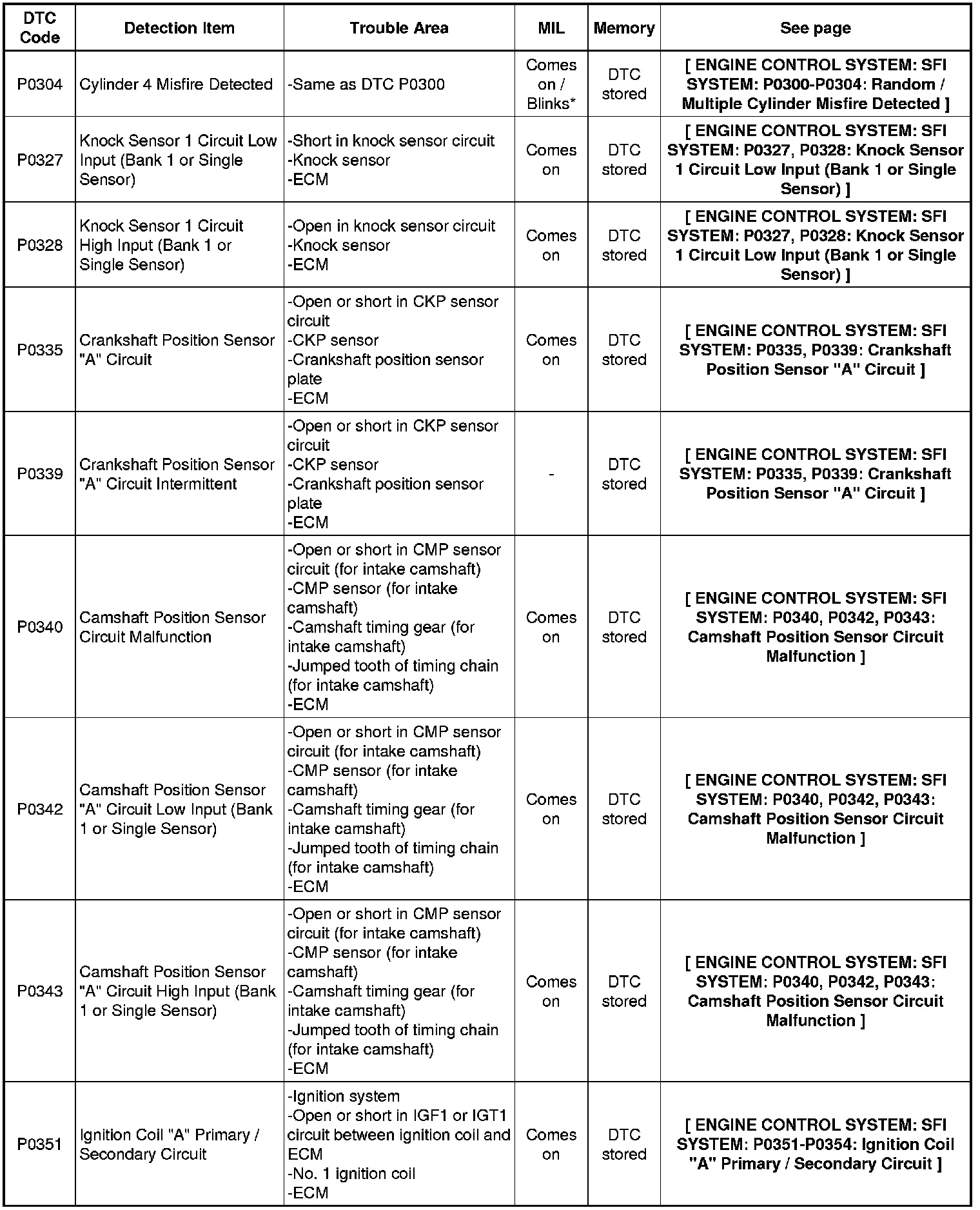

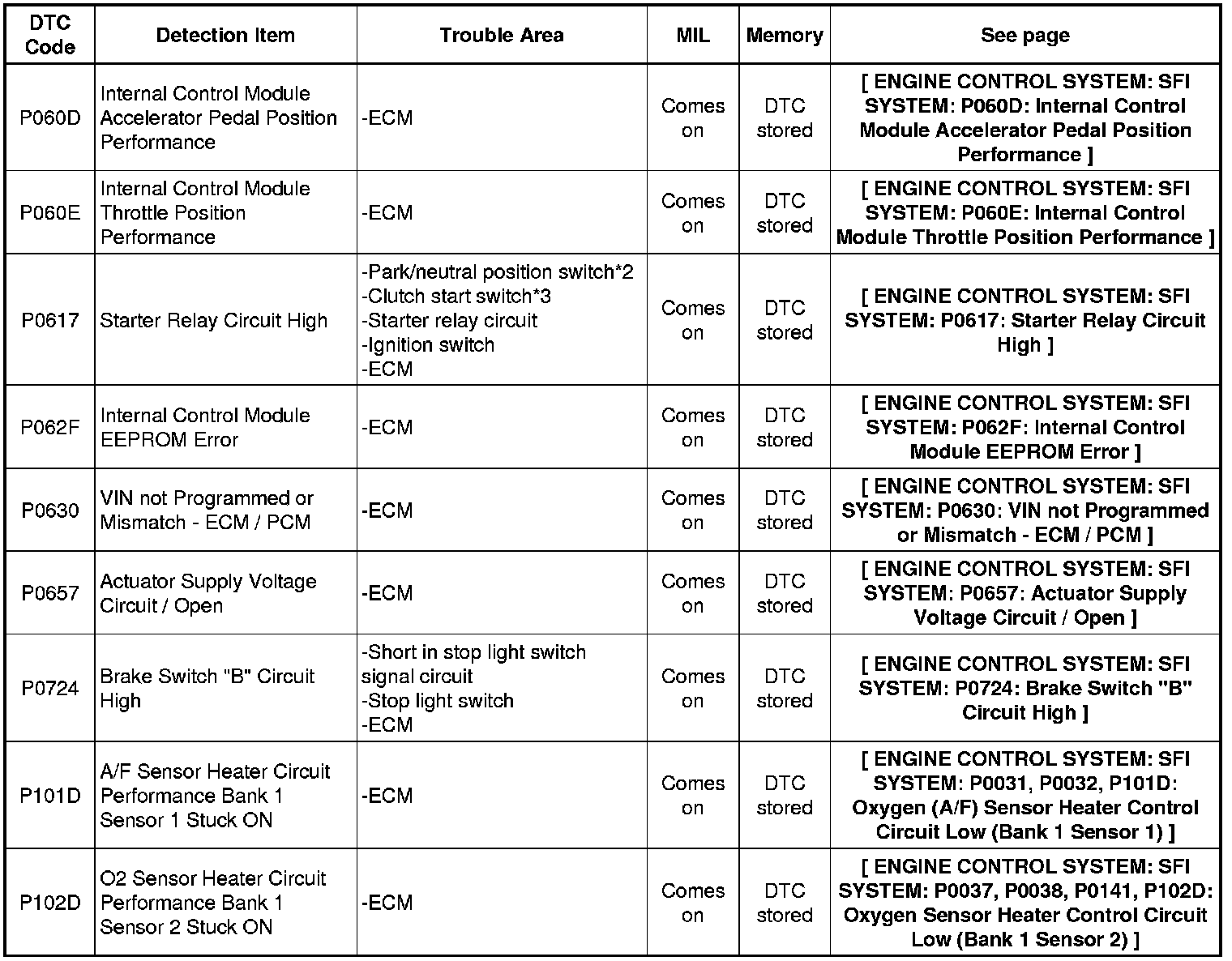

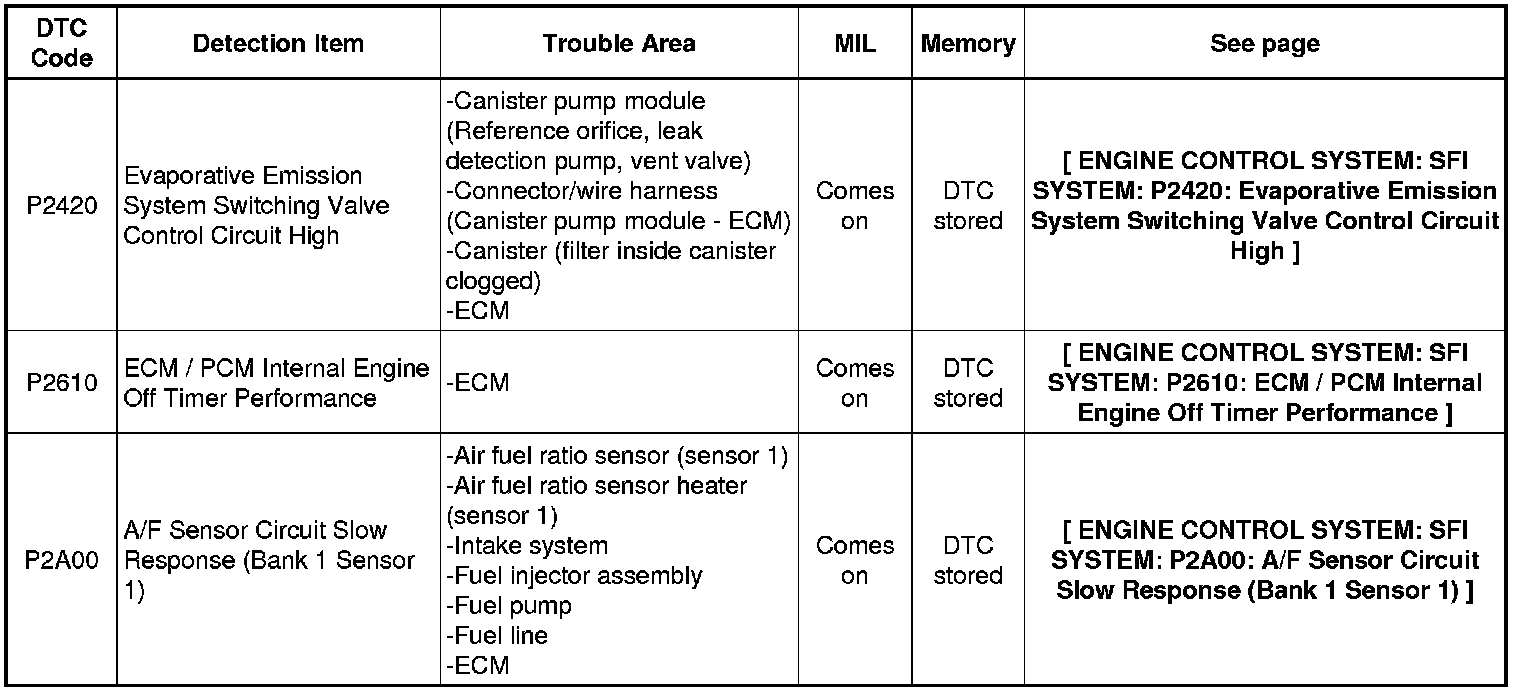

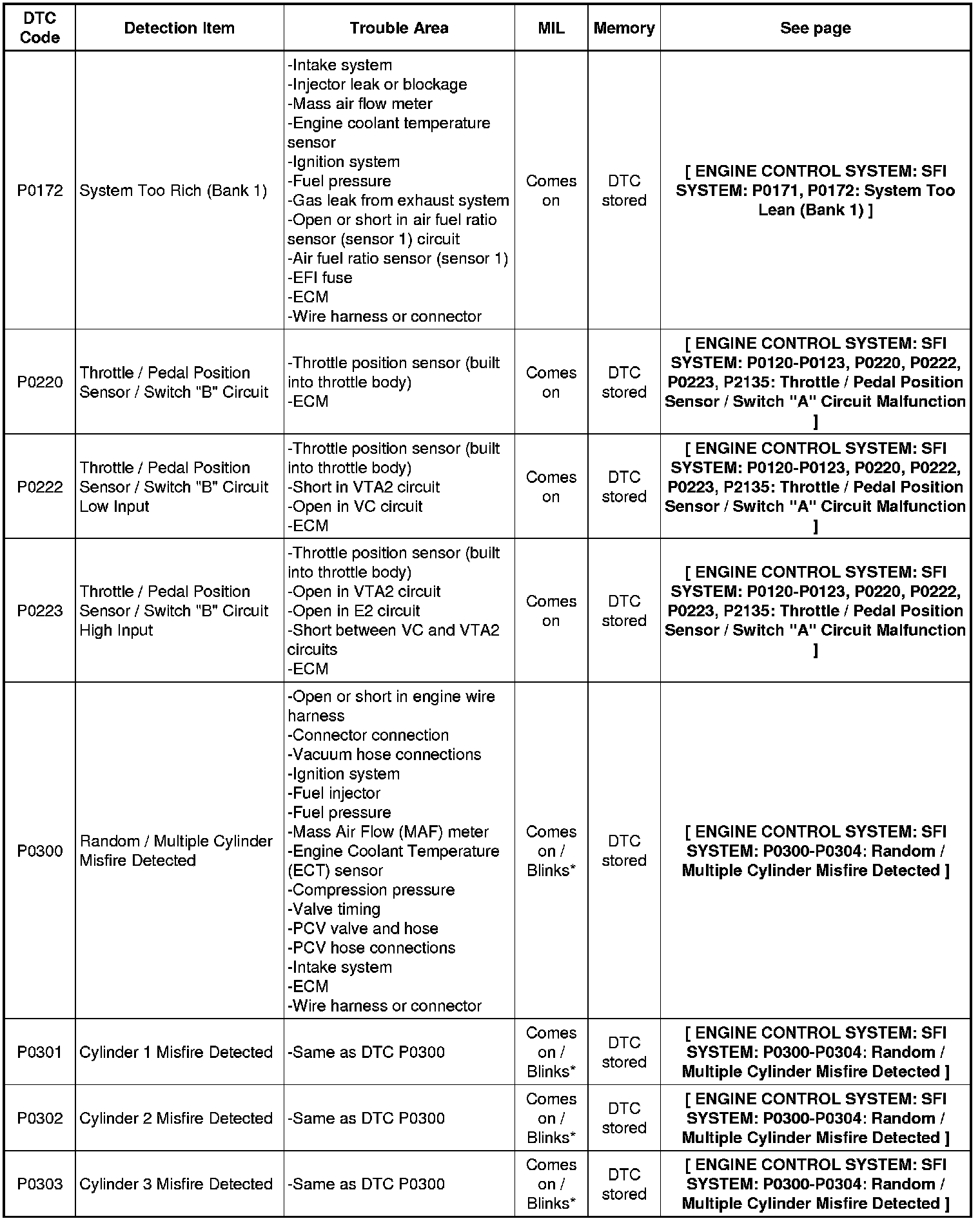

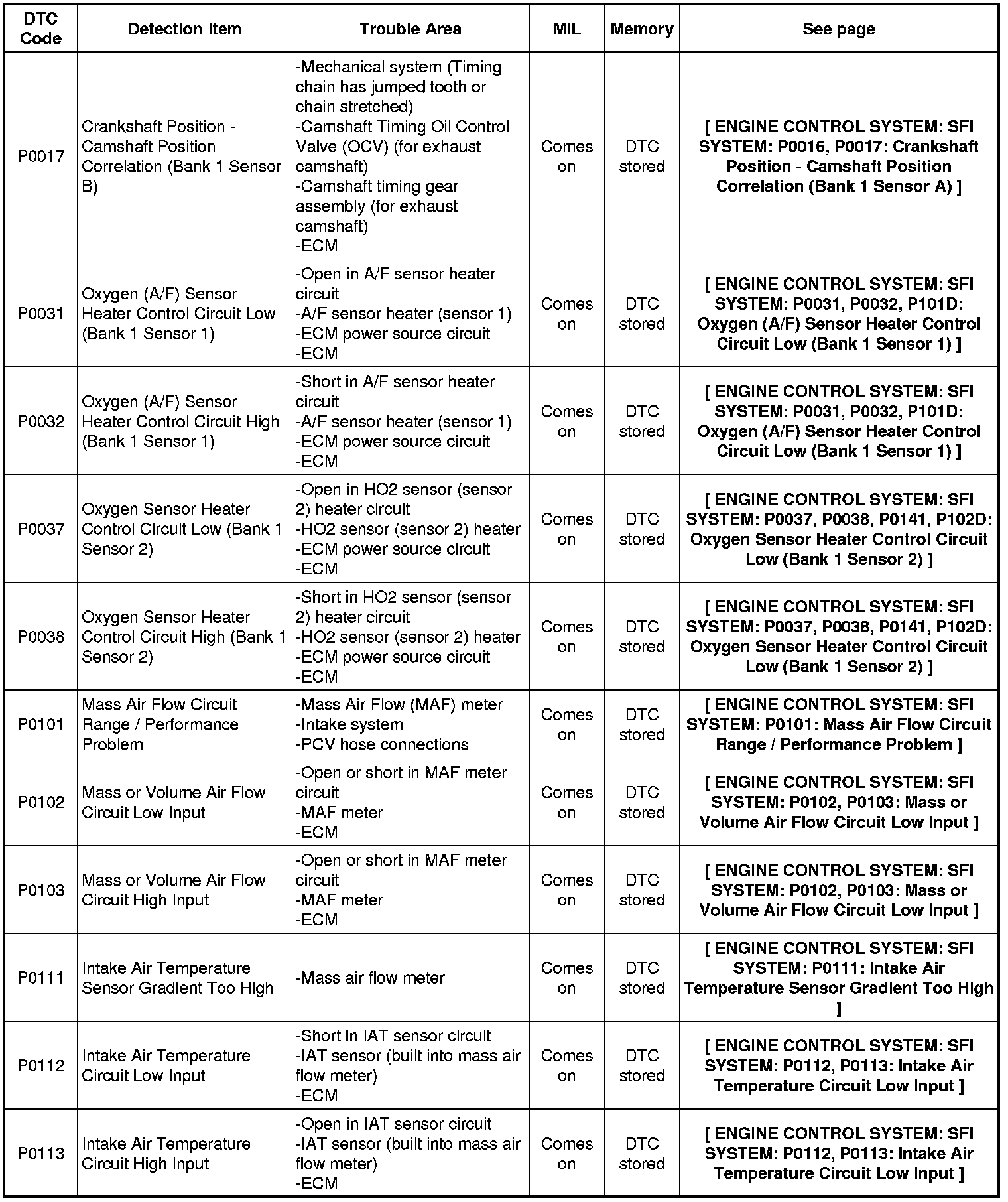

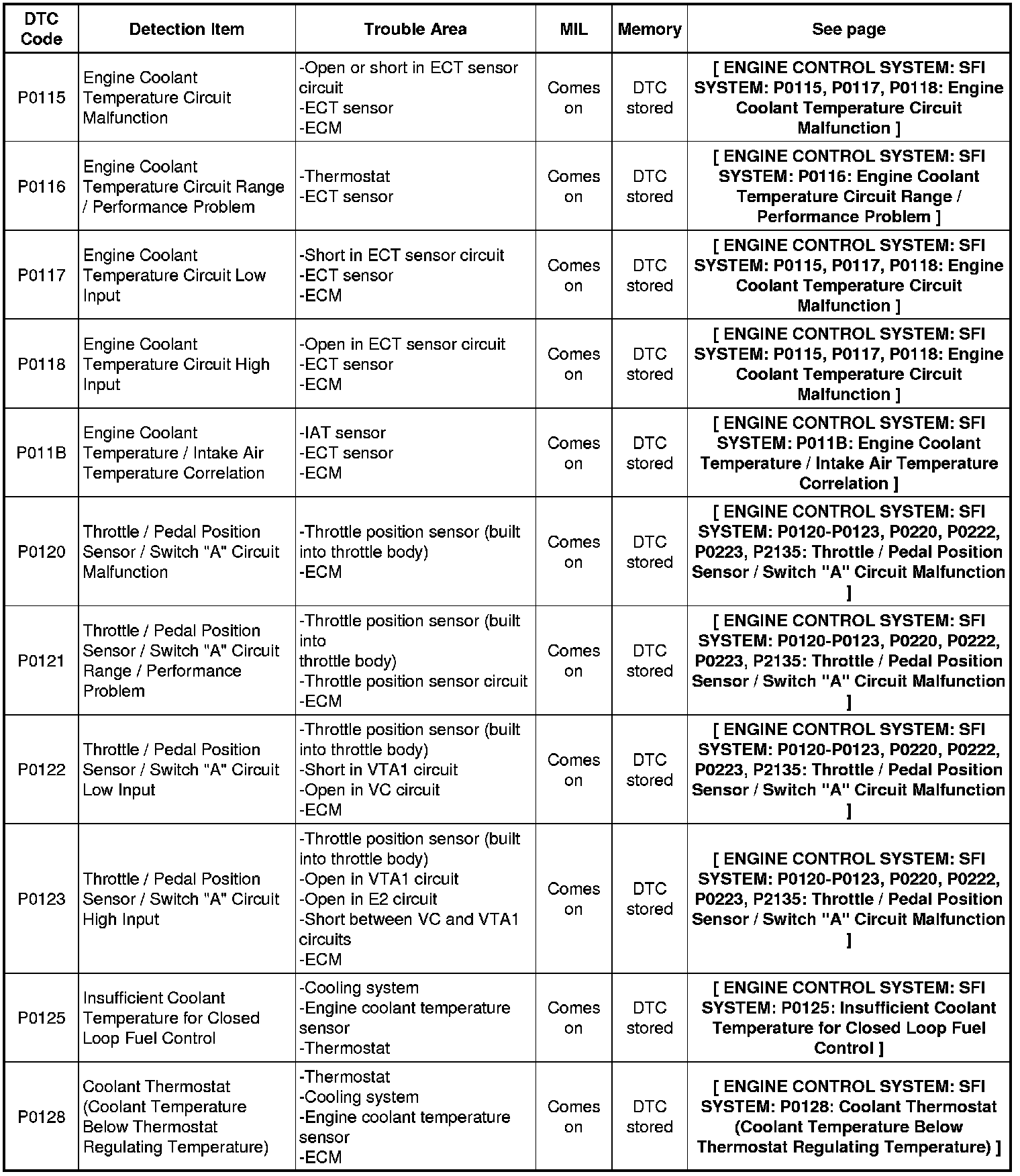

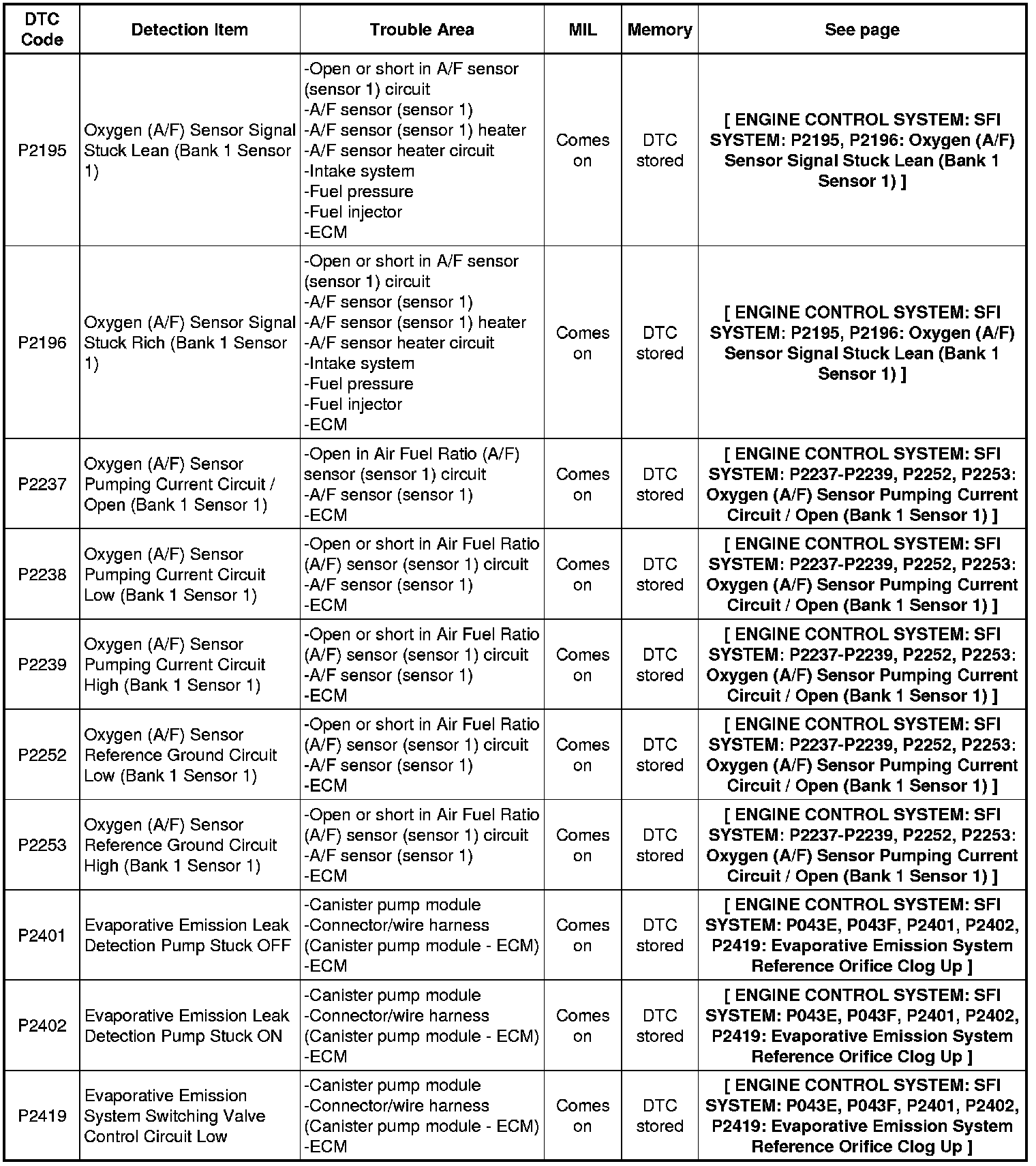

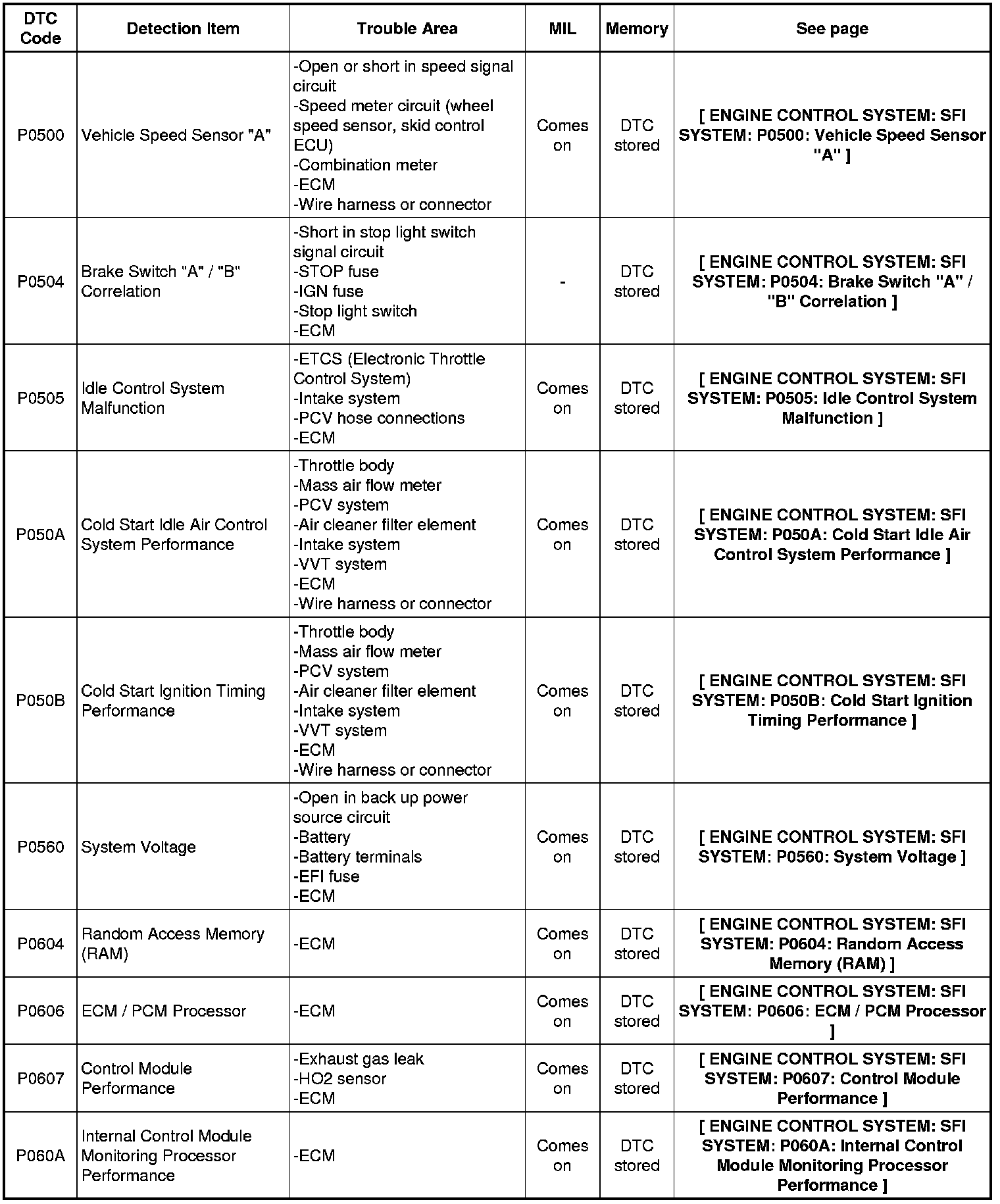

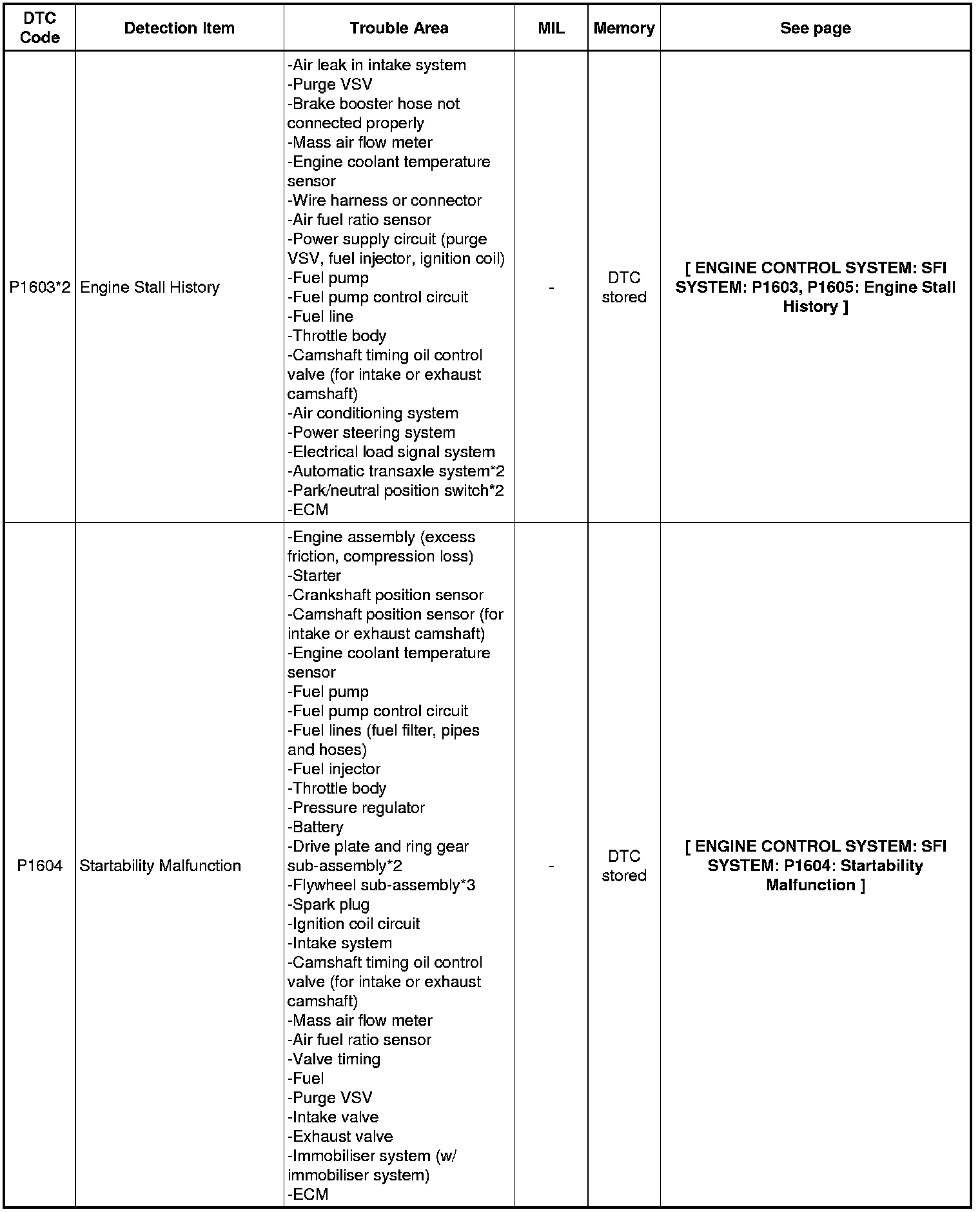

If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table below. For details of each DTC, refer to the page indicated.

SFI SYSTEM





























































* *1: MIL flashes when a catalyst damaged misfire is detected.

* *2: for Automatic Transaxle

* *3: for Manual Transaxle
