Automatic Transaxle System - U341E

U341E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

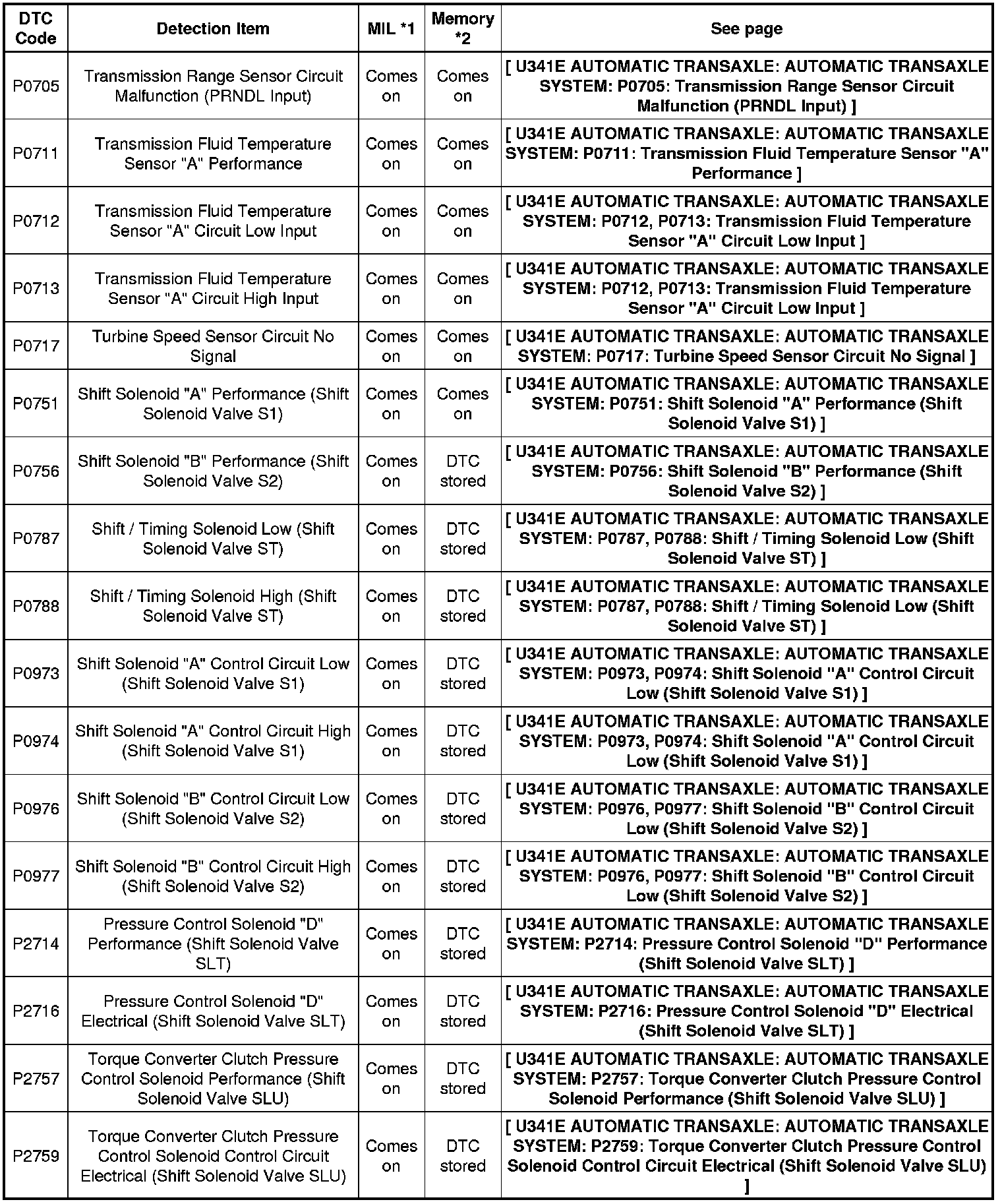

If a DTC is displayed during the DTC check, check the parts listed in the table below and proceed to the page given.

HINT
* *1: "Comes on" means MIL (Malfunction Indicator Lamp) lights up.
* *2: "DTC stored" mark means ECM memorizes the trouble code if the ECM detects the DTC detection condition.
* This DTC may be output when the clutch, brake and gear components etc. inside the automatic transaxle are damaged.

Automatic Transaxle System
