Front Wiper Motor

WIPER / WASHER: FRONT WIPER MOTOR: ON-VEHICLE INSPECTION

1. INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY

(a) Check the automatic stop position.





Text in Illustration





(1) Operate the front wiper motor, and then stop the operation.

(2) Check the automatic stop position when the front wiper motor operation has stopped.

OK:

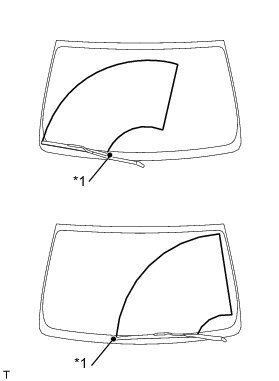

Front wiper arm stops in the position shown in the illustration.
