Home >> Scion >> 2012 >> iQ L4-1.3L (1NR-FE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Motor >> Service and Repair >> Washer Motor (for Rear Side) >> Components

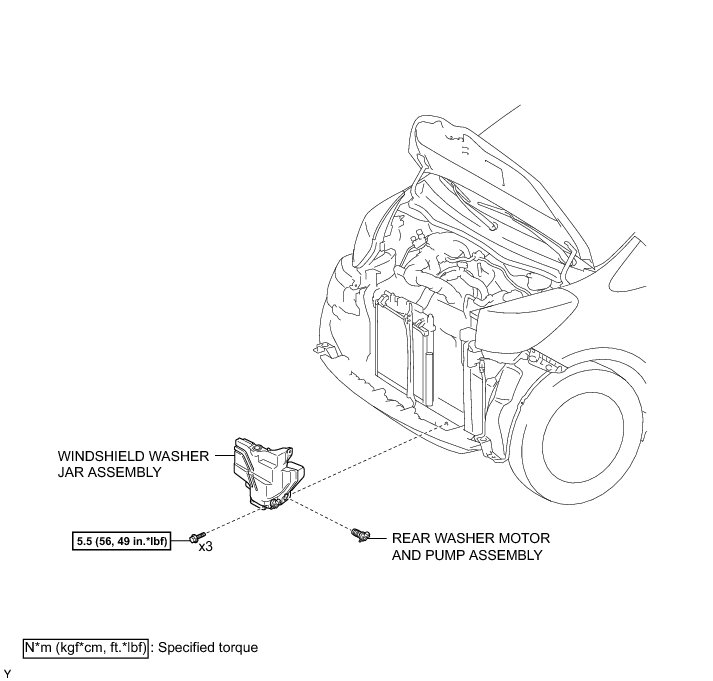

Components





WIPER / WASHER: WASHER MOTOR (for Rear Side): COMPONENTS
