Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch
- Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch

DESCRIPTION

* If the manual UP/DOWN function does not operate, there may be a malfunction in the power window regulator switch assembly, the front power window regulator motor assembly (passenger side), the harness or the connector.

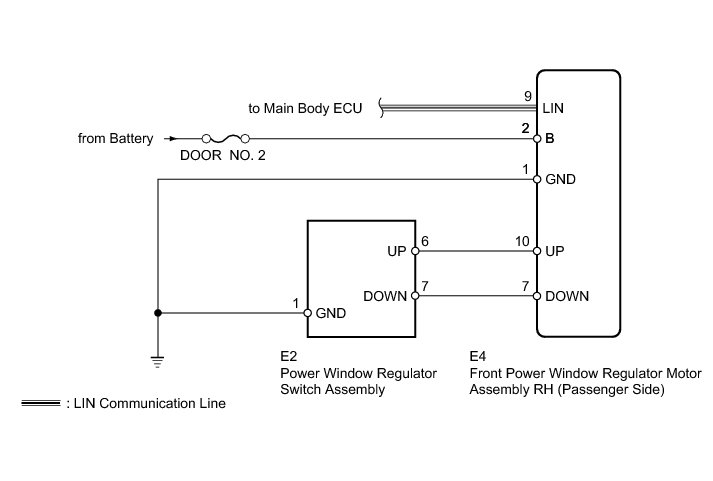

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK LIN COMMUNICATION SYSTEM

(a) Check for LIN communication system DTCs related to the power window control system LIN Communication System.

OK:

LIN communication system DTCs are not output.

NG -- GO TO LIN COMMUNICATION SYSTEM LIN Communication System
OK -- Continue to next step.

2. CHECK FOR DTC (B2312)

(a) Check if DTC B2312 is output Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B2312 is not output.

NG -- GO TO DTC (B2312) B2312
OK -- Continue to next step.

3. READ VALUE USING TECHSTREAM (P-DOOR MOTOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

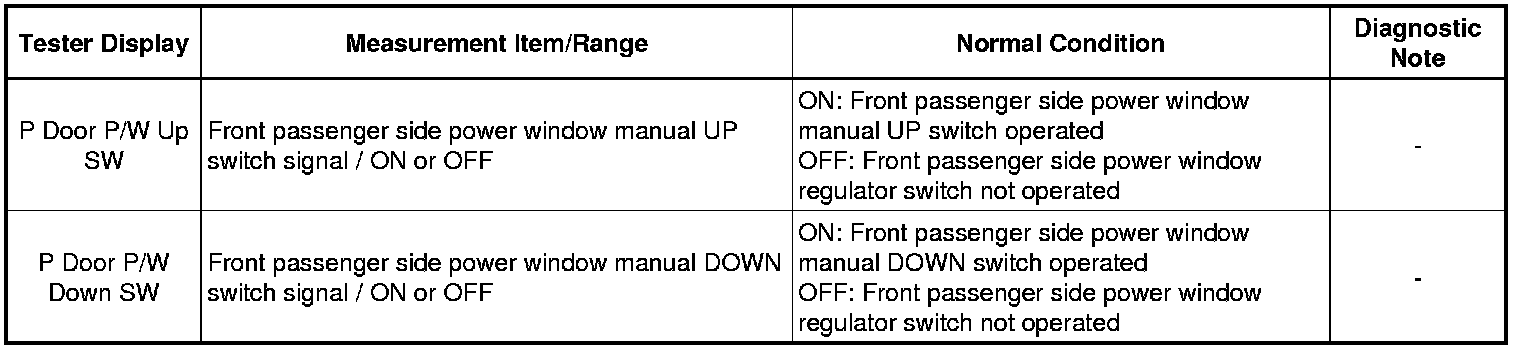

(d) Enter the following menus: Body / P-Door Motor / Data List.

(e) According to the display on the Techstream, read the Data List.

P-Door Motor

OK:

The Techstream display changes normally when front passenger side power window switch is operated.

NG -- CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH - BODY GROUND)

OK -- REPLACE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY RH Disassembly

4. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH - BODY GROUND)

(a) Disconnect the E2 power window regulator switch assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Text in Illustration

(c) Reconnect the power window regulator switch assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR - BATTERY, BODY GROUND)

(a) Disconnect the E4 front power window regulator motor assembly RH connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Text in Illustration

(d) Reconnect the front power window regulator motor assembly RH connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

6. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH - POWER WINDOW REGULATOR MOTOR)

(a) Disconnect the E2 front power window regulator switch assembly connector.

(b) Disconnect the E4 front power window regulator motor assembly RH connector.

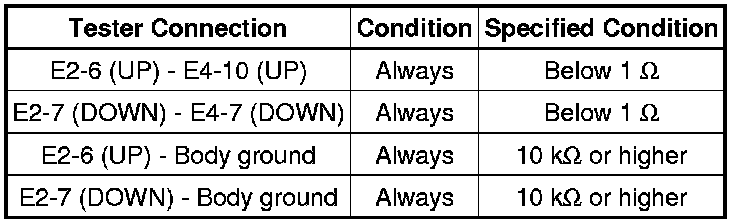

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

(d) Reconnect the front power window regulator motor assembly RH connector.

(e) Reconnect the front power window regulator switch assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

7. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Remove the power window regulator switch assembly Removal.

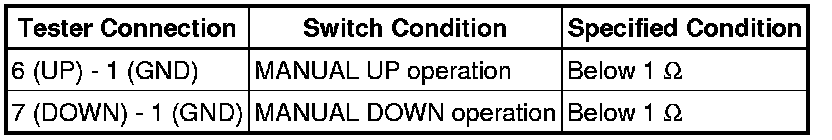

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Text in Illustration

(c) Reinstall the power window regulator switch assembly.

NG -- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY Removal

OK -- REPLACE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY RH Disassembly
