Driver Side Power Window Auto Up / Down Function Does Not Operate With Power Window Master Switch
WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch
- Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch
DESCRIPTION
* If the AUTO UP/DOWN function does not operate, the cause may be one or more of the following:
* The ECU in the power window regulator motor determines that the power window regulator motor has not been initialized.
* The master switch has a malfunction.
* The Hall IC in the driver side power window regulator motor has a malfunction.
* The wiring between the master switch and the driver side power window regulator motor is open or short.
INSPECTION PROCEDURE
PROCEDURE
1. CHECK FOR DTC
(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes

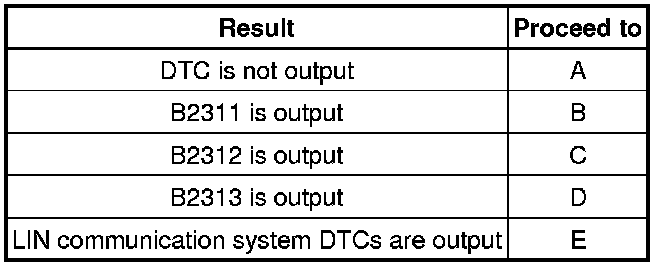

Result
B -- GO TO DTC (B2311) B2311
C -- GO TO DTC (B2312) B2312
D -- GO TO DTC (B2313) B2313
E -- GO TO LIN COMMUNICATION SYSTEM LIN Communication System
A -- Continue to next step.
2. CHECK MANUAL UP / DOWN FUNCTION
(a) Check that the manual UP/DOWN function using the power window regulator master switch assembly can operate the driver side power window Operation Check.
OK:
Manual UP/DOWN function operates normally.
NG -- GO TO OTHER FLOW CHART (DRIVER SIDE POWER WINDOW MOTOR CIRCUIT) Driver Side Power Window Does Not Operate With Power Window Master Switch
OK -- Continue to next step.
3. READ VALUE USING TECHSTREAM (MASTER SWITCH)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Body / Master Switch / Data List.
(e) According to the display on the Techstream, read the Data List.

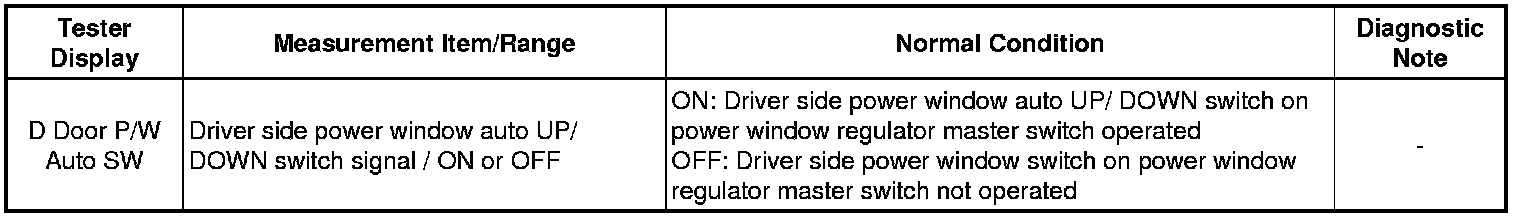

Master Switch
OK:
The Techstream display changes normally when master switch is operated.
NG -- REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Removal
OK -- REPLACE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY LH Disassembly
