Power Window Master Switch

WINDOW / GLASS: POWER WINDOW MASTER SWITCH: INSPECTION

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(a) Check the illumination operation.





Text in Illustration

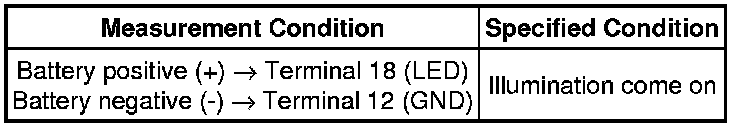

(1) Apply battery voltage to the power window regulator master switch and check that the illumination comes on.

OK:





If the result is not as specified, replace the power window regulator master switch.
