Front Passenger Side Power Window Switch

WINDOW / GLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSPECTION

1. INSPECT FRONT PASSENGER SIDE POWER WINDOW SWITCH

(a) Check the resistance.





Text in Illustration

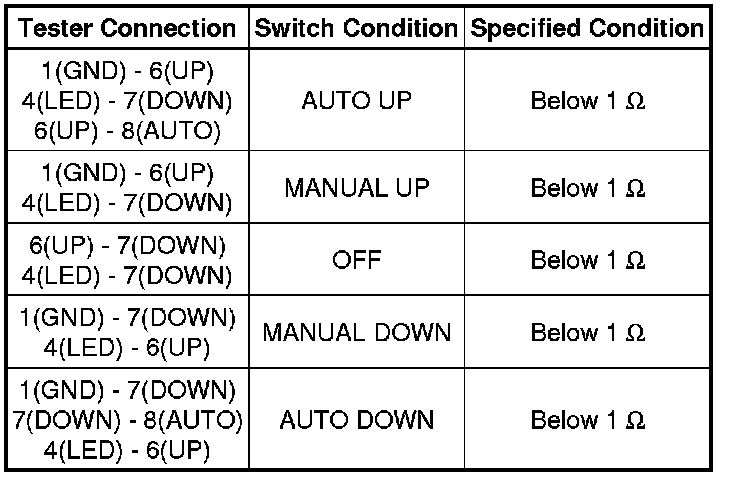

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the power window switch.

(b) Check the illumination operation.

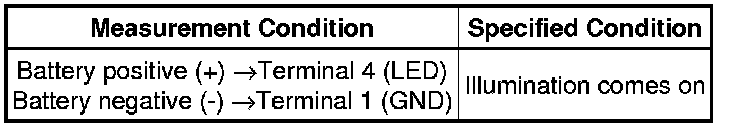

(1) Apply battery voltage to the power window switch and check that the illumination comes on.

OK:





If the result is not as specified, replace the power window switch.
