System Description

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: SYSTEM DESCRIPTION

1. POWER WINDOW CONTROL SYSTEM DESCRIPTION

* The power window control system controls the power window UP/DOWN function using the power window regulator motor. The main controls of this system are the power window regulator master switch, which is built into the driver side door, and the power window regulator switch, which is built into the front passenger side door.

* Pressing the power window regulator switch or either of the power window switches on the power window regulator master switch transmits an UP/DOWN signal to the corresponding power window regulator motor.

* An ECU is built into the power window regulator motor.

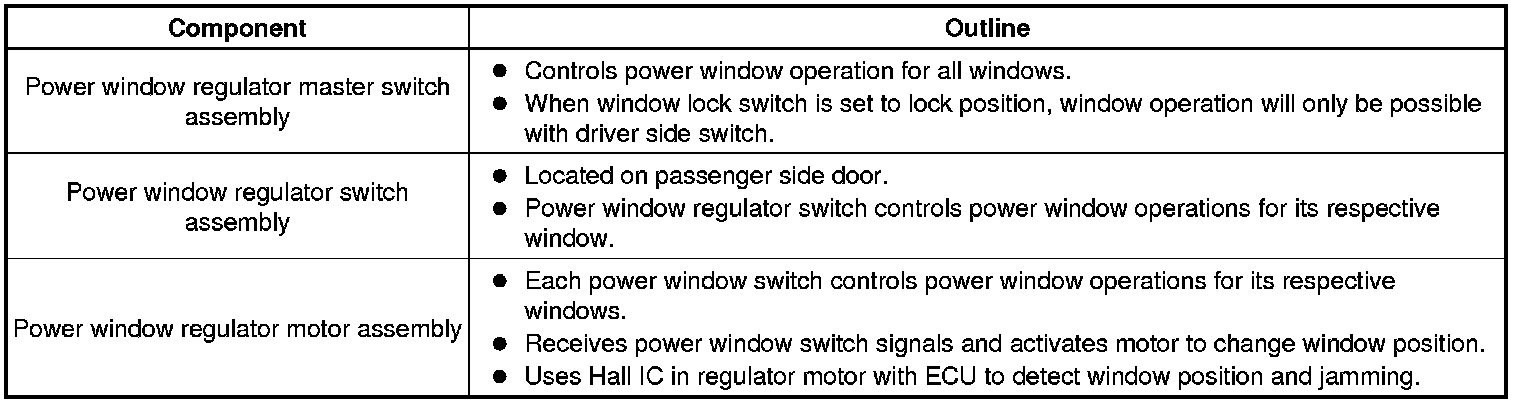

2. FUNCTION OF MAIN COMPONENTS

The power window control system consists of the following components:

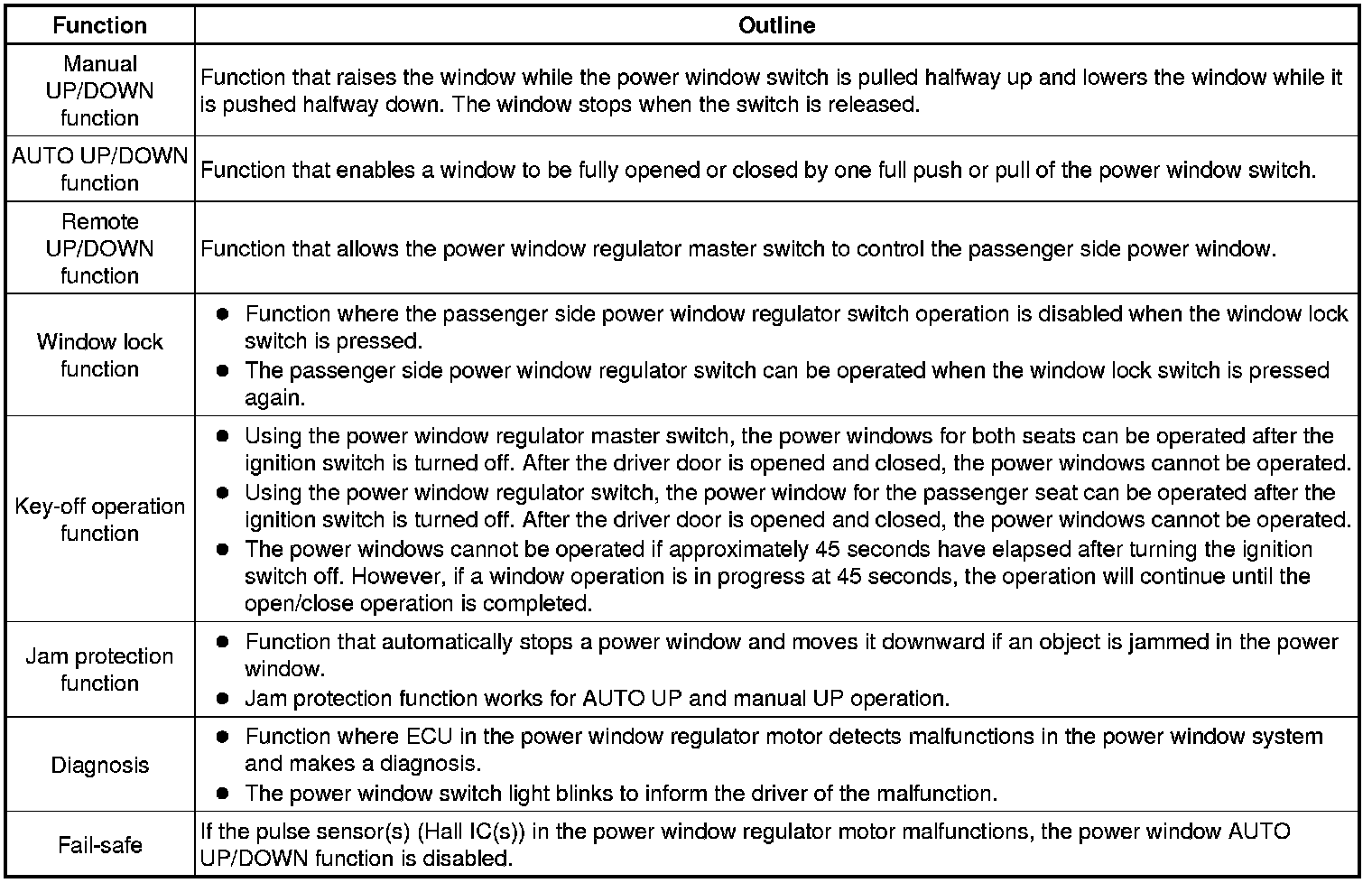

3. SYSTEM FUNCTION

The power window control system has the following functions:
