Pinout Values and Diagnostic Parameters

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM: TERMINALS OF ECU

1. CHECK NO. 2 HEATER CONTROL SUB-ASSEMBLY

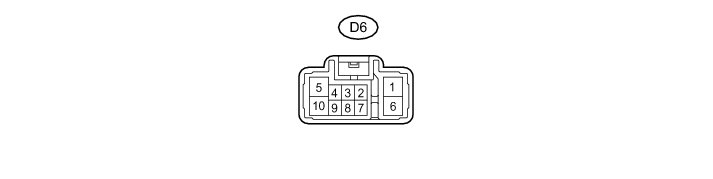

(a) Disconnect the D6 No. 2 heater control sub-assembly connector.

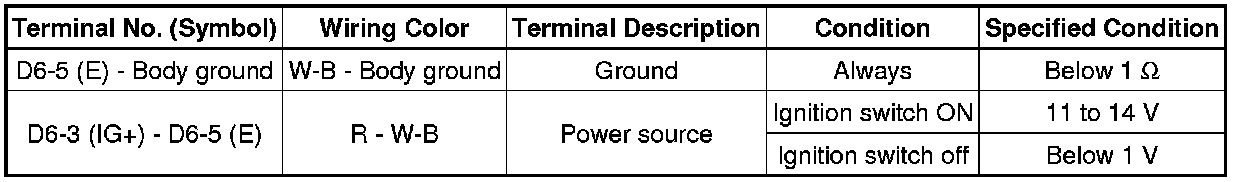

(b) Measure the voltage and resistance according to the value(s) in the table below.





* If the result is not as specified, there may be a malfunction in the wire harness side.

(c) Reconnect the No. 2 heater control sub-assembly connector.

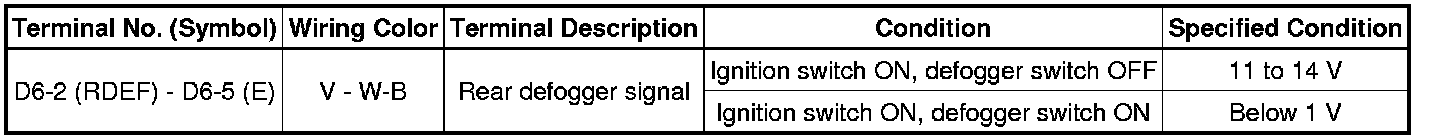

(d) Measure the voltage according to the value(s) in the table below.





* If the result is not as specified, the air conditioning control assembly may have a malfunction.
