Installation

K41B CVT: OIL COOLER: INSTALLATION

1. INSTALL TRANSMISSION OIL COOLER ASSEMBLY

(a) Apply Toyota genuine CVT Fluid TC to the 2 new O-rings and install them on the transmission oil cooler.

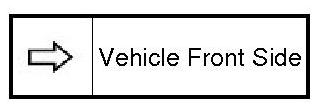

Text in Illustration





(b) Install the transmission oil cooler onto the CVT with the 3 bolts.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

(c) Install the 2 water by-pass hoses to the transmission oil cooler with the 2 clamps.

NOTICE:
Securely push the hoses over each pipe fitting on the transmission oil cooler until the hoses contact the rib on each pipe fitting.

2. INSTALL FRONT SUSPENSION MEMBER

Installation

3. ADD ENGINE COOLANT Service and Repair

4. ADJUST CONTINUOUSLY VARIABLE TRANSAXLE FLUID

Procedures

5. INSPECT FOR ENGINE COOLANT LEAK Testing and Inspection
