Component Tests and General Diagnostics

K41B CVT: SHIFT LEVER: INSPECTION

1. INSPECT SHIFT LOCK CONTROL ECU

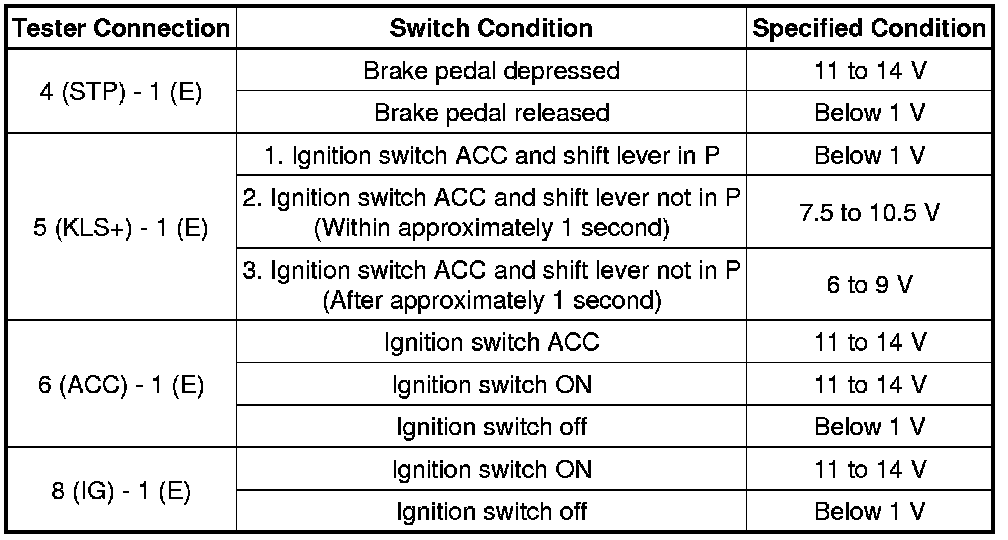

(a) Measure the voltage according to the value(s) in the table below.





Text in Illustration





HINT
Do not disconnect the shift lock control ECU connector.

Standard Voltage:





If the result is not as specified and there are no problems with the wire harness, replace the shift lock control ECU.

(b) Measure the resistance according to the value(s) in the table below.

HINT
Do not disconnect the shift lock control ECU connector.

Standard Resistance:





If the result is not as specified and there are no problems with the wire harness, replace the shift lock control ECU.

2. INSPECT TRANSMISSION CONTROL SWITCH

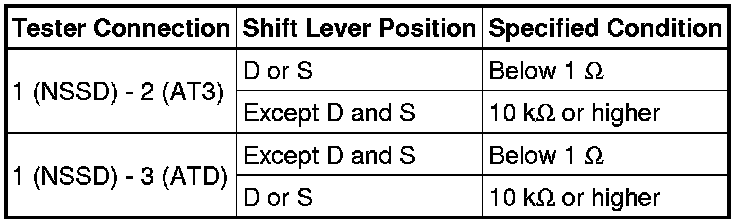

(a) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.





Text in Illustration





Standard Resistance:





If the result is not as specified, replace the shift lock control unit.

3. INSPECT SHIFT LOCK SOLENOID

(a) Disconnect the shift lock solenoid connector of the shift lock ECU.

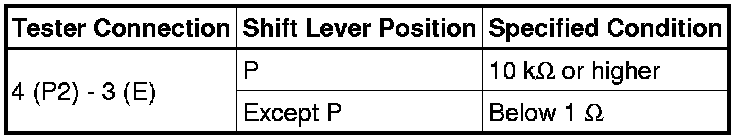

(b) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

Text in Illustration





Standard Resistance:





If the result is not as specified, replace the shift lock control unit.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the shift lock control unit.
