Removal

FRONT SUSPENSION: FRONT LOWER SUSPENSION ARM: REMOVAL

1. REMOVE FRONT WHEEL

2. REMOVE NO. 3 ENGINE UNDER COVER (for RH Side)

(a) Remove the 3 clips and the No. 3 engine under cover.

3. REMOVE FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY LH





(a) Remove the clip and castle nut.

(b) Install SST (spacer B) to the threaded section of the lower ball joint.

SST : 09960-20010

09961-02060





NOTICE:
Make sure the upper ends of the threaded section of the lower ball joint and SST (spacer B) are aligned.

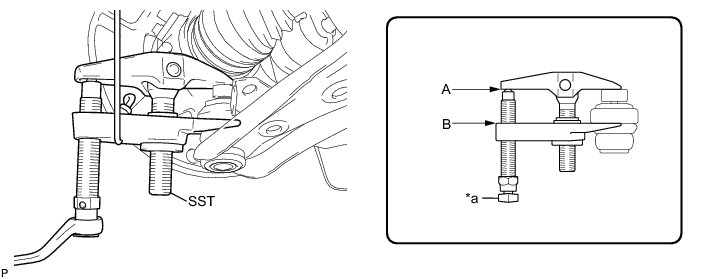

(c) Using SST, separate the front lower suspension arm sub-assembly.

SST : 09960-20010

09961-02010





Text in Illustration





NOTICE:
* Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
* Install SST so that A and B are parallel.
* Be sure to place the wrench on the part indicated in the illustration.
* Do not damage the lower ball joint dust cover.
* Do not damage the drive shaft outboard joint boots.
* Do not damage the front disc brake dust cover.

(d) Remove the 2 bolts, the nut, and the front lower suspension arm sub-assembly.
