Scion
>>
2012
>>
iQ L4-1.3L (1NR-FE)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Axle Beam
>>
Service and Repair
>>
Components
Components
REAR
SUSPENSION

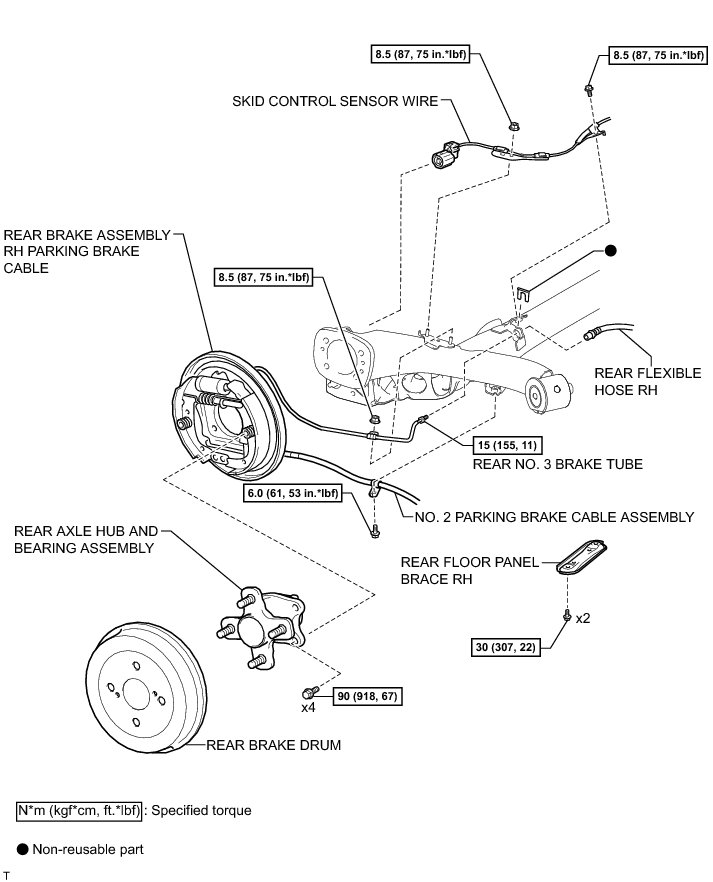

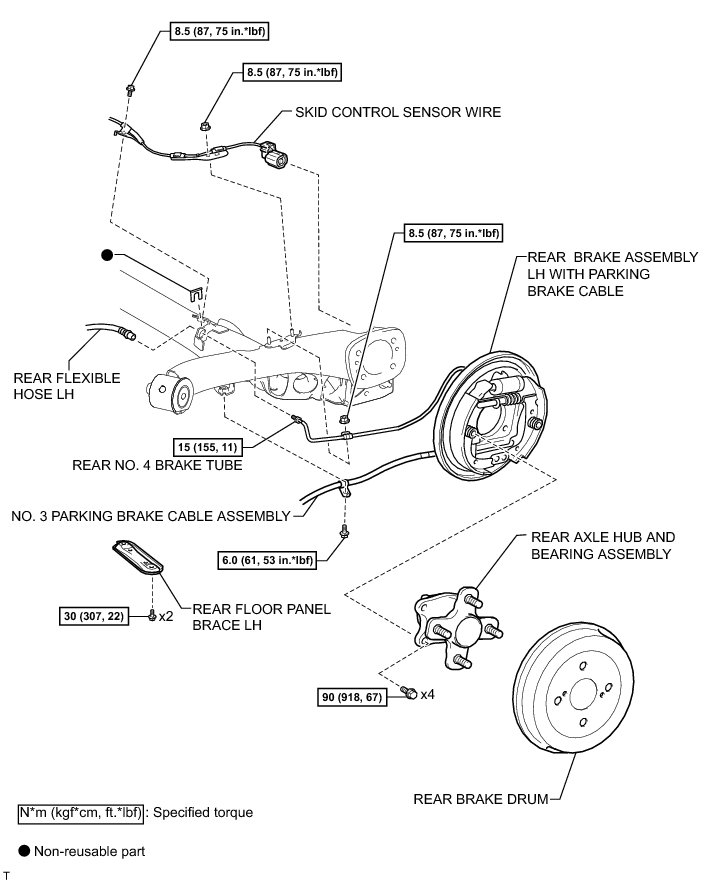

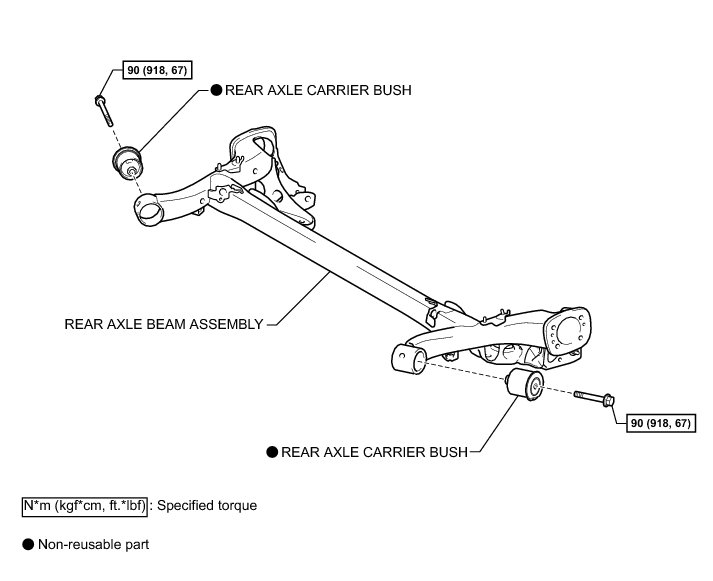

: REAR AXLE BEAM: COMPONENTS
