Freeze Frame Data

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: FREEZE FRAME DATA

1. FREEZE FRAME DATA

NOTICE:
* It is difficult to show the specified values (judgment values) clearly because freeze frame data values change significantly due to differences in measurement conditions, surroundings, or vehicle conditions. For this reason, there may be a problem even when the values are within specifications.
* Turn the ignition switch to ON and park the vehicle on level ground. Check the freeze frame data by using the Techstream.

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Start the engine.

(d) Turn the Techstream on.

(e) Check the freeze frame data by following the prompts on the Techstream display.

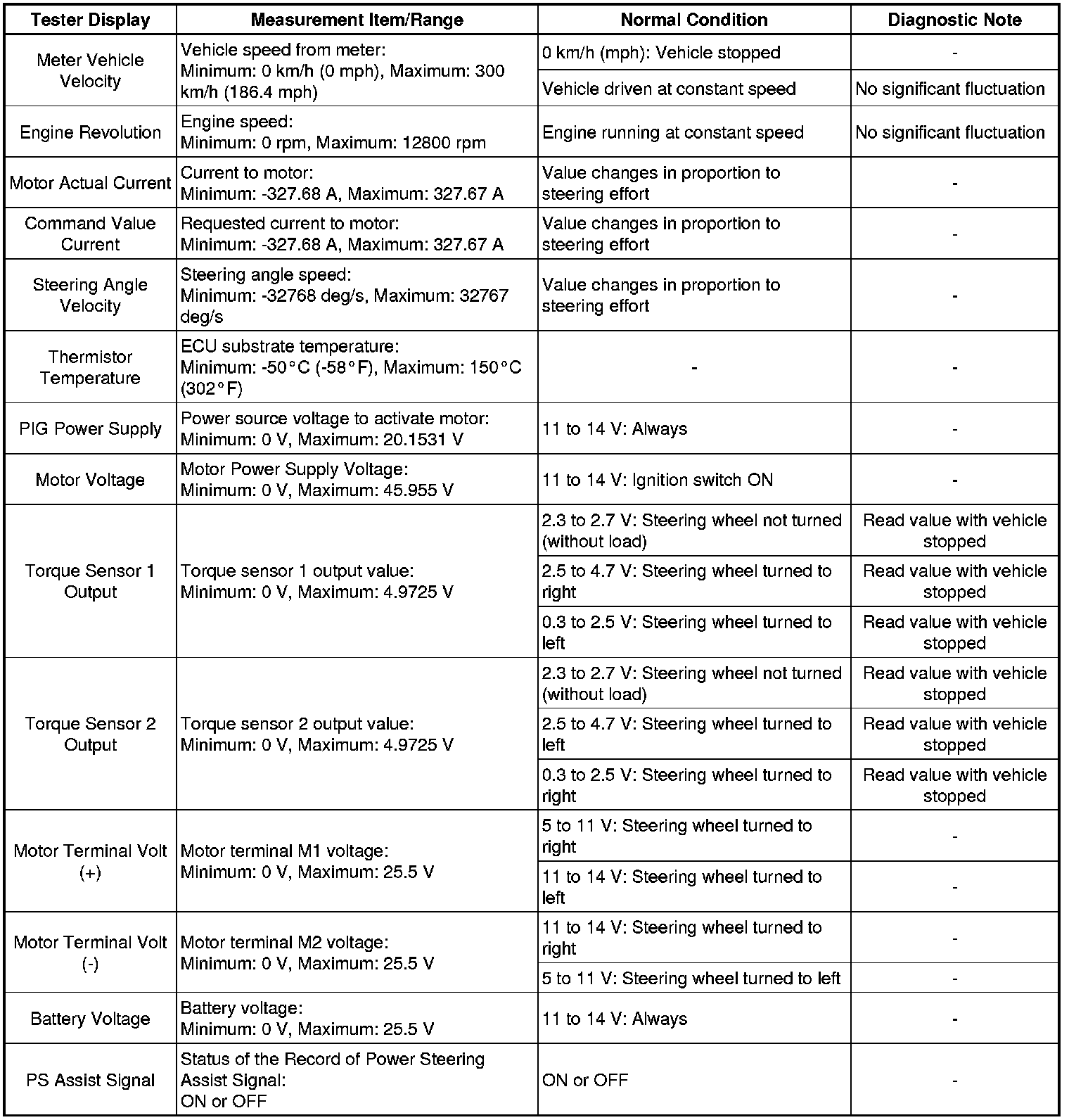

EMPS
