Pinout Values and Diagnostic Parameters

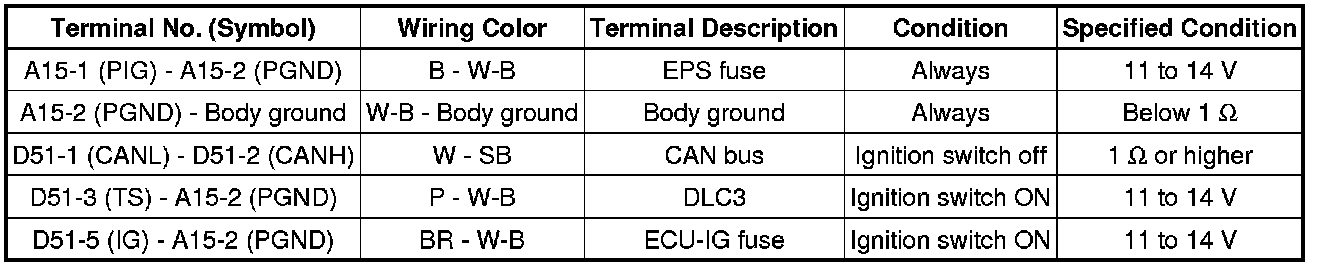

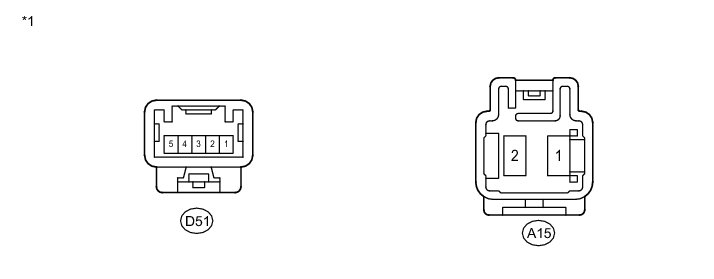

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: TERMINALS OF ECU
