Home >> Scion >> 2012 >> iQ L4-1.3L (1NR-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Service and Repair >> Removal and Replacement >> Starter (Except Cold Area) >> Components

Components

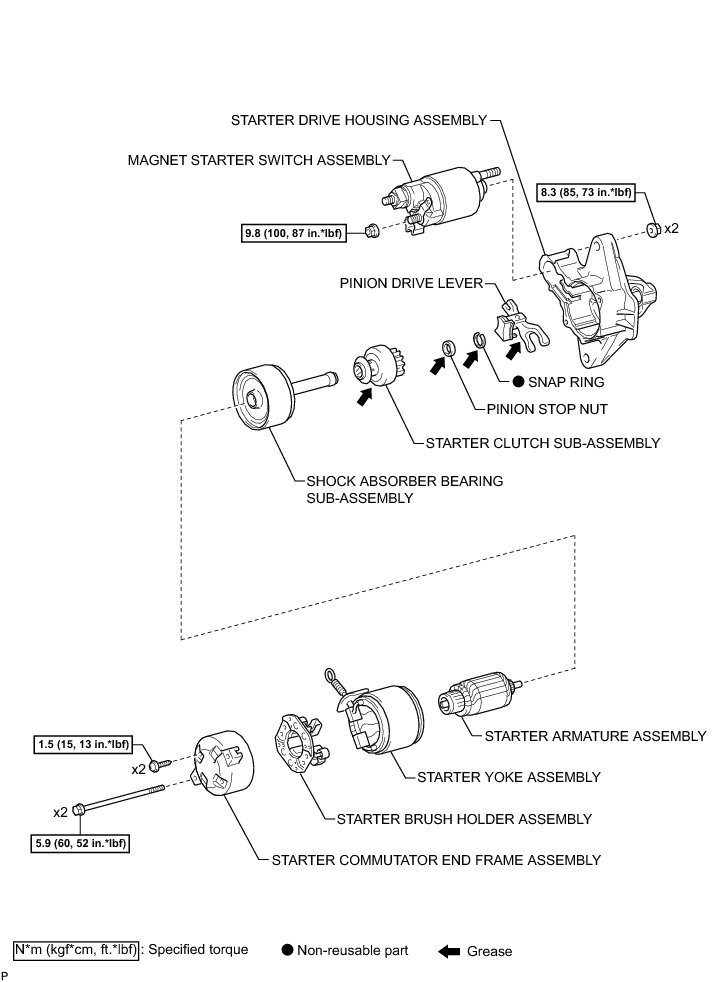

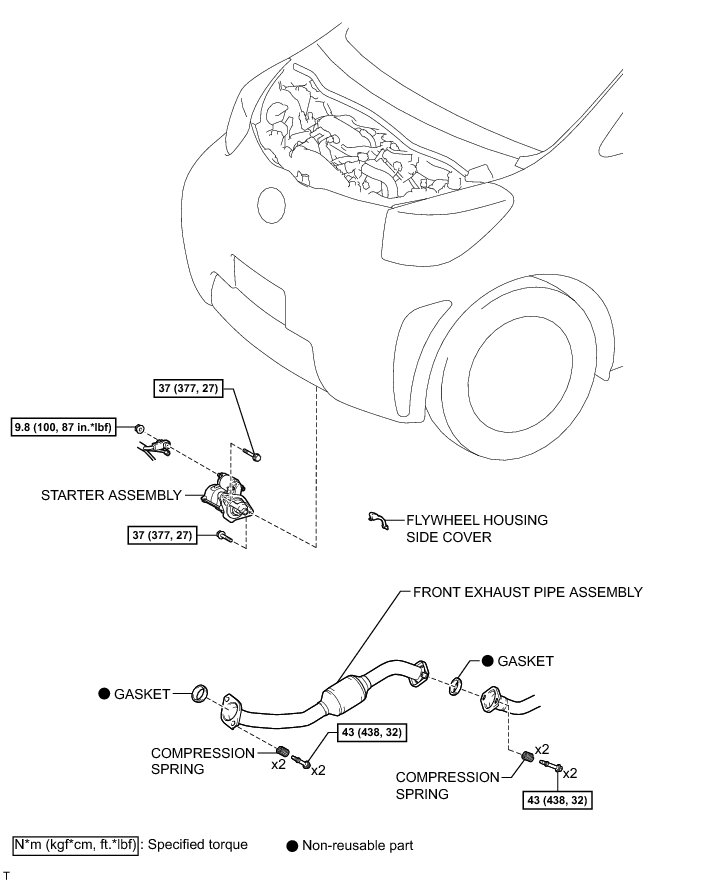

1NR-FE STARTING: STARTER (except Cold Area): COMPONENTS
