Home >> Scion >> 2012 >> iQ L4-1.3L (1NR-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Description and Operation

Starting System: Description and Operation

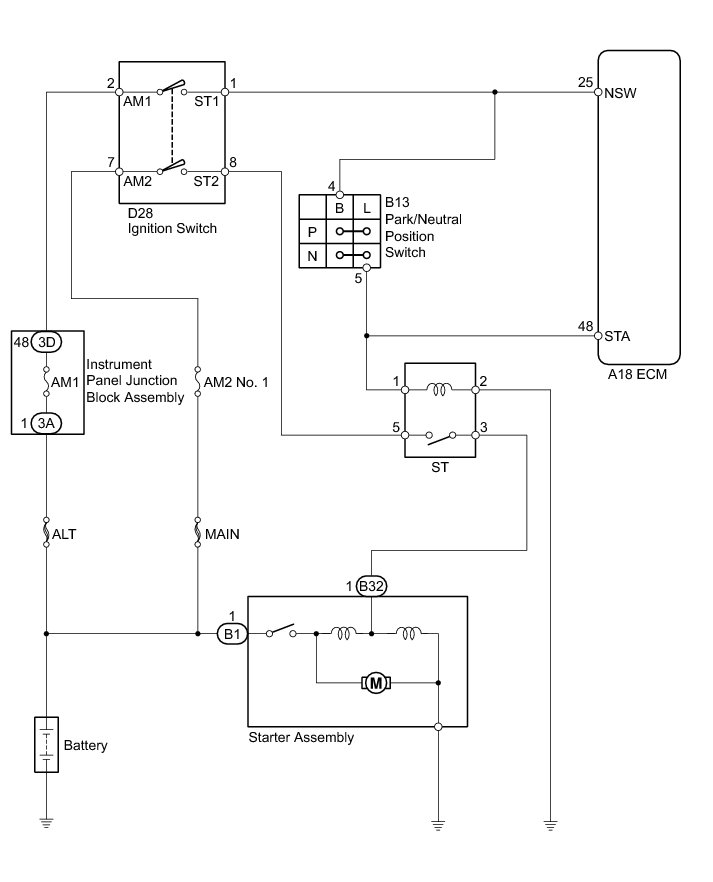

1NR-FE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM
