FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Scion
>>
2012
>>
iQ L4-1.3L (1NR-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Exhaust System
>>
System Specifications
>>
Torque Specifications
Torque Specifications

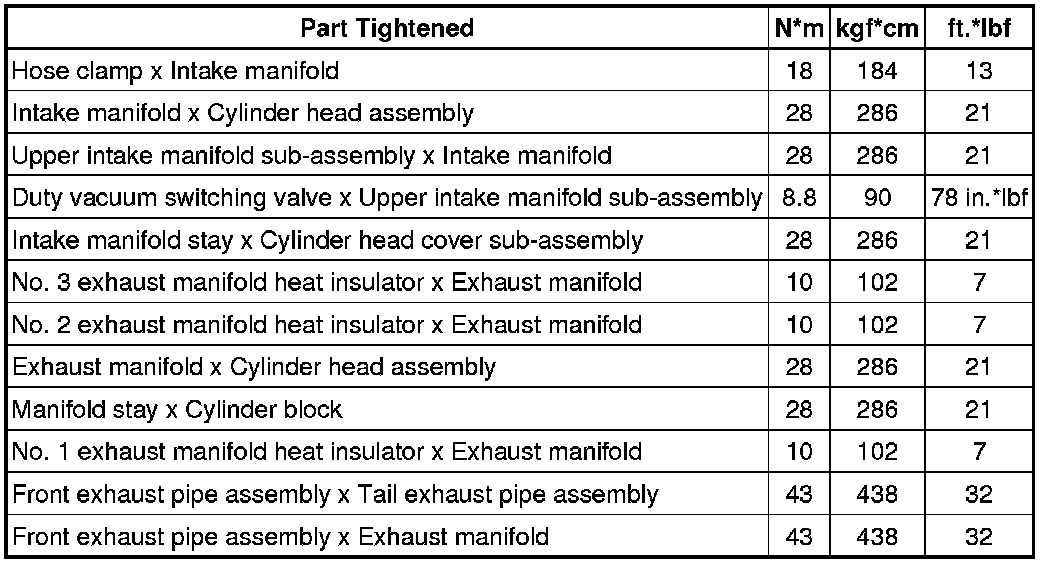

SPECIFICATIONS: 1NR-FE INTAKE / EXHAUST: TORQUE SPECIFICATIONS
