Service Data

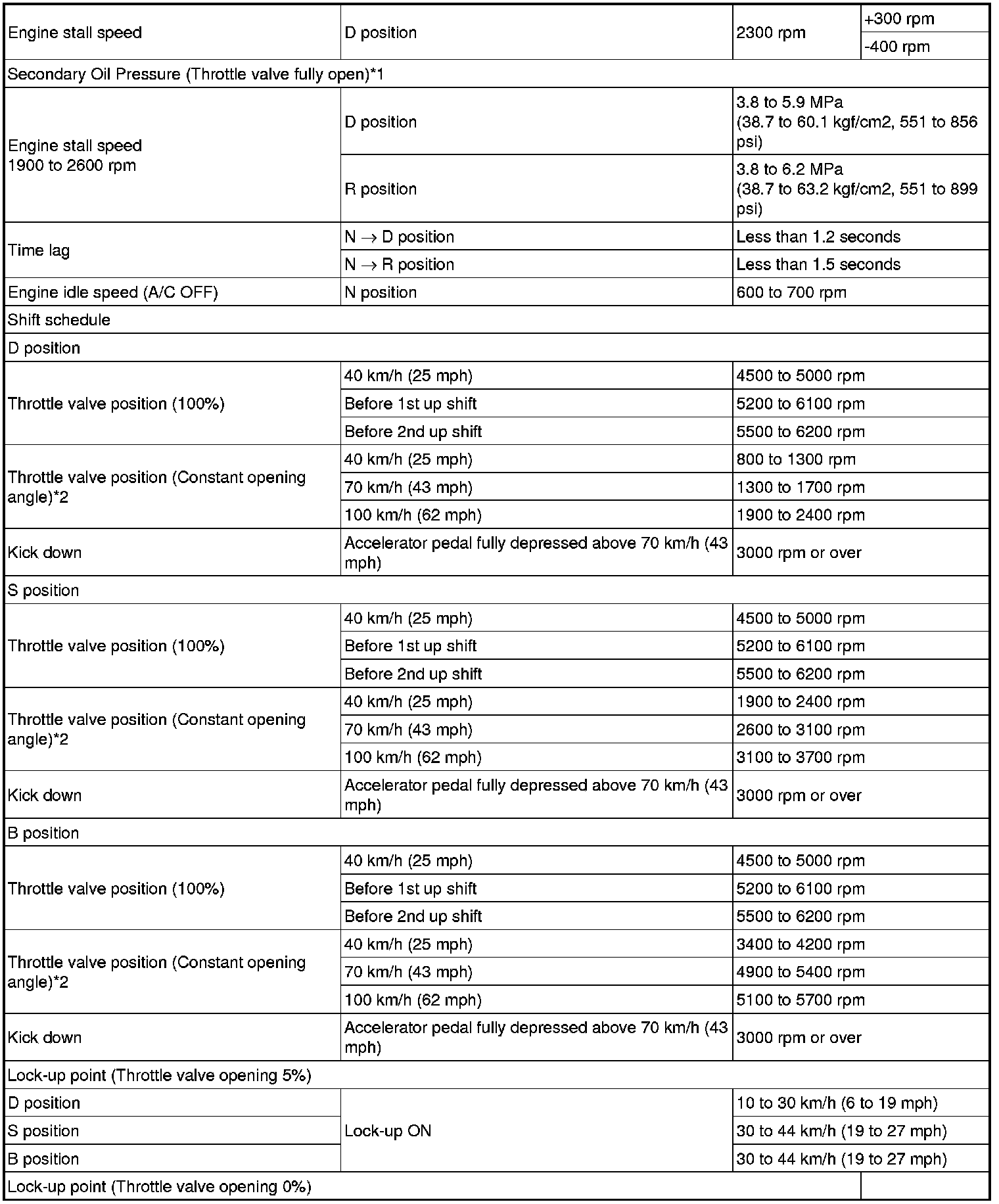

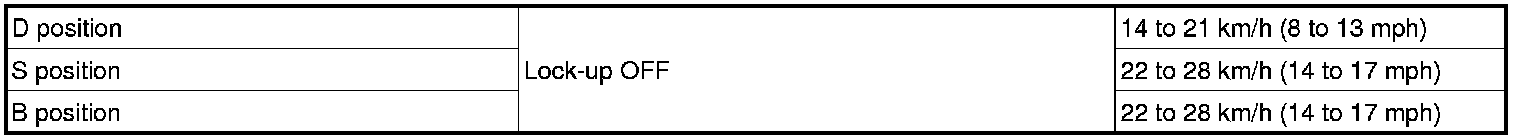

SPECIFICATIONS: K41B CVT: SERVICE DATA
*1: Connect terminals 13 (TC) and 4 (GC) of the DLC3 when measuring the fluid pressure.
*2: Depress the accelerator pedal at a consistent angle to maintain the specified vehicle speed.
SPECIFICATIONS: K41B CVT: SERVICE DATA
*1: Connect terminals 13 (TC) and 4 (GC) of the DLC3 when measuring the fluid pressure.
*2: Depress the accelerator pedal at a consistent angle to maintain the specified vehicle speed.
