Home >> Scion >> 2012 >> iQ L4-1.3L (1NR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Charging System >> Service Data

Service Data

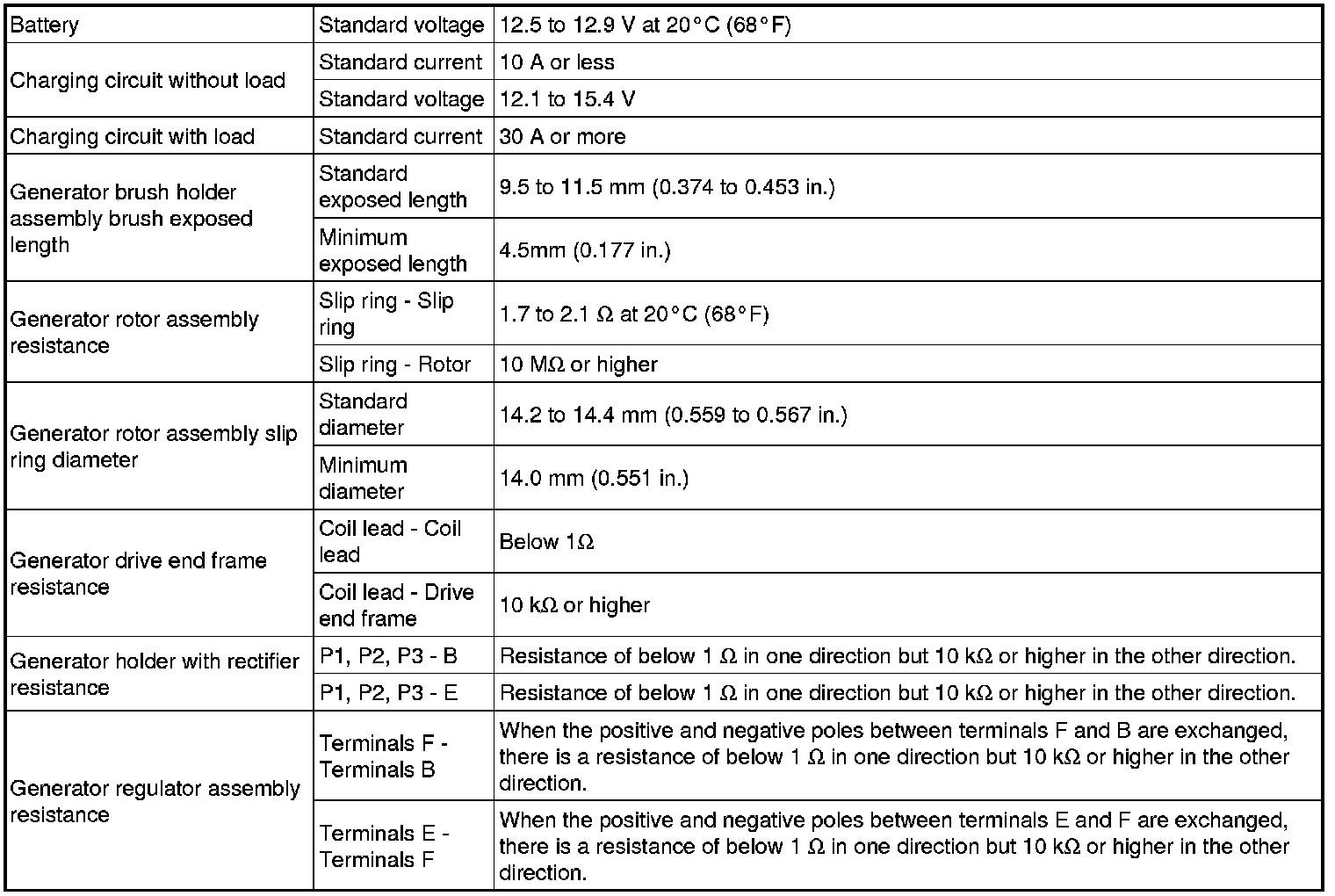

SPECIFICATIONS: 1NR-FE BATTERY / CHARGING: SERVICE DATA

for 80A Type





for 100A Type
