Service Data

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

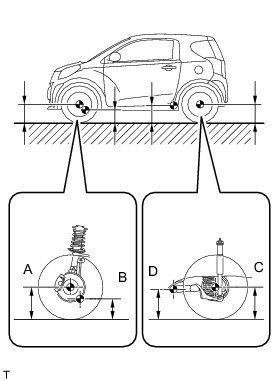

MEASURE VEHICLE HEIGHT





Measuring points:

A
Ground clearance of front wheel center

B
Ground clearance of front lower arm set rear bolt center

C
Ground clearance of rear wheel center

D
Ground clearance of axle beam set bolt center
