Washer Fluid Level Switch: Testing and Inspection

WIPER / WASHER: WASHER LEVEL WARNING SWITCH: INSPECTION

1. INSPECT LEVEL WARNING SWITCH ASSEMBLY

HINT
The following check should be performed with the windshield washer motor and pump installed to the washer jar.

(a) Fill the washer jar with washer fluid.

(b) Measure the resistance according to the value(s) in the table below.











HINT
Pull out the washer hose connected to the washer motor. Perform the inspection while draining the washer fluid.

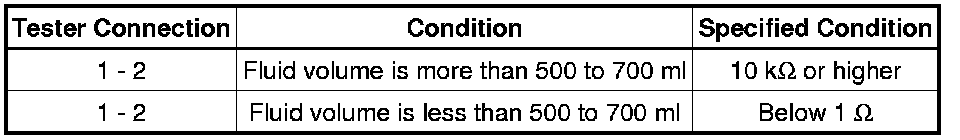

Standard Resistance:





If the result is not as specified, replace the level warning switch assembly.
