Key Reminder Switch: Testing and Inspection

DOOR LOCK: UNLOCK WARNING SWITCH: INSPECTION

1. INSPECT UN-LOCK WARNING SWITCH ASSEMBLY

(a) Check the resistance.

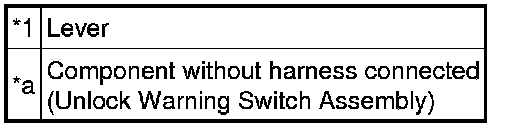

Text in Illustration





(1) Measure the resistance according to the value(s) in the table below.

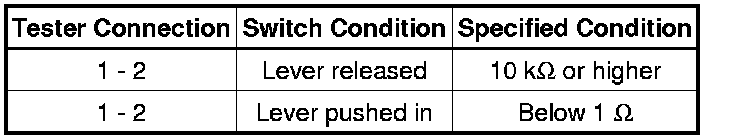

Standard Resistance:





If the result is not as specified, replace the unlock warning switch.
