Fuel Gauge Sender: Testing and Inspection

1NR-FE FUEL: FUEL SENDER GAUGE ASSEMBLY: INSPECTION

1. INSPECT FUEL SENDER GAUGE ASSEMBLY

(a) Check the fuel sender gauge operation.





(1) Check that the float moves smoothly between the F level (upper end) and E level (lower end).

Text in Illustration





OK:

The float moves smoothly.

(b) Check the fuel sender gauge resistance.





Text in Illustration

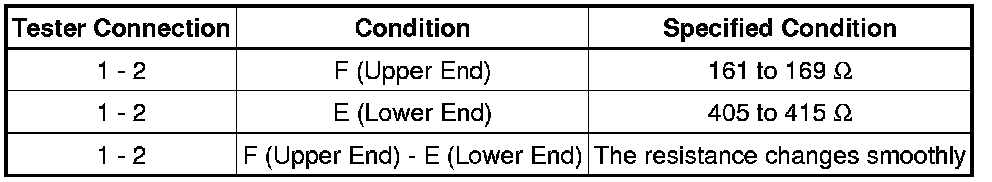

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the fuel sender gauge assembly.
