Removal

AUDIO / VIDEO: STEERING PAD SWITCH: REMOVAL

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

1. PRECAUTION

NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

3. REMOVE STEERING PAD ASSEMBLY Removal

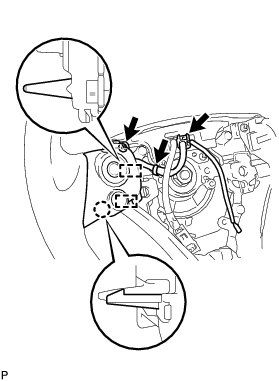

4. REMOVE STEERING PAD SWITCH LH

(a) Disconnect the connector.





(b) Disconnect the wire harness.

(c) Remove the screw.

(d) Disengage the claw and the 2 pins.

(e) Remove the steering pad switch LH.
