SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION SYSTEM: FAIL-SAFE CHART

1. FAIL SAFE FUNCTION

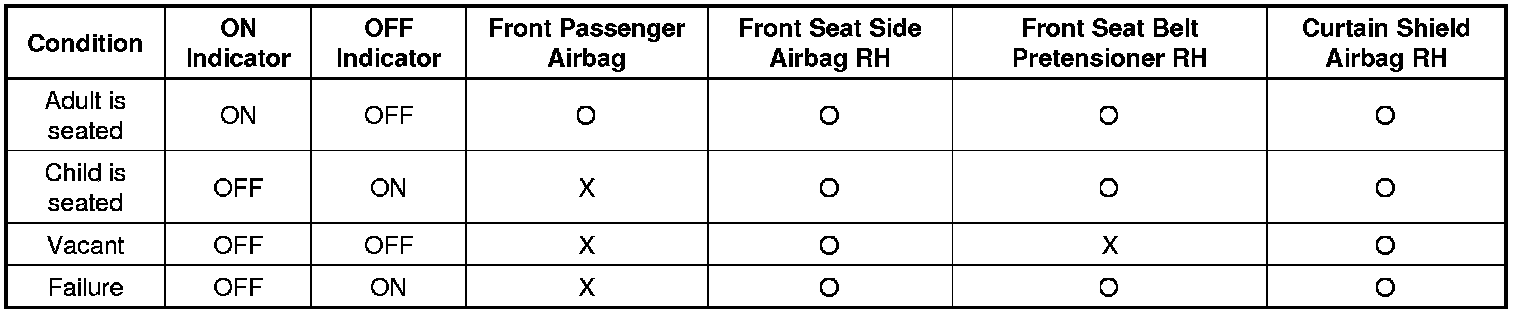

(a) The following chart shows the status of the controls when the system is normal and malfunctioning.

* The passenger airbag ON/OFF indicator ("ON" and "OFF") comes on for approximately 4 seconds, then turns off for approximately 2 seconds.

* Approximately 6 seconds after the ignition switch is turned to ON, the passenger airbag ON/OFF indicator will be ON/OFF depending on the conditions listed below.





HINT
o: Deployable

X: Not deployable
